API 5500 Anniversary Edition Dual Equaliser

To commemorate API’s 55th year in the audio industry, API announces the release of the API 5500 Anniversary Edition.

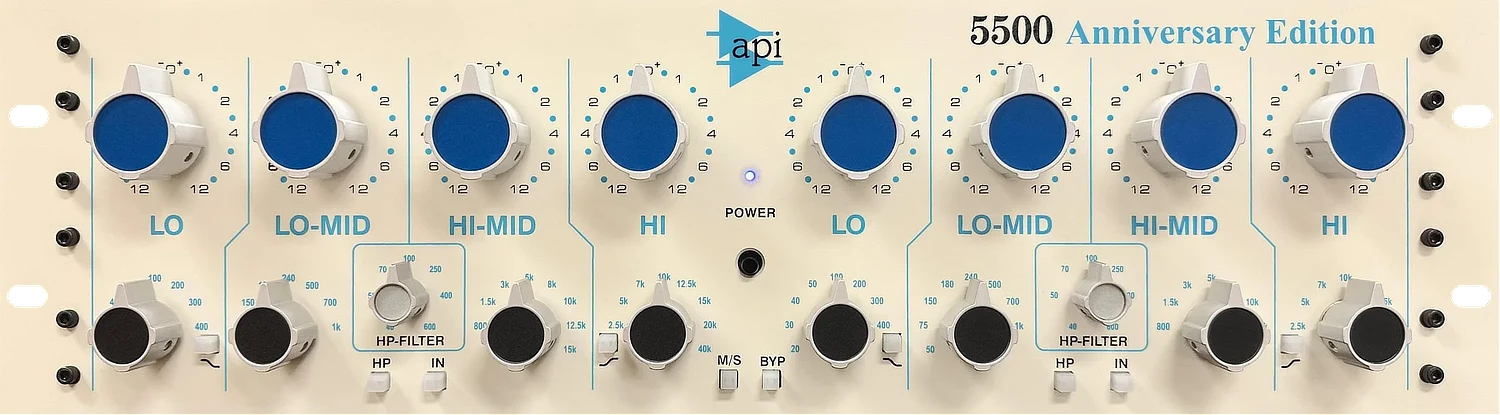

API 5500 Anniversary Edition Dual Equaliser

Based on the best-selling API 5500 Dual Equalizer, the new 5500 Anniversary Edition retains all the sonic and functional characteristics of the standard production 5500 while adding additional design parameters and a commemorative vintage look. The API 5500 Anniversary Edition is limited to just 55 production units and features the following:

  • Vintage Look with Classic API Sound
    3U rackmount chassis featuring a vintage-style cream color worn by numerous iconic API consoles, including the highly successful 1608-II Special Edition Consoles released last year.
  • Expanded Frequency Range
    20Hz on the LO and 50Hz on the LO-MID, and on the high side on the two Hi bands, 15KHZ on the HI-MID and 40KHz on the HI band.
  • Variable High Pass Filter
    Adjustable from 40 to 600 Hz on each channel – this is the same HP filter from the input module on the AXS and Vision consoles.
  • Mid/Side
    Mid/Side decoding circuit to allow for separate EQ control of the separated Mid and Side signals, then recombined at the output.



“We’re honored to have been a part of the audio and recording community for the past 55 years,” API President Larry Droppa noted. “The API 5500 Anniversary Edition reflects the success of the 5500 Dual Equalizer, and of the entire API brand. We’re very grateful for the ongoing recognition of the API 5500 and believe this limited production unit helps display the pride API takes in the rich history and craftsmanship of all of our products.”

Specifications

  • Rear Connectors: XLR Input and Output
  • Input Impedance: 20K Ohms, Balanced
  • Output Impedance: 75 Ohms, Transformer Coupled, Balanced
  • Maximum Input Level: +32 dBu
  • Maximum Output Level: +32 dBu
  • Frequency Response: +/- 0.5 dB from 20Hz to 50KHz
  • Signal to Noise Ratio: -105 dB
  • DC Power Draw: +/-16V: 150mA, +24V: 40mA to 100mA Max
  • Power Requirement: 20 Watts
  • Size: 19″ X 5.25″ (3U) X 11.25″ deep
  • Weight: 16 lbs.
  • Filter Frequency Centers:
    • LO 20, 30, 40, 50, 100, 200, 300, 400 Hz
    • LO-MID 50, 75, 150, 180, 240, 500, 700, 1K Hz
    • HI-MID 800, 1.5K, 3K, 5K, 8K, 10K, 12.5K, 15K Hz
    • HI 2.5K, 5K, 7K, 10K, 12.5K, 15K, 20K, 40K Hz
  • Filter Boost/Cut Steps: +/- 0.5, 1, 1.5, 2, 3, 4, 5, 6, 9, 12 dB
  • Hi-Pass Filter Range: 40 to 600 Hz, variable
  • Hi-Pass Filter Sloop: 12 dB per Octave

User Manual

Download the User Manual in PDF format.

Ordering

SKU API5500AE Categories , Tag

$6,990 Inc GST
