Audio-Technica’s top studio vocal mic, the Audio-Technica AT5040, delivers exceptional high-fidelity performance, with rich, lifelike sound. It’s perfect for vocals and excels with instruments like piano, guitar, strings, and sax.
Audio-Technica’s premier studio vocal microphone, the Audio-Technica AT5040 represents a milestone in condenser design, offering remarkably musical high-fidelity performance, with profound realism and depth, presence and purity of sound. Designed as a first-choice vocal microphone, the AT5040 cardioid condenser features an extremely smooth top end with controlled sibilance. Large-diaphragm characteristics and fast transient response also make it ideal for recording acoustic instruments such as piano, guitar, strings and saxophone.

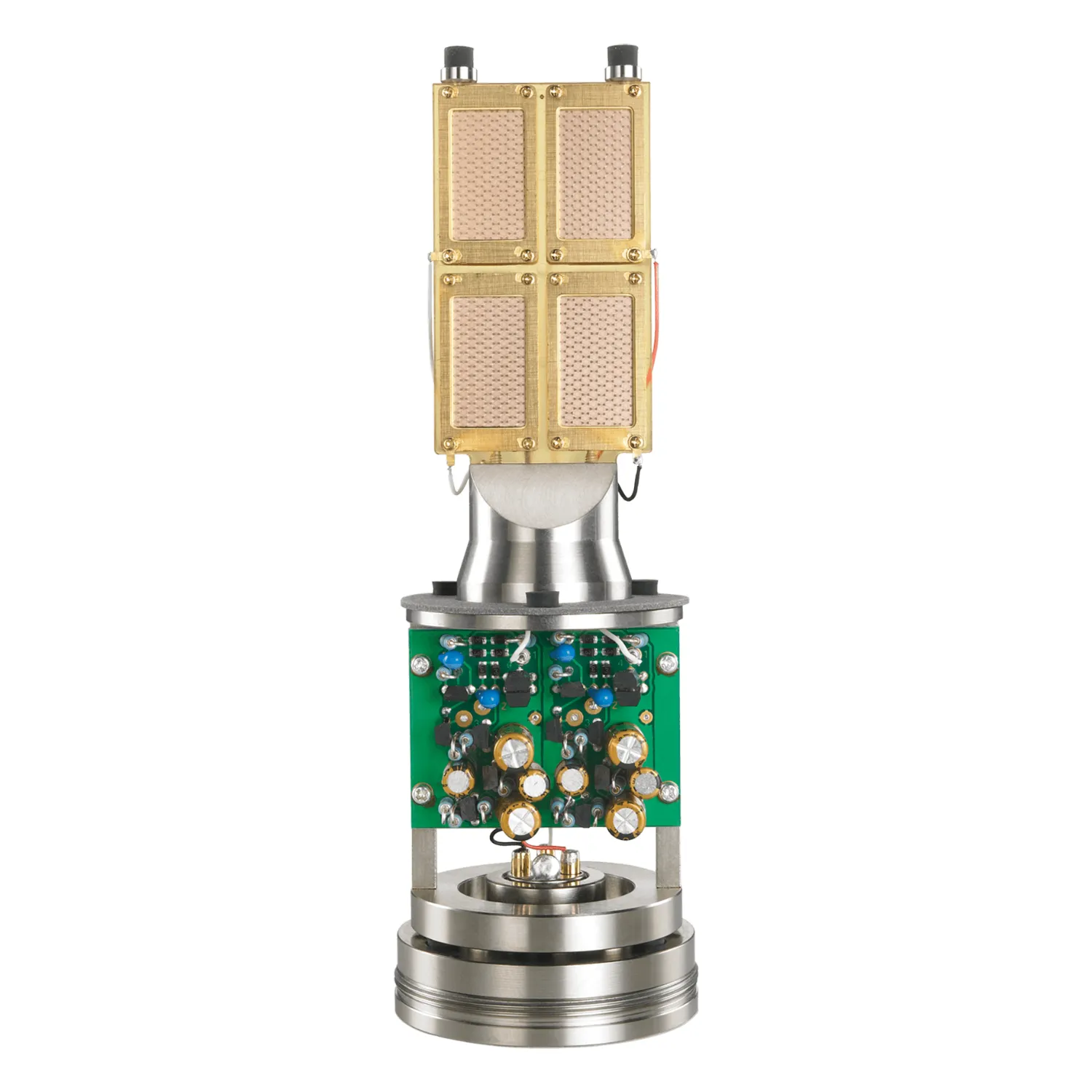

The first of our design criteria for the Audio-Technica AT5040 was purity of sound. To achieve this, Audio-Technica engineers developed a four-part rectangular element, the pinnacle of our recent breakthroughs in sound-capture technology. Four exquisitely matched ultra-thin diaphragms function together (with outputs proprietarily summed) as Audio-Technica’s largest-ever element, providing combined surface area twice that of a standard one-inch circular diaphragm.

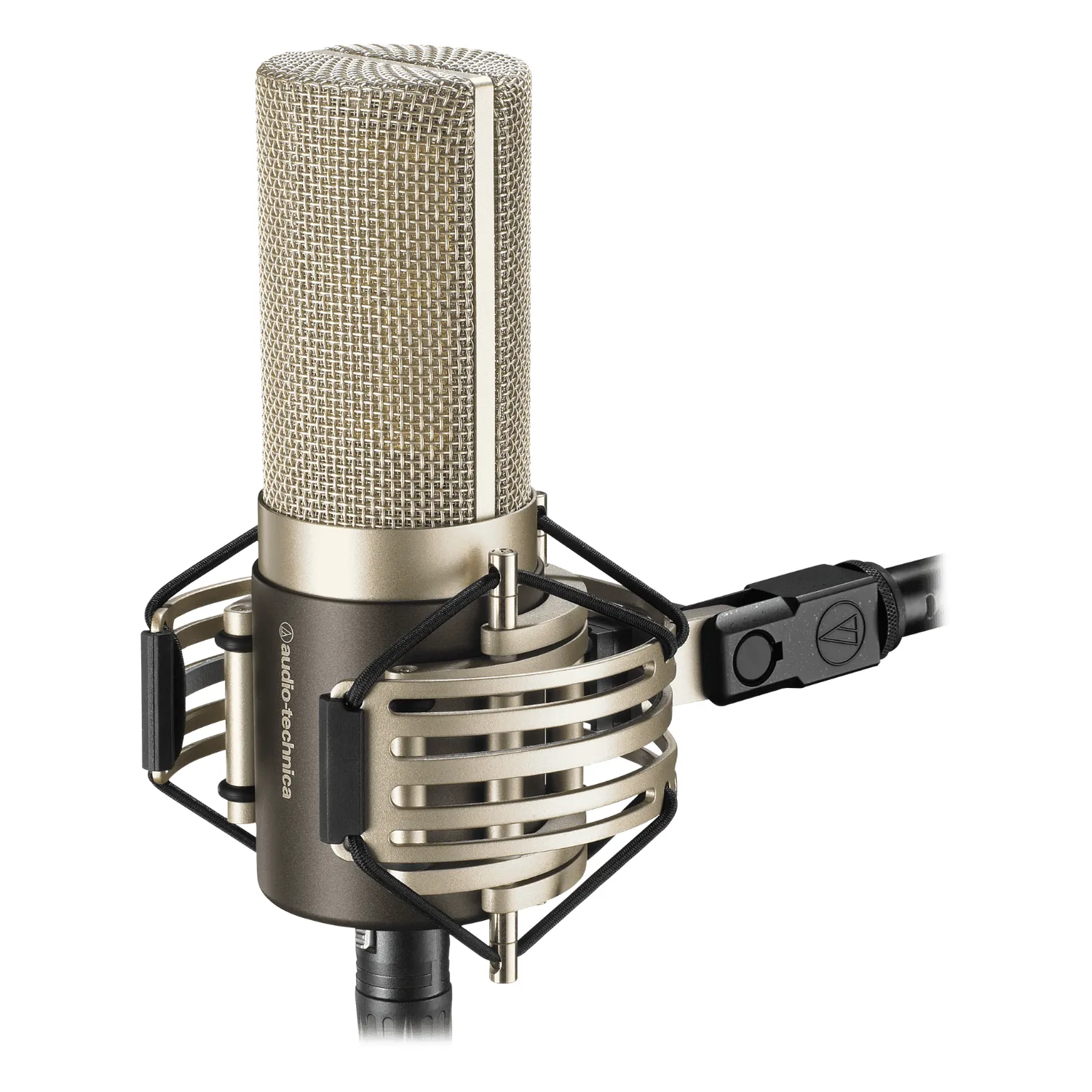

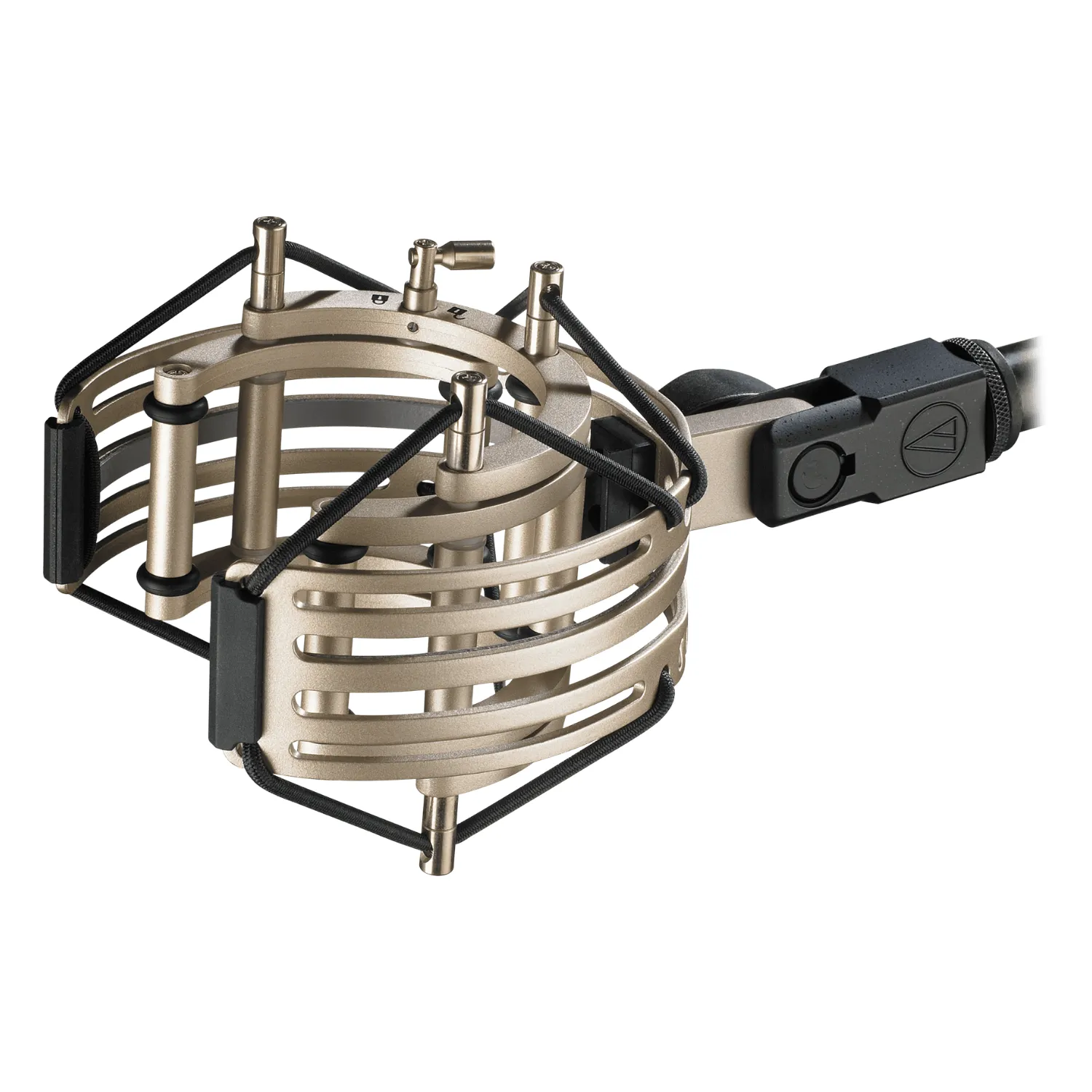

By using four diaphragms in a single capsule, the Audio-Technica AT5040 delivers the benefits of an exceptionally large diaphragm–along with an extremely low noise floor–without increased weight, decreased transient response or other drawbacks that typically restrict diaphragm size. Another key Audio-Technica AT5040 design feature is advanced internal shock mounting that effectively decouples the capsule from the microphone body. For additional isolation, each Audio-Technica AT5040 is also provided with Audio-Technica’s innovative new AT8480 shock mount.
Every Audio-Technica AT5040 is hand assembled and individually inspected for 100% quality control. Each studio microphone is enclosed in an elegant housing of aluminum and brass with high-quality gray finish for durability and low reflectivity. Discrete components have been selected for optimized capsule performance; in fact, every aspect of the microphone has been carefully considered to minimize any effects on the audio signal.
Features
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20 – 20,000 Hz
Open Circuit Sensitivity -25 dB (56.2 mV) re 1V at 1 Pa*
Maximum Input Sound Level 142 dB SPL, 1 kHz at 1% T.H.D.
Noise 5 dB SPL
Dynamic Range 137 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 89 dB, 1 kHz at 1 Pa*
Phantom Power Requirements 48V DC, 3.8 mA typical
Weight 582g
Dimensions 165.3 mm (6.51”) long, 57.0 mm (2.24”) maximum body diameter

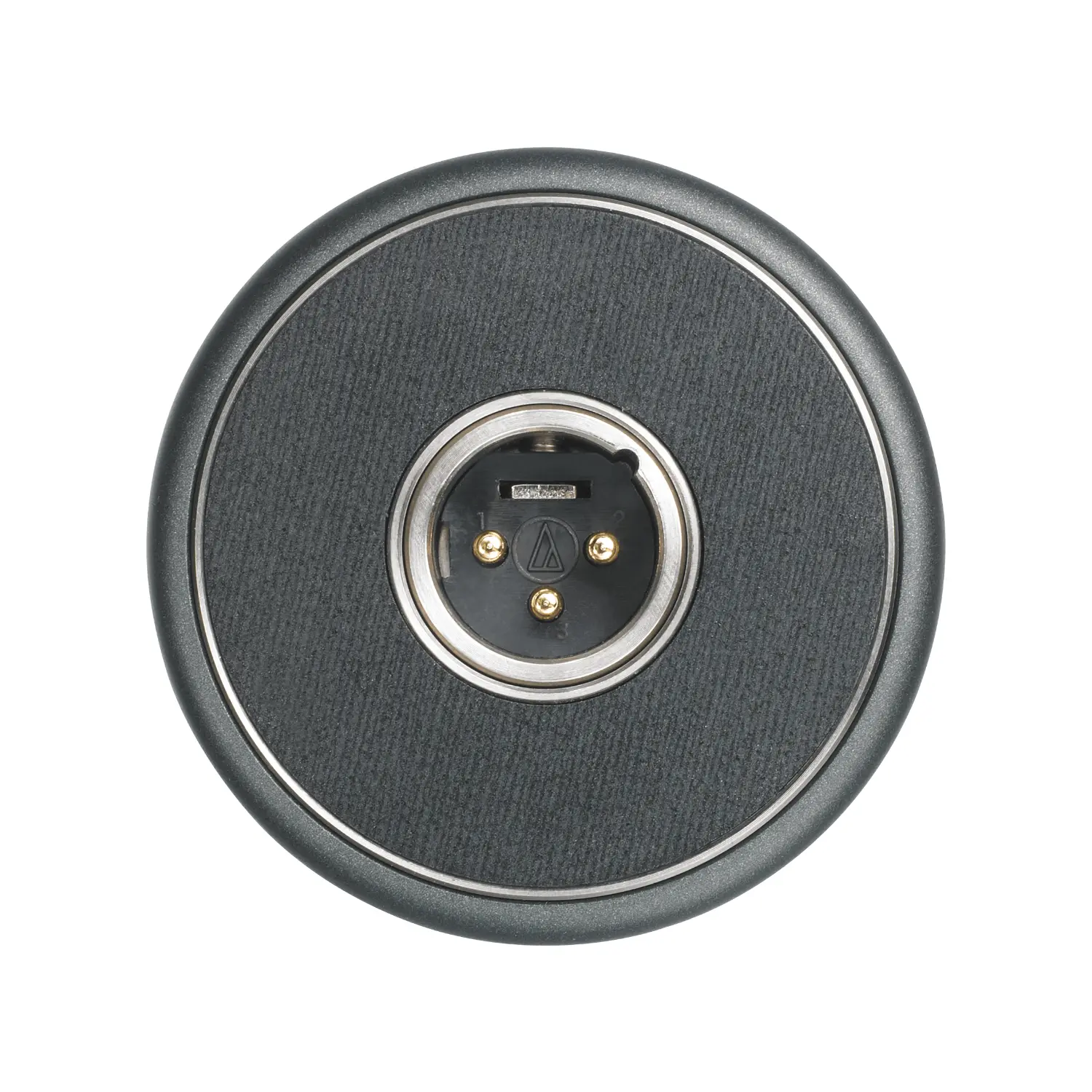

Output Connector Integral 3-pin XLRM-type

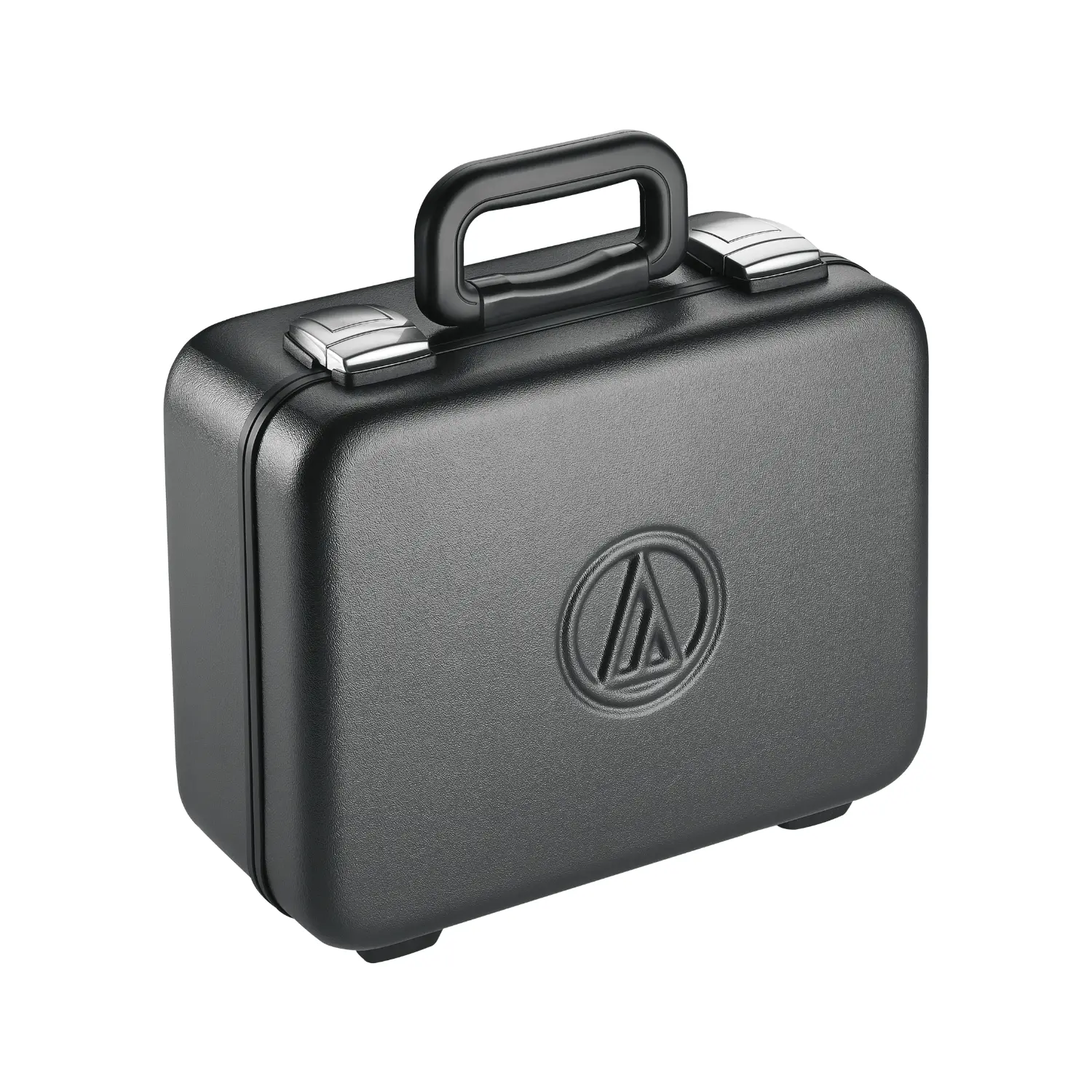

Accessories Included AT8480 shock mount for 5/8″-27 threaded stands; protective carrying case
$4,399 Original price was: $4,399.$3,799Current price is: $3,799. Inc GST
