Autex Cube Panel 24mm

Autex Cube Panel 24mm

Unlock boundless creativity with Autex Cube Panel 24mm acoustic solutions, breaking free from conventional restraints to redefine interior design possibilities. Crafted from 100% polyester fibre, these panels transcend the ordinary, serving as versatile canvases for your imagination.

Engineered to diminish noise and tame reverberations within indoor spaces, Autex Cube Panel 24mm boasts an impressive NRC rating of 0.45, making it ideal for wall installations and beyond, including acoustic pinboards. Utilize them indoors easily, effortlessly customizing their dimensions with a track saw and TensorGrip F31 adhesive for optimal results.

Embrace the design flexibility of Autex Cube Panel 24mm, lightweight yet semi-rigid panels with inherent sound-absorbing qualities. With a consistent colour throughout, these panels seamlessly integrate into diverse spatial designs and interior solutions.

Far beyond mere acoustic fixtures, the 24mm Cube Panel serves as a cornerstone for inventive design solutions where aesthetics take centre stage. Offered in 12mm and 24mm thicknesses, these panels eliminate the need for additional edging or capping, providing unparalleled application flexibility.

Tailor Autex Cube Panel 24mm to your unique vision. As pioneers in creativity, we recognize your quest for the extraordinary, the distinct, and the daring. Each space you conceive deserves bespoke elements, from floor to ceiling. Our customization options, including Print, Etch™, Groove, Precision Cut, Mould and Press, and Peel ‘n’ Stick, empower you to unleash your imagination fully. Explore the uncharted territories of design with Autex Cube Panel 24mm.

Autex Cube Panel 24mm Acoustic Performance

Autex Cube Panel 24mm is specifically designed to reduce and control reverberated and echo noise in building interiors.

Absorption Coefficient According to ISO 354 University of Auckland Testing Service

  • Cube (12mm) – Test No. T0712-3
  • Cube (12mm with 25 mm air gap) – Test No. T0712-6
  • Cube (24mm) – Test No. T1961-1
  • Cube (24mm with 25 mm air gap) – Test No. T1326-2

Autex Cube Panel 24mm Applications

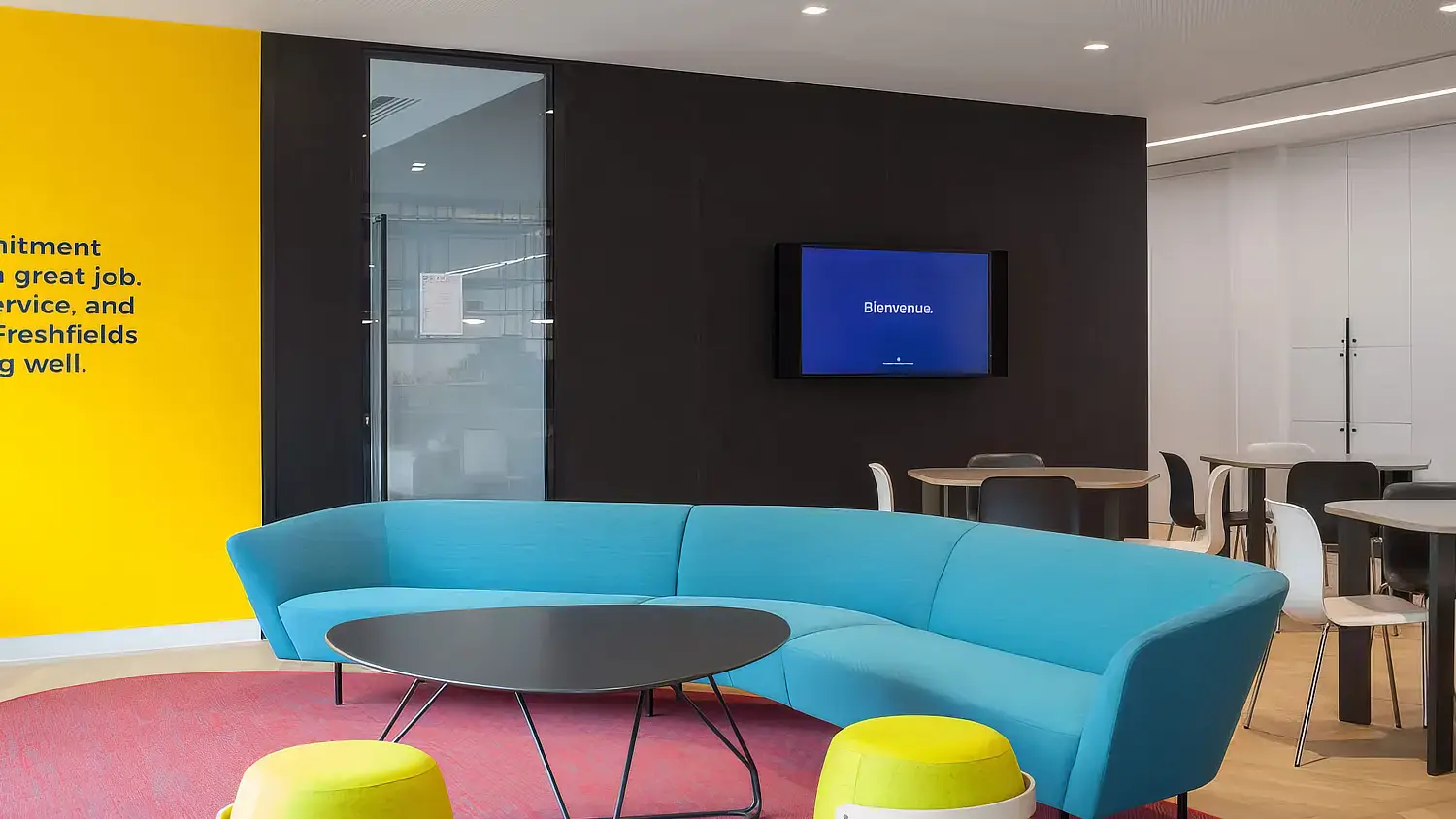

  • Decorative and functional acoustic wall covering for education, retail and commercial interiors
  • Media for creative solutions
  • Acoustic pinboard surface for education and commercial sectors
  • Modular room divider for display, privacy and sound absorption

Terms of Sale

  1. I understand that there are no refunds or exchanges for this product.
  2. I accept the manufacturing and freight lead time when placing an order for this product.
  3. I understand that the colours on my screen may not match the actual product.
  4. I understand this product may have a MOQ and will order no less than the MOQ.

Autex Cube Panel 24mm Colour Options

Cube Acros
Acros
Cube Beehive
Beehive
Cube Canyon
Canyon
Cube Caspian
Caspian
Cube Cavalier
Cavalier
Cube Empire
Empire
Cube Falling Water
Falling Water
Cube Flatiron
Flatiron
Cube Gherkin
Gherkin
Cube Herald
Herald
Cube Highland
Highland
Cube Muralla
Muralla
Cube Opera
Opera
Cube Parthenon
Parthenon
Cube Pavilion
Pavilion
Cube Petronas
Petronas
Cube Pinnacle
Pinnacle
Cube Sargazo
Sargazo
Cube Savoye
Savoye

Disclaimer: The colors displayed on this website have been provided by Autex for reference purposes only. Please note that these colors are intended as a guide and may not accurately represent the true color. For a more precise depiction of color, we recommend requesting a color swatch.

Specifications

SKU AUTEX-CUBE-24MM Categories ,
  • Wall) treatment shall be CubeTM from thermally bonded high density polyester containing not less than 60% recycled material as manufactured by Autex www.autexglobal.com
  • Panel 1220 x 2440 x (_)mm (nom.) depth, colour (_), sound absorption 12 mm: Class D, NRC 0.45 – with 24 mm air gap: Class C, NRC 0.70. 24 mm: Class D, NRC 0.70– with 24 mm air gap: Class C, NRC 0.80. Fire rating ASTM E-84-15a: Class A, FS:0 – SD:45, ISO 9705: Classification: Group 1-S, AS ISO 9705 – 2003 Classification: Group 1, BS EN 13501-1:2018: B – s2, d0.
  • If Cube is to be specified for use other than as a wallcovering, please seek guidance from your Ordio Acoustics sales consultant.

Product Documentation

Download Product Documentation

Ordering

  • Product name: CubeTM
  • Composition: 100% polyester fibre
  • Panel dimension: 1220 mm x 2440 mm
  • Tolerance: (+ 5 mm) x (+ 10 mm)
  • Thickness: 12 mm 24 mm
  • Tolerance: (+/- 6%) (+/- 6%)
  • Thermal performance: Cube 12 mm; R0.41 (@15°C) / Cube 24 mm; R0.82 (@15°C)
  • Installation: Install as per Autex Acoustics recommendations. Install instructions are included in each pack or available on the website. If Cube is to be specified for use other than as a wallcovering, please seek guidance from your Ordio Acoustics sales consultant.
Lead Time: 7-10 days
Quantity: MOQ: 3x panels

$521 Inc GST
