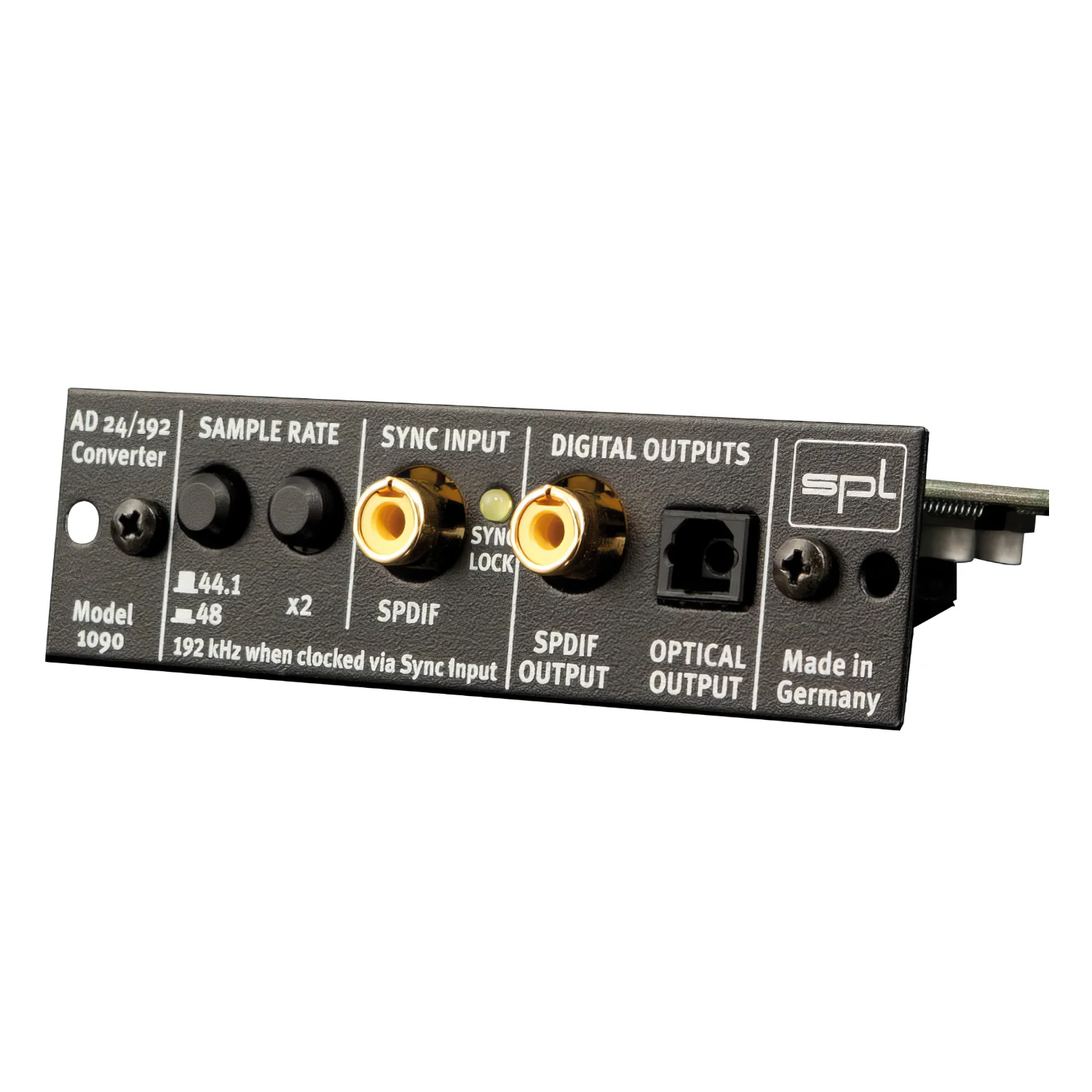

The SPL AD Converter Module is a plug and play analog to digital 24 bit converter module offers an optional digital output for compatible SPL units.
The SPL AD Converter Module offers an SPDIF output with both coaxial and optical connectors. The module sports a 24-bit converter and supports sample rates up to 192 kHz. Highly accurate quartz oscillators ensure a clean, low-jitter master clock.
The internal sample rate can be switched between 44.1, 48, 88.2 and 96 kHz. Other sample rates (32, 176,4 and 192 kHz) are set by external syncronization. The converter can be synced to other digital devices via a SPDIF input. The internal oscillators are automatically disabled when an external clock signal is present to prevent interference.
Pre-Installed
Units with optional features are usually built to order (BTO). Please ask your dealer for a BTO unit even if converter-equipped units are not offered (for example in an online store). If you or the dealer have any questions, let us know.
Re-Install
The SPL AD Converter Module can also be reinstalled after purchase by technically skilled personal or qualified technicians. Read and follow all security and mounting instructions in the manual (see below)
Internal PCM sample rates 44.1/48/88.2/96 kHz
Coaxial SPDIF (RCA), PCM sample rates 44.1/48/88.2/96 & with ext sync 176.4/192 kHz
Optical SPDIF (Toslink F06), PCM sample rates 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
0 dBFS calibrated to 15 dBu
Frequency range (48 kHz) 10 Hz – 22 kHz
THD + N (-1 dBFS, 1 kHz) 0.0007 %
Jitter (Average, 700 Hz – 100 kHz) < 300 ps
Stop band attention (48 kHz) -105 dBu
Stop band attention (96 kHz) -102 dBu
Dynamic range (A-weighted) -112 dB
Download the User Manual in PDF format.
Original price was: $469.$399Current price is: $399. Inc GST
