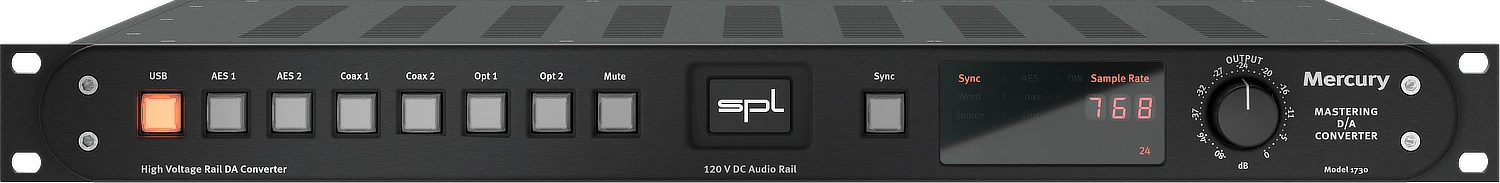

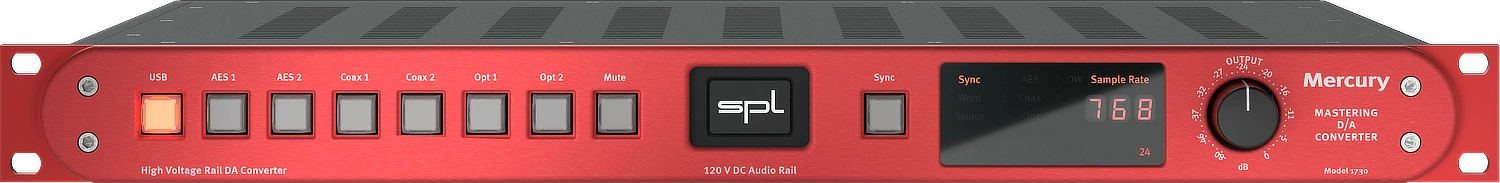

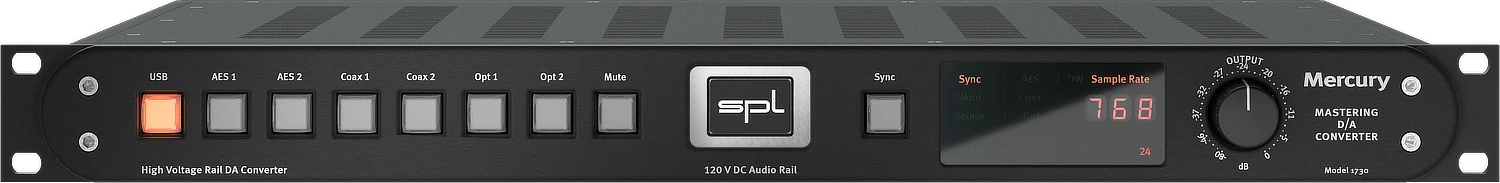

SPL Mercury Mastering D/A Converter

SPL Mercury: the inaugural 120V mastering DA-converter. With seven digital stereo inputs, all syncable either amongst themselves or to a word clock. And don’t overlook the adjustable output that turns Mercury into a monitor controller.

The SPL Mercury Mastering D/A Converter is available to audition in our showrooms.

SPL Mercury Mastering D/A Converter

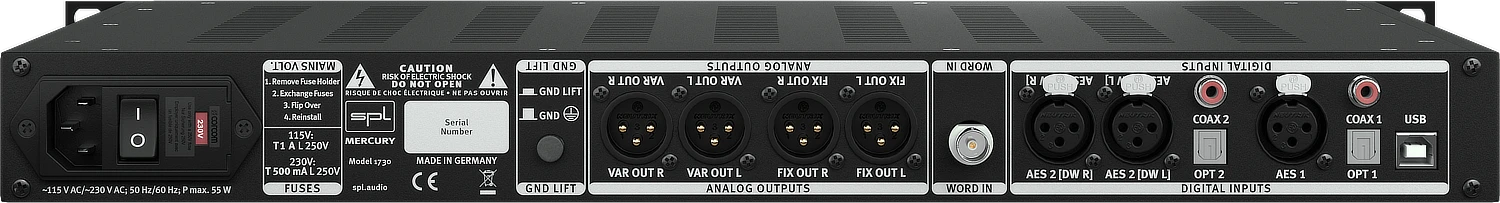

SPL Mercury provides connections for a total of seven digital stereo input sources. For each digital source there is a dedicated and illuminated tactile switch for quick selection and quick comparison. The detected sample rate is shown in the display. One USB input and two coaxial, two optical and two AES/EBU inputs are available. AES input 2 also supports Dual-Wire (DW) mode.

The display shows the synchronization status and the detected sampling rate. Any source except USB can be synchronized to another source or to an external Word Clock. If the sync “Source” is selected in the display, each source uses its own sync code embedded in the signal.

Holding the Sync button for more than two seconds Mercury will change to the 0dBfs display. Mercury offers all reference levels in dBu corresponding to a 0 dBfs (full scale) digital signal: +14, +15, +16, +17, +18, +20, +22 and +24 dBu

The FIX OUT of the SPL Mercury is an analog balanced stereo output which can be calibrated to all common reference levels (see 0 dBfs).

SPL Mercury offers a variable analog balanced stereo output. This output provides the same signal as the FIX OUT, but the level is continuously adjustable. Thus Mercury can also be used as a state-of-the-art monitor controller.

The analog potentiometer is used to control the level of the VAR OUT output. We use the ALPS RK27 “Big Blue” potentiometer with a nice “spoon in honey” feel and excellent channel tracking. So not only the auditory but also the haptic experience of volume control is at the highest level.

The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.

The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.
This high voltage would destroy conventional components and operational amplifiers.

The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.

Specifications

Maximum input & output gain 32.5 dBu
Input impedance 20 kΩ
Output impedance 75 Ω
Common mode rejection -82 dBu
Frequency range (-3 dB) 4 Hz – 300 kHz
Crosstalk (1 kHz) -108 dBu
THD (0 dBu, 1 kHz) 0.000992 %
Noise (A-weighted) -102.5 dBu
Dynamic range 135 dB

User Manual

Download the User Manual in PDF format.

Ordering

SKU SPLMERC Categories , Tag

$5,292 Inc GST
