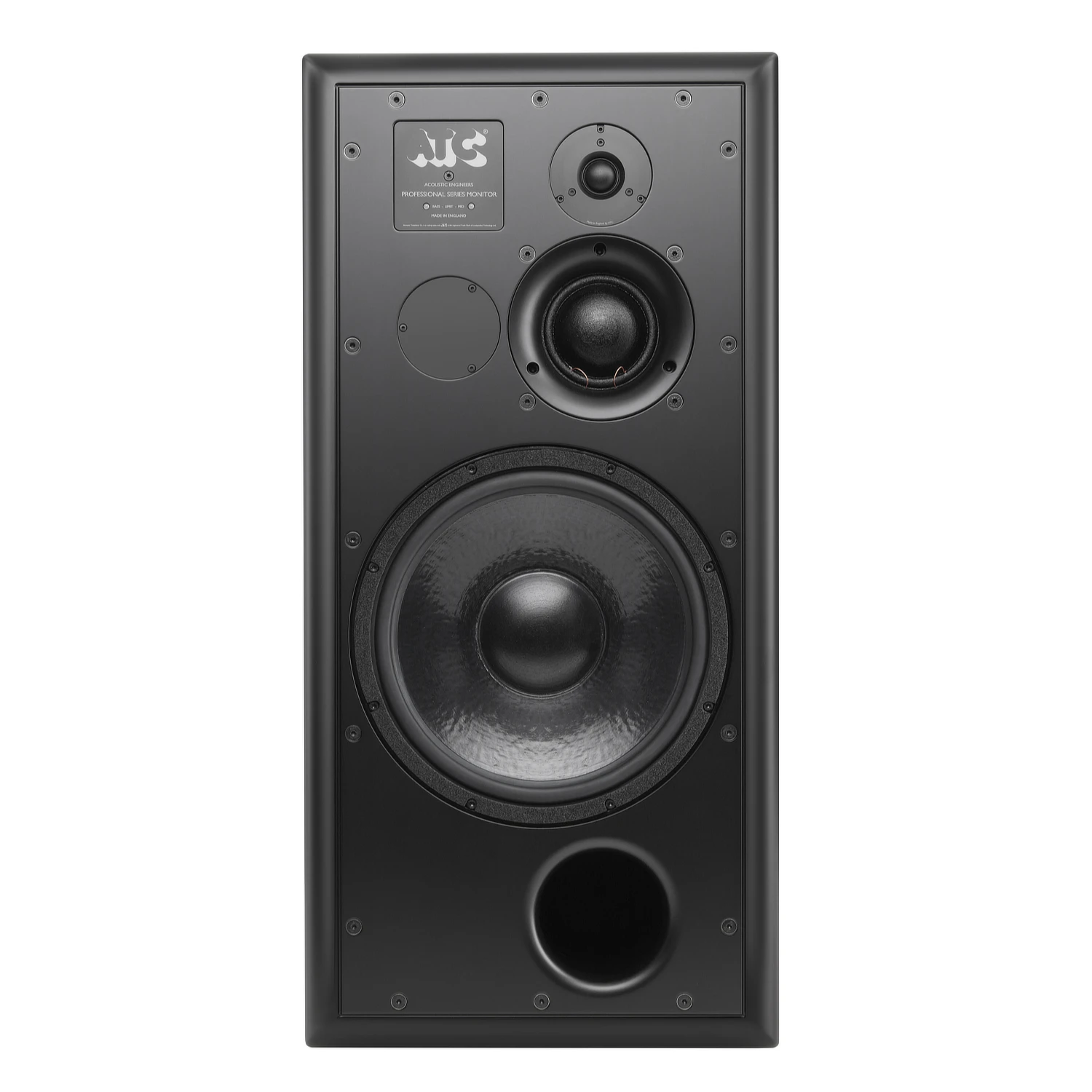

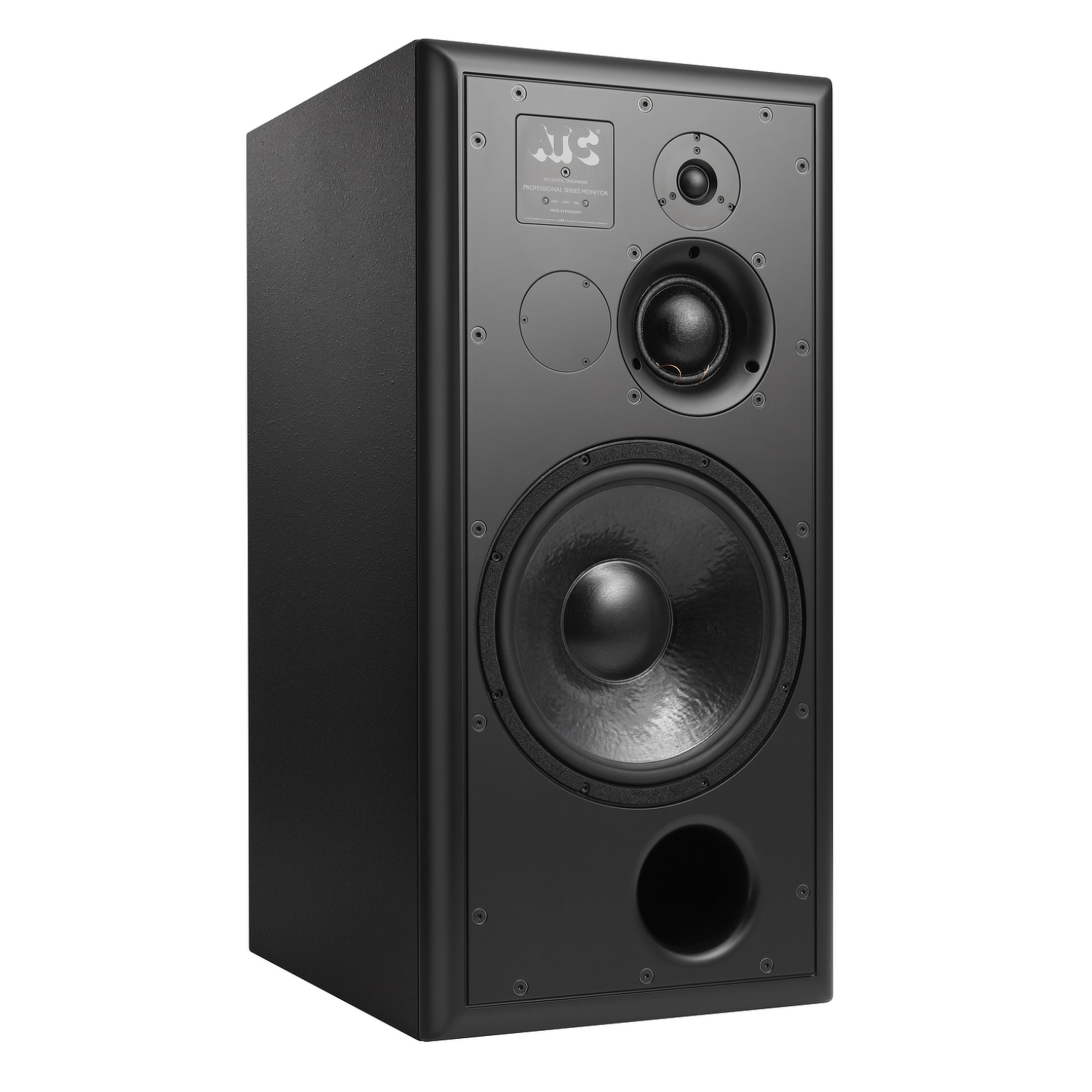

ATC SCM100ASL Pro Studio Monitor

ATC SCM100ASL Pro Studio Monitor is where precision meets power. Equipped with ATC’s 25mm/1” Dual Suspension ‘S-Spec’ Tweeter, full “SL” spec 12˝/314mm bass driver, and ATC 3″/75mm “Super Dome” mid driver. With a grounded source 350W Tri-amp pack, LF contour control, clip indication, and a 6-year warranty.

ATC SCM100ASL Pro Studio Monitor

Introducing the ATC SCM100ASL Pro Studio Monitor, an embodiment of audio precision and innovation that sets a new standard in professional sound reproduction. At its core, the monitor boasts the ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter, a pinnacle of high-frequency accuracy that captures the most delicate nuances with breathtaking clarity. Complementing this is the full “SL” spec 12˝/314mm bass driver, designed to deliver deep, authoritative bass while maintaining impeccable sonic fidelity across the frequency spectrum.

The midrange is entrusted to the ATC 3″/75mm “Super Dome” mid driver, renowned for its ability to convey vocals and instruments with remarkable realism and a captivating presence. Elevating the performance to unprecedented heights, the onboard grounded source 350W Tri-amp pack ensures that each driver receives its dedicated power, resulting in an exceptionally balanced and dynamic sonic presentation.

Fine-tuning your sound has never been easier thanks to the LF contour control, granting you the flexibility to adjust the low-frequency response according to your room’s acoustics and personal preferences. The clip indication feature adds an extra layer of assurance by alerting you when the audio signal approaches its limits, ensuring distortion-free playback even at higher volumes.

For added peace of mind, the ATC SCM100ASL Pro Studio Monitor comes with a 6-year warranty, a testament to its robust construction and the manufacturer’s commitment to quality. Crafted with meticulous attention to detail, these monitors stand as a testament to ATC’s legacy of audio excellence, catering to the needs of audio professionals and enthusiasts who demand nothing less than perfection. Elevate your sound experience and unlock a realm of sonic possibilities with the ATC SCM100ASL Pro Studio Monitor.

Specifications

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm (32.8˝ x 15.7˝ x 22.9˝) Depth with amplifier at rear adds 3˝
Weight: 55.2kg / 122lbs

User Manual

Download the User Manual in PDF format.

Ordering

SKU SCM100ASLP Categories , Tag

$31,199 Inc GST
