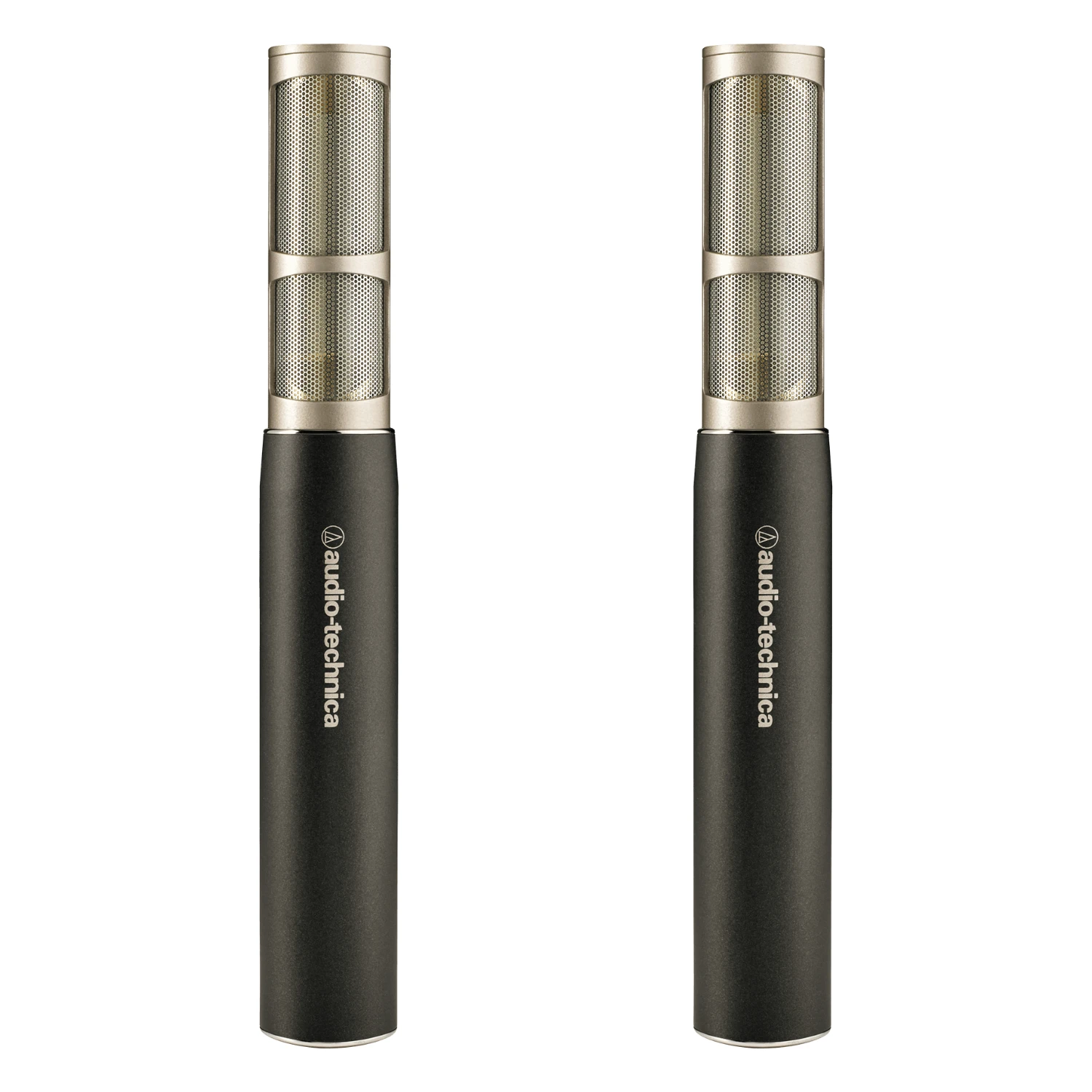

Audio-Technica AT5045P Cardioid Condenser Instrument Microphones

The Audio-Technica AT5045P is two of Audio-Technica’s premier condenser instrument microphones in a stereo pair pack.

Audio-Technica AT5045P Cardioid Condenser Instrument Microphones

Offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body, the AT5045, despite the space limitations imposed by its housing, boasts Audio-Technica’s largest single diaphragm. The instrument microphone’s circuitry has been honed to the essentials, allowing the AT5045 to achieve an unprecedented dynamic range that’s one of the widest of any microphone on the market.

Every Audio-Technica AT5045 is hand assembled and individually inspected for 100% quality control. Each microphone is enclosed in an elegant housing of aluminum and brass with a high-quality gray finish for durability and low reflectivity. Discrete components have been selected for optimized performance.

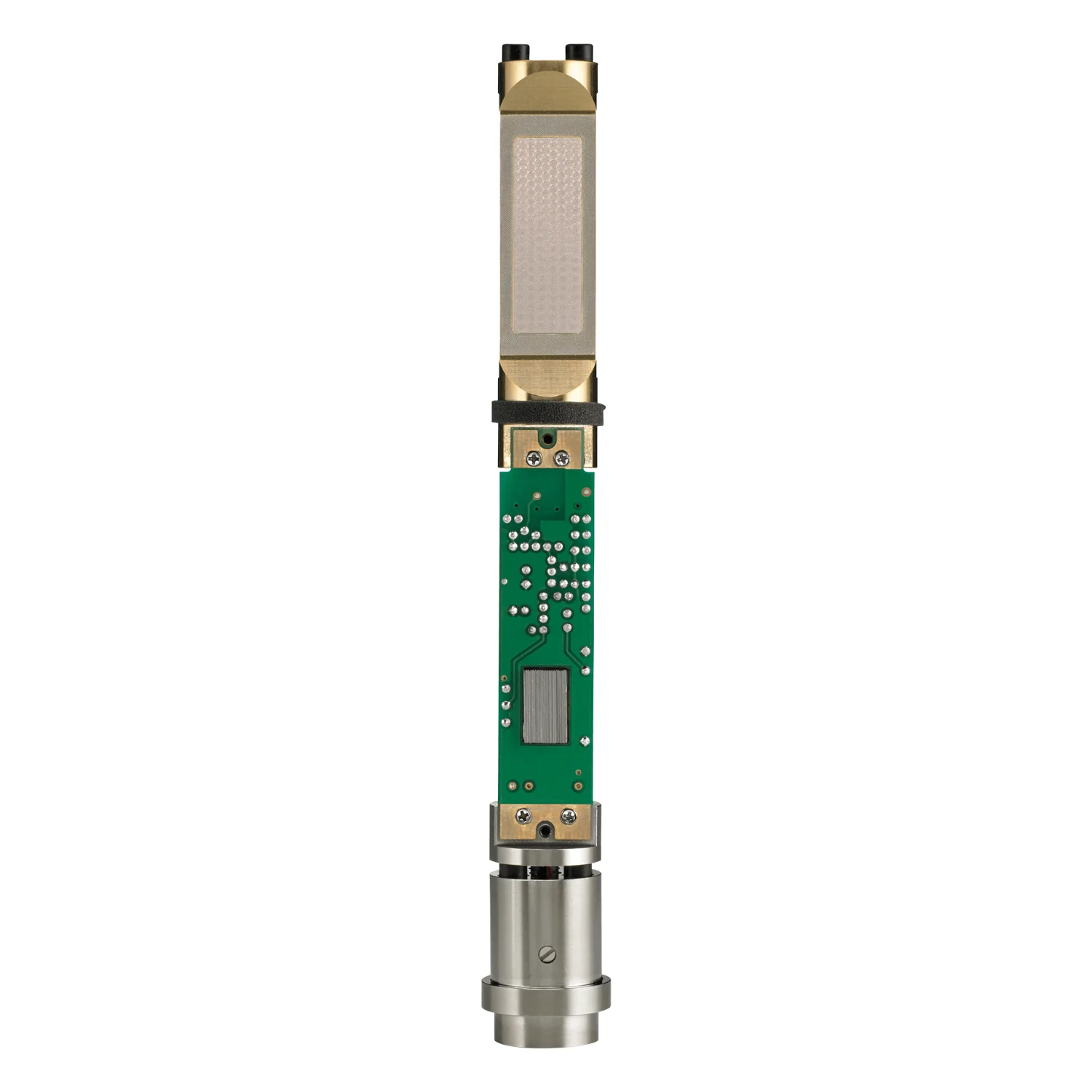

The circuitry and capsule assembly are mounted as a single block within a floating internal shock mount, effectively decoupling the capsule from the microphone body for excellent vibration isolation. In fact, every aspect of the microphone has been carefully considered to minimize any negative effects on the audio signal.

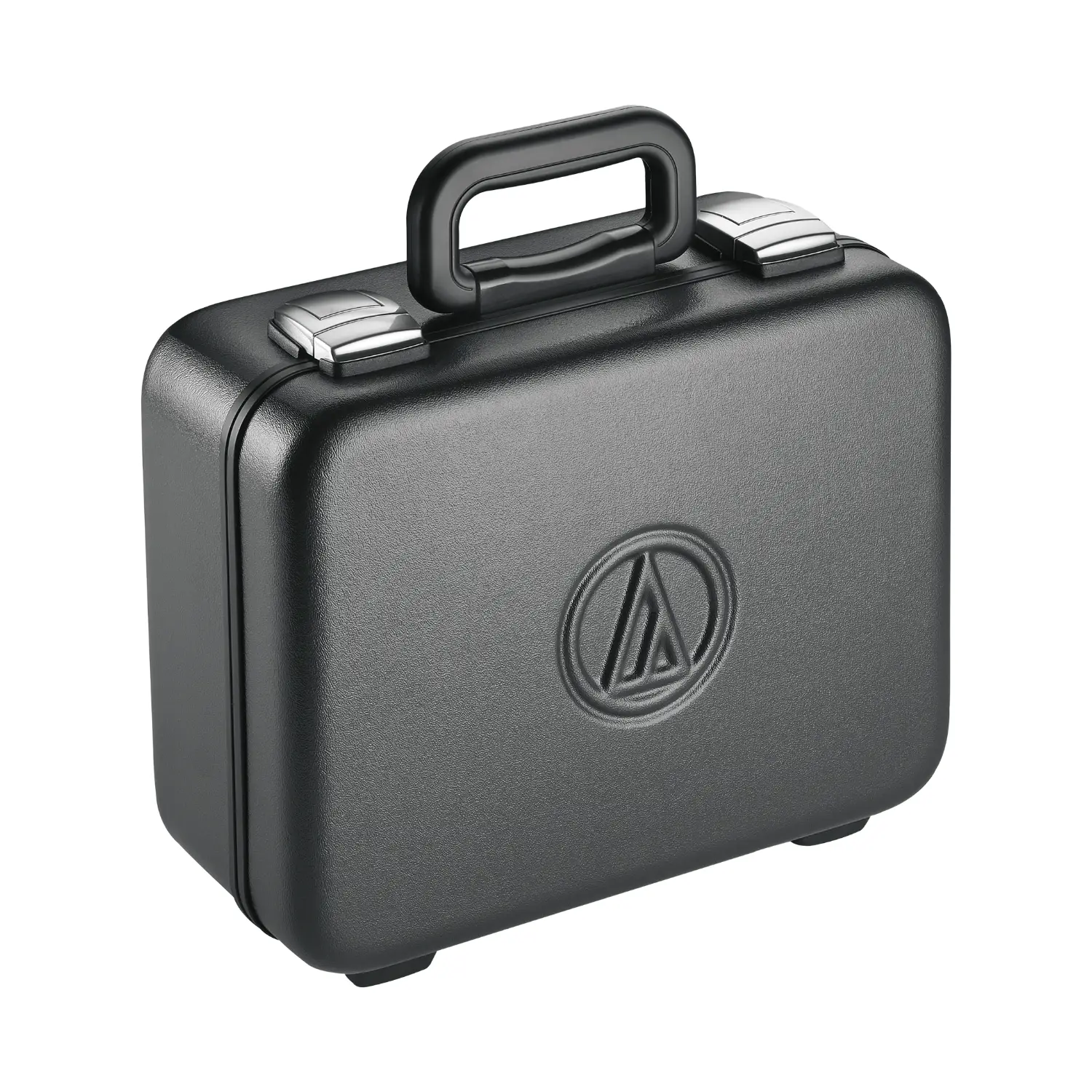

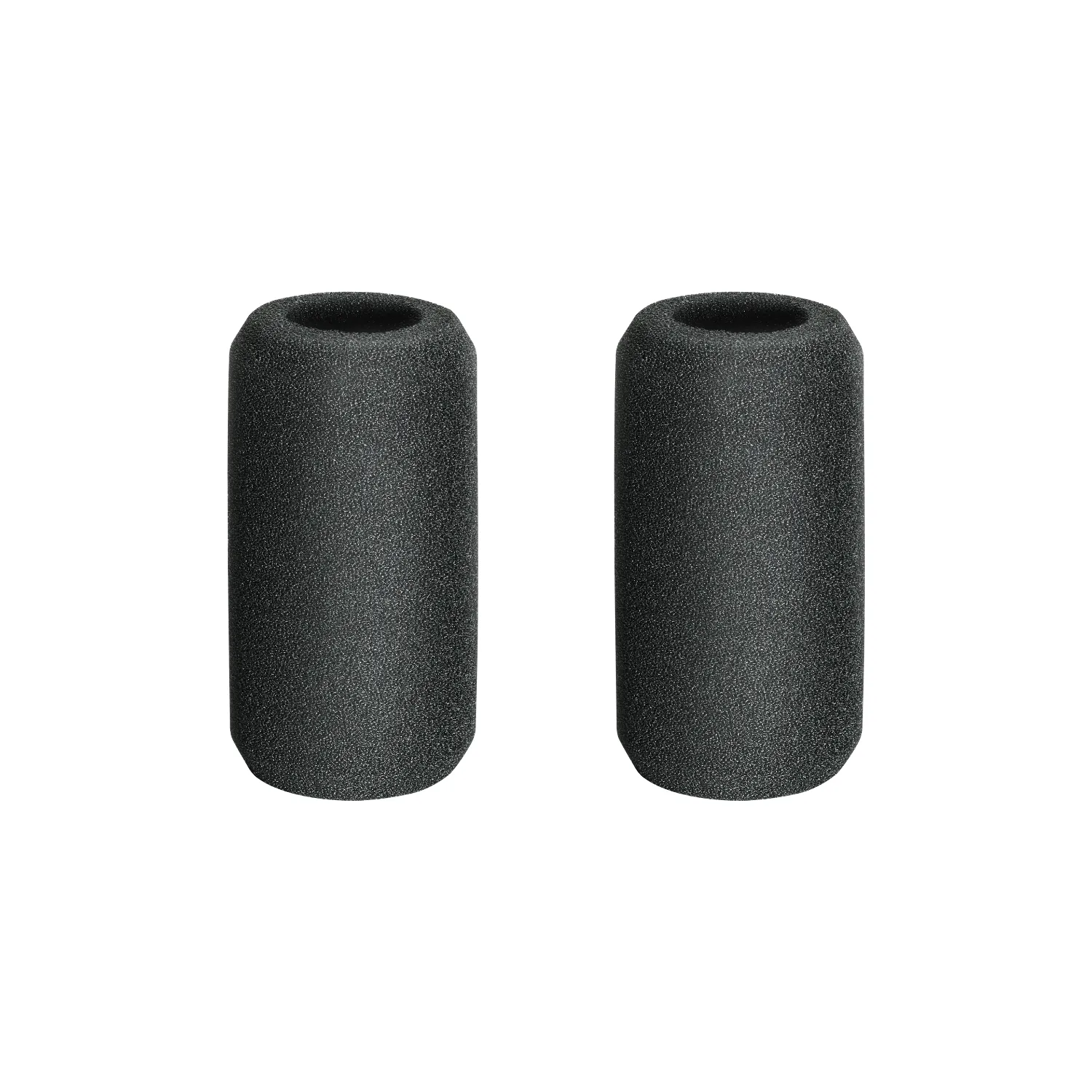

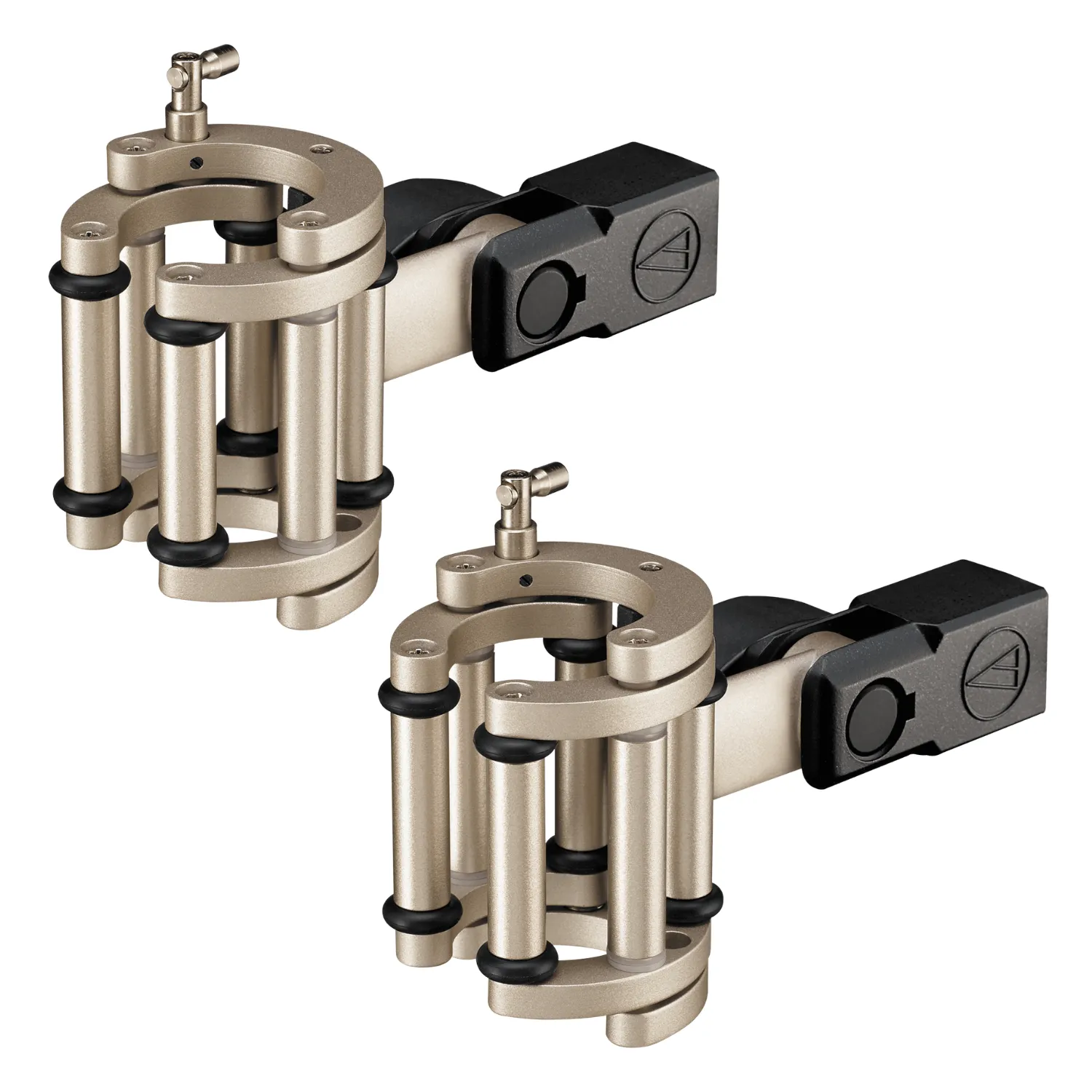

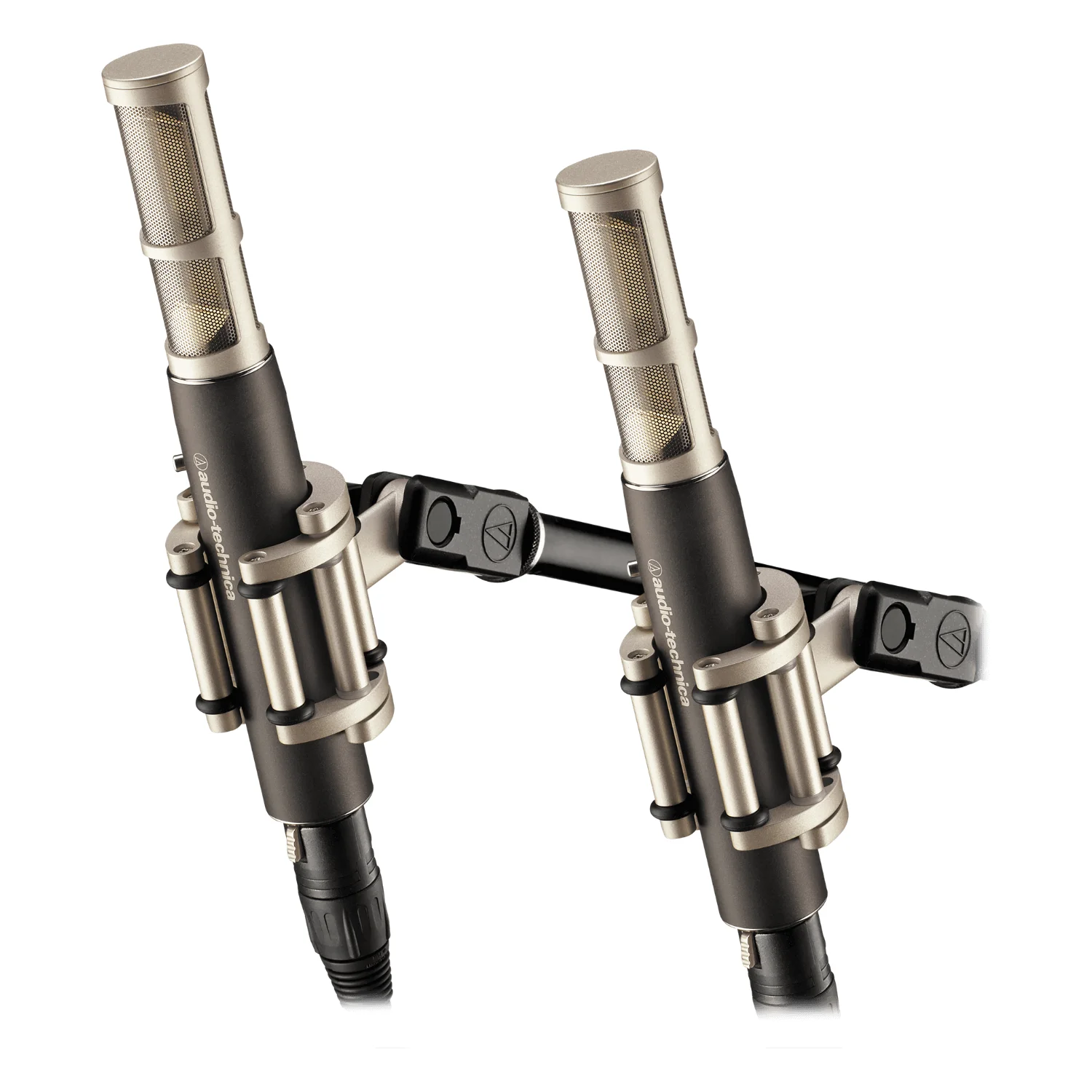

The Audio-Technica AT5045P stereo pair pack comes with two Audio-Technica AT5045 instrument mics, two of Audio-Technica’s innovative AT8481 isolation clamps, two AT8165 windscreens and a protective carrying case that holds a both AT5045 microphones.

Specifications

Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20 – 20,000 Hz
Open Circuit Sensitivity 35 dB (17.7 mV) re 1V at 1 Pa
Maximum Input Sound Level 149 dB SPL, 1 kHz at 1% T.H.D.
Noise 8 dB SPL
Dynamic Range 141 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 86 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 1.4 mA typical
Weight 197 g (7.0 oz)
Dimensions 177.0 mm (6.97”) long, 25.0 mm (0.98”) maximum body diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included Two AT8481 isolation clamp for 5/8″-27 threaded stands; two AT8165 windscreen; protective carrying case Audio-Technica Case Style R11

Ordering

SKU AT5045P Categories , Tag

$3,999 Inc GST
