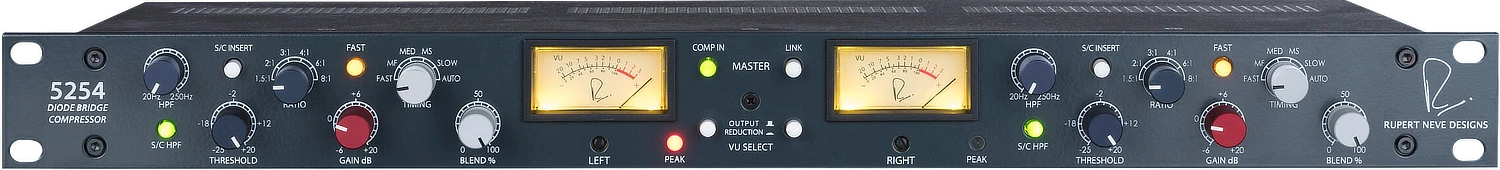

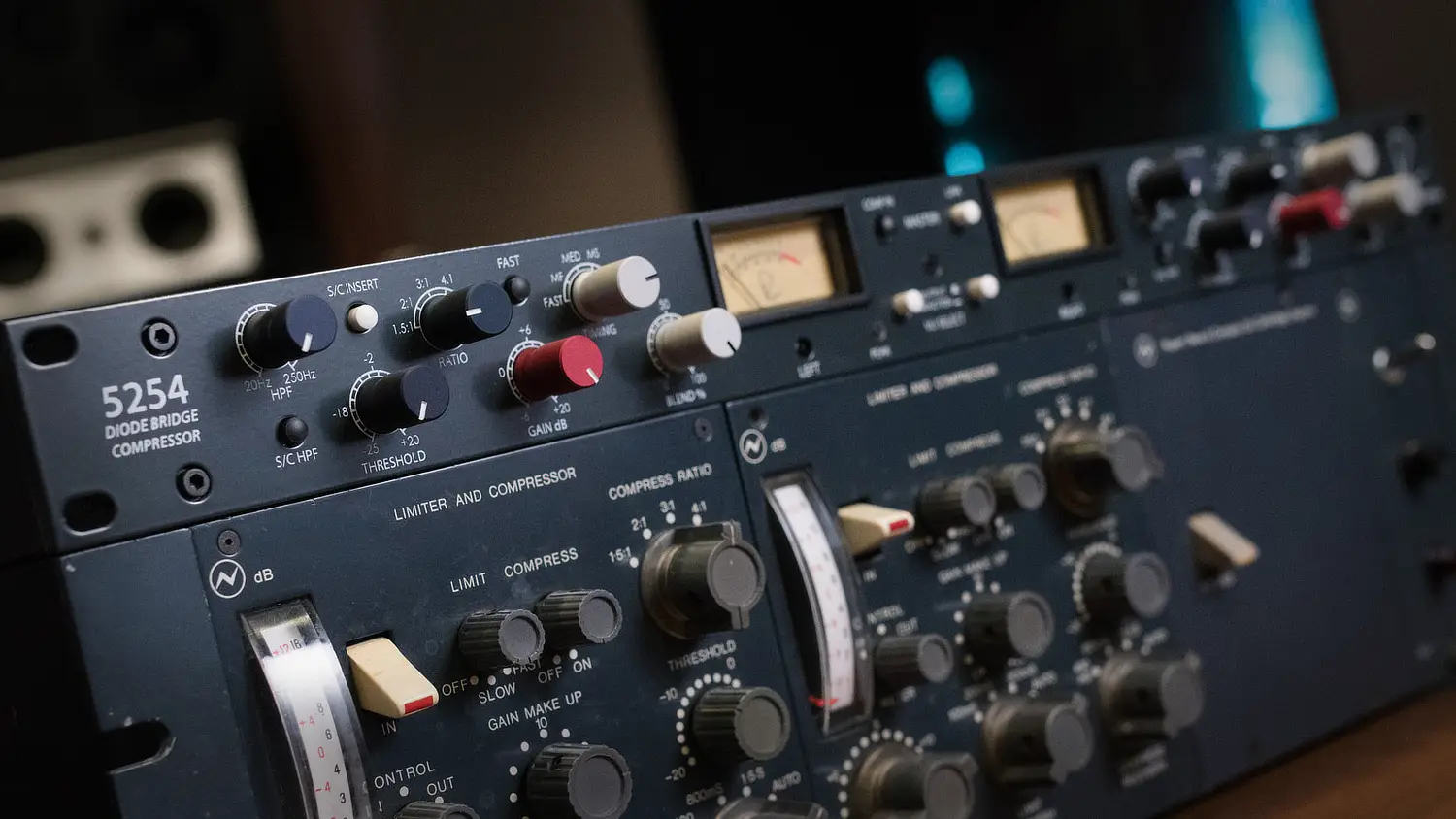

Rupert Neve 5254 Dual Diode Bridge Compressor

The Rupert Neve 5254 Dual Diode Bridge Compressor offer two channels of iconic diode bridge compression, thoughtfully improved and refined for modern tracking, mixing, and mastering.

The Rupert Neve 5254 Dual Diode Bridge Compressor is available to audition in our showrooms.

Rupert Neve 5254 Dual Diode Bridge Compressor

Originally developed for the dynamics circuit of the acclaimed Shelford Channel, the Rupert Neve 5254 Dual Diode Bridge Compressor captures the soul of Rupert Neve’s original 2254 compressor while providing modern updates including advanced timing control, significantly lower noise, fully stepped controls throughout, and internal parallel processing capabilities.

What is diode bridge compression?
Where the VCA compressor found in the Master Buss Processor provides unmatched clarity, the weighty, harmonically rich tonality of diode bridge compression can be essential in pushing key sources like vocals, electric guitars, bass and drums to the forefront of a mix.

By understanding the limitations of vintage units like the legendary 2254, painstaking effort was taken to reproduce the unique tone of these classics while improving the noise floor & accuracy, expanding inflexible time constants, adding full wave sidechain detection for improved dynamic response, and widening the range of threshold and ratio controls.

Delivering the powerful sound of these iconic designs with enhanced flexibility for the modern age, the Rupert Neve 5254 Dual Diode Bridge Compressor is a dynamic tool equipped to make a bold statement on virtually any mix or track.

What’s the difference between the 5254 and the Master Buss Processor?
The Rupert Neve 5254 is a diode bridge compressor, whereas the Master Buss Processor is a VCA compressor. VCA designs are generally used for precise, clean level control, and don’t necessarily impart “a sound” of their own.

A diode bridge design is more colorful, with lots of vibe and personality – great for adding thickness, weight, and warmth to tracks or mixes.

Can the 5254 be used on stereo mixes or mastering?
Absolutely. While the Rupert Neve 5254 may not be quite as “precise” as the Master Buss Processor, it can provide a very special “glue” to stereo mixes or masters. If the color is too much for the source, you can always dial down the Blend control; lower ratios and slower time constant choices will also impart less color.

How is the 5254 different from the compressor in the Shelford Channel, or the 535 Diode Bridge compressor? Aren’t they all the same?
The Rupert Neve 5254 and the Shelford Channel compressors and line circuitry are basically identical, aside from the obvious additional features in the Shelford Channel.

The 535 shares the same basic diode bridge design, but the lower voltage (inherent in the 500 Series format) and different line driving circuitry do have slightly different performance.

Specifications

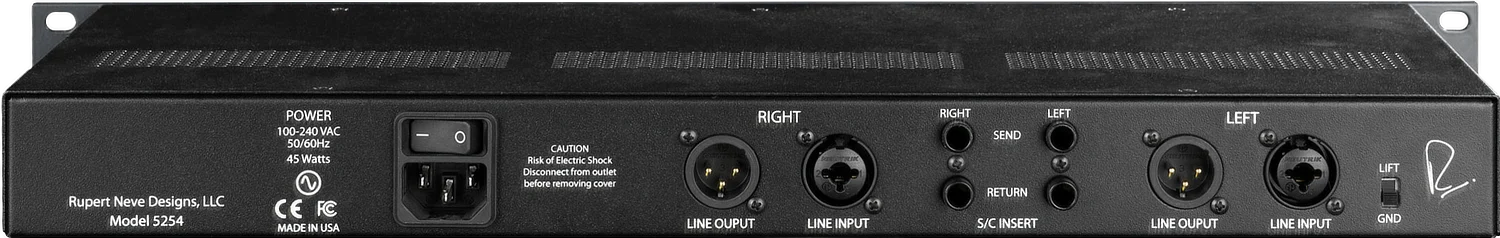

XLR LINE INPUT TO XLR LINE OUTPUT
Compressor Bypassed., zSource = 40 Ohm Balanced
INPUT IMPEDANCE 10K Ohm
OUTPUT IMPEDANCE 40 Ohm
MAXIMUM INPUT LEVEL +4 dBu Selected: +26.7 dBu typical
MAXIMUM OUTPUT LEVEL +26.7 dBu typical
NOISE 10 Hz – 120 kHz: -104 dBu typical
FREQUENCY REPONSE 10 Hz to 120 kHz: +/- 0.25 dB typical
THD+N From 22 Hz – 22kHz BW.
@ 1 kHz @ Maximum Level: 0.0008% typical
COMPRESSOR NOISE
From 22 Hz – 22kHz BW. zSource = 40 Ohms Balanced
NOISE
@ 0 dB Make-up gain: -84.5 dBu typical
@ +20 dB Make-up gain: -64.5 dBu typical
COMPRESSOR TIMING
TIMING measurements represent the full range achievable between 1.5:1 and 8:1 ratio and FAST mode.
FAST Attack 250μS – 2mS // Release 100mS – 200mS typical
MF (MEDIUM FAST) Attack 1mS – 5mS // Release 100mS – 200mS typical
MED (MEDIUM) Attack 3mS – 18mS // Release 350mS – 700mS typical
MS (MEDIUM SLOW) Attack 5mS – 40mS // Release 600mS – 1S typical
SLOW Attack 10mS – 80 mS // Release 800mS – 1.5S typical
AUTO Attack 5mS – 40mS // Release T1 400-900mS, T2 1-2S typical

User Manual

Download the User Manual in PDF format.

Ordering

SKU RN5254 Categories , Tag

Original price was: $6,236.Current price is: $6,099. Inc GST
