Prism Sound Atlas Reference Grade Expandable Production Interface

Prism Sound Atlas is a world class multi-track interface offering flexible expansion and unsurpassable sonic clarity. Using the latest generation of Prism Sounds trusted conversion, Atlas provides more preamps than Titan making it suitable for a wider range of recording scenarios.

The Prism Sound Atlas Reference Grade Expandable Production Interface is available to audition in our showrooms.

Prism Sound Atlas Reference Grade Expandable Production Interface

Unsurpassed Clocking And Jitter Rejection
Prism Sounds history in developing test and measurement equipment for the audio industry has allowed our engineers to get a much deeper understanding of digital clocking and its associated issues.

Mis Preamps
The Prism Sound Atlas boasts 8 ultra-clean, low-noise microphone preamps that perfectly compliment its transparent A/D conversion (with software controllable phantom power, -20dB pad and Overkiller limiter switches on each channel.)

Digital Mixer With Flexible Monitoring
Prism Sound Atlas has a powerful built-in digital mixer that can be configured to provide a multitude of ultra low latency feeds, Including foldback to performers, stereo and surround outputs.

Future Proof Connectivity
With a standard USB connection Prism Sound Atlas can connect to the widest range of computers today and for the foreseeable future. Add to this the option of ProTools HDX and Dante modules for the most flexible and professional solution.

Multi-channel I/O Expansion
Prism Sound Atlas & Titan support Prism Sound’s MDIO expansion cards, which provide alternative “host” connections. The “host” is usually a computer and the Atlas or Titan interface provides a means of connection between the host and the external analogue and digital audio I/O ports.

The MDIO expansion slot provides an alternative host connection. It does not necessarily disable the USB port, but in the case of the Pro Tools interface MDIO-PTHDX, the USB port is switched off when the Pro Tools interface is to be used.

  • The DANTE module allows multiple Titan or Atlas units to be connected directly to a DANTE equipped network.
  • The Pro Tools MDIO-HDX module allows multiple Titan or Atlas units to be connected directly to an AVID Pro Tools HDX or HD native system via AVID’s “Digilink” connection.



Software

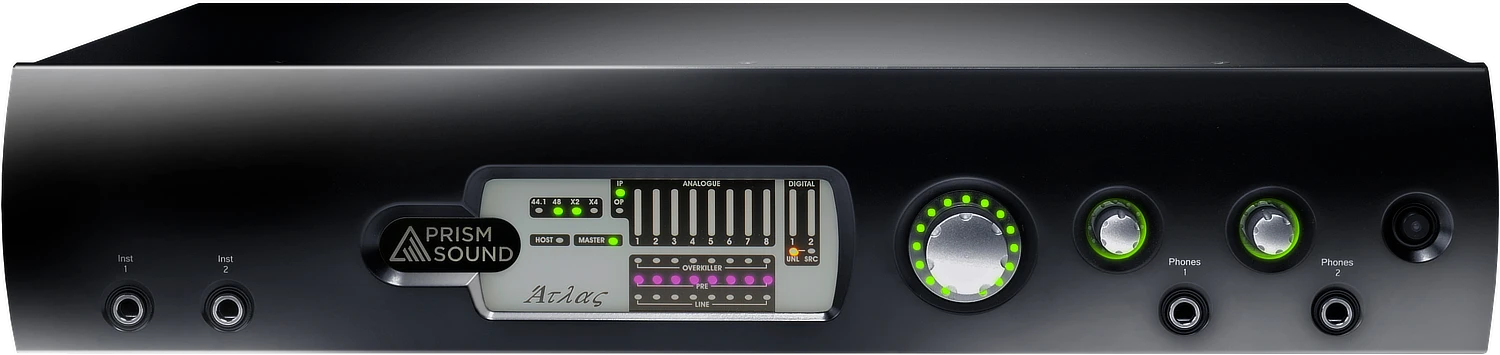

Prism Sound Atlas’ front panel gives continuous visual indication of the unit’s main settings and levels, but in-depth control is managed from the Atlas Controller applet. This runs on the DAW computer, and can be popped up whenever adjustments are needed.

The upper area of the applet shows a panel of ‘Global’ settings for the entire group of connected interfaces, and a panel of ‘Unit’ settings which is assignable to each connected unit in turn, using the enclosed drop-list. These settings are concerned with general parameters such as sync source and sample rate selection, metering and buffering modes. An ‘Identify’ button causes all the LEDs on the selected box to light, to assist with identification in multi-unit systems. To the right, there are large buttons for loading and saving setups, and for on-line help.

Verifile
Verifile is a radical new proprietary technology exclusive to Prism Sound which allows computer audio streams and recorded files to be quickly checked for a wide range of clicks, errors and dropouts, without any compromise in the audio content or any additional metadata. The Verifile process is entirely invisible and inaudible to the user, so using it is simplicity itself.
Developed to meet the needs of our audio archiving clients where even the most minute, inaudible error is completely unacceptable. Verifile can quickly identify and detect any such imperfection making it also the ideal choice for mastering & mix engineers.

Specifications

Total harmonic distortion -107dB (0.00045%, -1dBFS)
THD+N -106dB (0.00050%, -0.1dBFS)
Dynamic range 115dB (-60dBFS)
Gain accuracy ±0.05dB
Output balance >50dB
Inter-channel cross-talk 1kHz: <135dB; 20Hz..20kHz: <-120dB
Inter-channel phase 10Hz..5kHz: ±0.4°, 5kHz..20kHz: ±0.25°, 20kHz..50kHz: ±0.5°

Check the user manual for full product specifications

User Manual

Download the User Manual in PDF format.

Ordering

SKU PSATLAS Categories , Tag

$8,509 Inc GST
