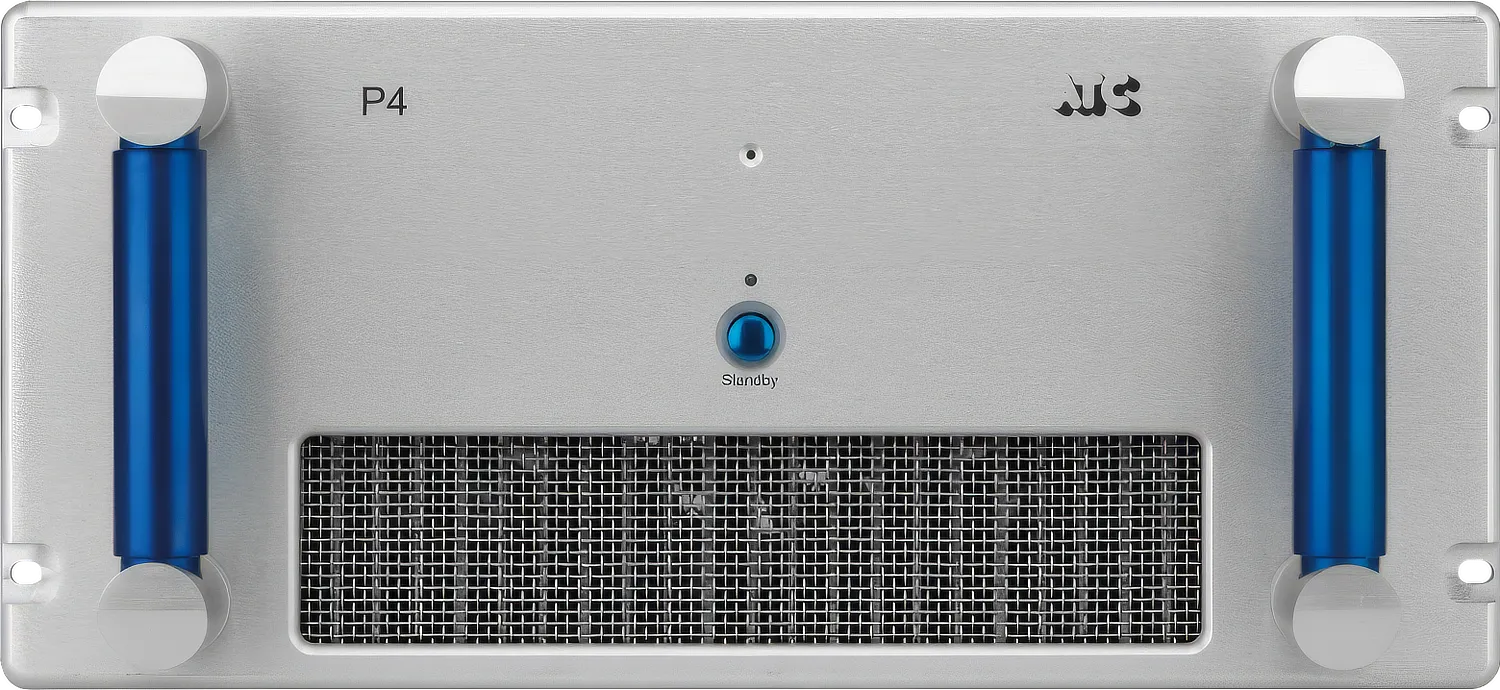

ATC P4 4 Channel Power Amplifier

Introducing the ATC P4 Power Amplifier: Your Ultimate Audio Powerhouse! Designed exclusively for use with the ATC SCM200ASL Pro and ATC SCM300ASL Pro monitoring systems.

ATC P4 4 Channel Power Amplifier

Get ready to elevate your audio experience with the ATC P4 Power Amplifier. This beast of a device boasts a 4-channel 3-way mono-block design that’s engineered to bring out the best in your sound. Crafted with ATC’s renowned class A/B “Grounded Source Topology,” this amplifier is set to redefine your expectations of audio performance.

With a whopping 850W of total output, the ATC P4 ensures your music is heard with remarkable clarity and power. The 4th order active crossovers with phase correction guarantee seamless transitions between frequencies, delivering a rich and balanced soundstage that’s bound to impress even the most discerning audiophiles.

Fear not the peaks and surges in your music – the Fast FET soft limiting driver protection system ensures that your amplifier stays in its comfort zone without compromising on sound quality. The triple fan cooling system further enhances the longevity of this powerhouse by keeping it cool under pressure.

Worried about the long haul? Rest easy with the P4’s remarkable 6-year warranty, a testament to the confidence ATC has in their engineering prowess.

But that’s not all – the ATC P4 Power Amplifier is exclusively designed to complement the ATC SCM200ASL Pro and ATC SCM300ASL Pro Monitoring Systems. This synergy guarantees a sound experience that’s second to none, bringing out the true potential of your speakers.

Transform your audio setup with the ATC P4 Power Amplifier – where innovation meets sound perfection. Elevate your senses and indulge in audio nirvana like never before!

ATC P4

Specifications

Output Power: HF 100W into 6Ω, Mid 200W into 16Ω, LF 275W x 2 into 8Ω
Input Sensitivity: 2V
Input Inpedance: 10kΩ
Frequency Response: 5Hz – 20 kHz ±0.1dB
Signal to Noise Ratio: Better than 105dB
Crosstalk: Better than 90dB
Power Requirements: 100, 115, 230 Volts (region dependant 50/60Hz factory set)
Dimensions: 19˝ Rack Mounting 5U high (222mm / 8.7˝), Overall Depth 538mm (21.2″), Front Panel and Handles 71mm (2.8˝), Rear Handles 40mm (1.6˝),
Amplifier Body 427mm (16.8˝ )
Weight: 35.8kg / 78.8lbs

User Manual

Download the User Manual in PDF format.
