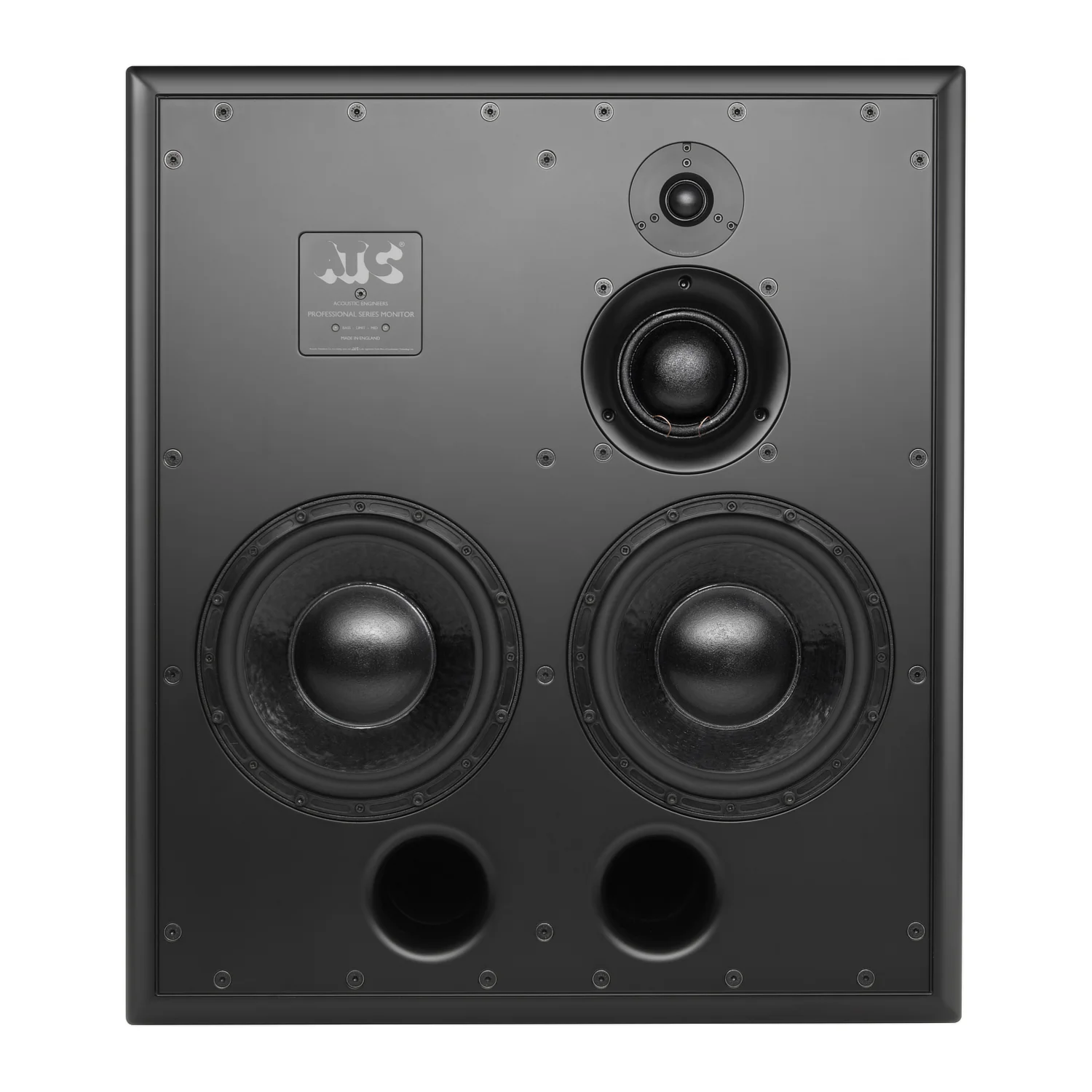

The ATC SCM110ASL Studio Monitor features a 25mm/1” Dual Suspension ‘S-Spec’ Tweeter, twin full “SL” spec 9˝/234mm bass drivers, and a 75mm “Super Dome” mid driver. It offers a 350W Tri-amp pack, LF contour control, clip indication, and a 6-year warranty for exceptional audio performance and reliability.
The ATC SCM110ASL Pro Studio Monitor is available to audition in our showrooms.
The ATC SCM110ASL Pro Studio Monitor is a testament to audio engineering excellence, offering a harmonious blend of cutting-edge technology and meticulous craftsmanship. At the heart of its sound reproduction are the ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter, which delivers precise highs with remarkable clarity, and the twin full “SL” spec 9˝/234mm bass drivers that generate deep and impactful low frequencies. Enhancing the midrange is the ATC 75mm “Super Dome” mid driver, which articulates vocals and instruments with utmost accuracy.
The ATC SCM110ASL Pro Studio Monitor is equipped with an onboard ATC grounded source 350W Tri-amp pack, a powerful configuration that optimally drives each driver for a balanced and dynamic sonic experience. The LF contour control grants users the flexibility to fine-tune the low-frequency response according to their acoustic environment and personal preferences, ensuring seamless integration into any studio setup.
An intuitive clip indication feature safeguards against potential audio distortion, helping users achieve a clean and pristine sound output. Moreover, the ATC SCM110ASL Pro Studio Monitor comes with a reassuring 6-year warranty, underscoring its durability and the manufacturer’s confidence in its quality.
The ATC SCM110ASL Pro Studio Monitor encapsulates a symphony of innovation, precision, and reliability. It stands as a testament to ATC’s commitment to delivering impeccable sound reproduction and an unparalleled listening experience for studio recording engineers and mastering professionals.
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝) Depth with amplifier at rear adds 3˝
Weight: 73kg / 160.6lbs
Download the User Manual in PDF format.
$33,848 Inc GST
