ATC SCM12 Pro Studio Monitor

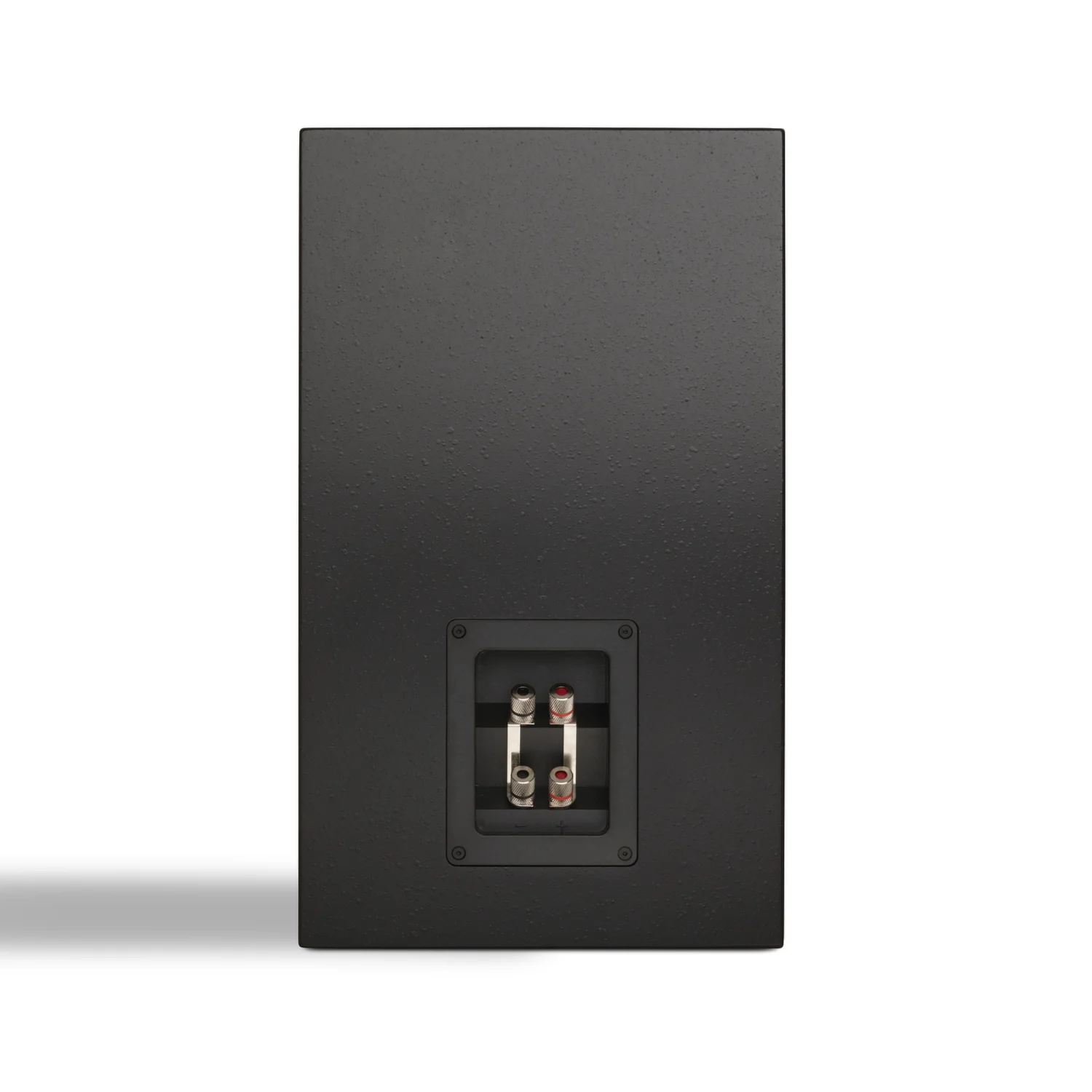

The ATC SCM12 Pro is a high performance 2-way passive nearfield monitor. The monitor is equipped with a “bi-wire” connection panel to enable separate amplification of mid/bass and high frequency drivers if required.

ATC SCM12 Pro Studio Monitor

Introducing the ATC SCM12 Pro Studio Monitor – your ultimate partner in the recording studio. Designed with precision and engineered for excellence, this compact high-performance 2-way studio monitor is a game-changer in the world of professional audio.

Crafted to perfection, the SCM12 Pro is your go-to solution for critical near-field listening applications in any control room. Its unmatched clarity and accuracy ensure that every sonic detail is captured, making it an essential tool for producers, engineers, and musicians who demand the best.

Looking to establish an immersive sound experience in small-to-medium control rooms? The ATC SCM12 Pro excels in LCR surround monitoring, creating a captivating soundstage that envelops you in the heart of the audio action. Whether you’re crafting a mix or mastering a track, these monitors provide the precision you need.

Take your audio projects to the next level with the SCM12 Pro’s ability to handle surround channels for immersive formats like Auro 3D, Dolby Atmos, and DTS-X. Immerse yourself in the world of three-dimensional audio, knowing that these monitors are engineered to deliver the utmost in performance and accuracy.

At the core of these monitors is the proprietary ATC 150mm/6˝ CLD Mid/Bass Driver. This masterpiece of engineering produces deep, resonant bass that serves as the foundation of your sound. Complementing it is the proprietary ATC 25mm/1˝ Dual Suspension Tweeter, capturing the finest nuances of your audio with impeccable precision.

Experience wide dispersion that ensures consistent sound coverage throughout your studio space, allowing you to monitor your mixes with confidence from various listening positions.

With an impressive 6-year warranty, you can trust that the ATC SCM12 Pro is built to last. Invest in a studio monitor that’s not just a tool, but a long-term partner in your audio journey.

Elevate your recording studio with the ATC SCM12 Pro Studio Monitor – where performance, precision, and professional sound quality unite.

Specifications

Drivers: HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB45-150CLD 8 Ohm)
Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400x238x235mm/15.7˝x9.4˝x9.3˝
Weight: 11kg/24lbs (per cabinet)

User Manual

Download the User Manual in PDF format.

Ordering

SKU SCM12P Categories , Tag

$3,105 Inc GST
