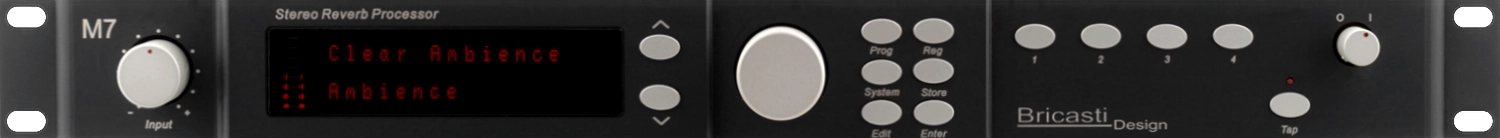

Bricasti M7 Digital Reverb

The Bricasti M7 is a high-end reverb processor combining advanced DSP technology with premium analogue design. It delivers exceptional sound quality, intuitive control, and a versatile palette of reverbs, setting a new standard for professional reverb processing.

Bricasti M7 Digital Reverb

The Bricasti M7 is a dedicated reverb processor that sets a new benchmark for sonic quality and intuitive control. Built on a high-resolution digital architecture and powered by an advanced array of modern DSPs, it offers a fresh approach to reverb algorithm design. Its fully differential analogue section, supported by a transformer-based linear power supply, delivers exceptional analogue performance unmatched in its class.

Crafted with a rugged stainless steel chassis and a precision-machined aluminium front panel, the Bricasti M7 pairs durability with refined aesthetics. A clear, high-visibility display and thoughtfully designed interface ensure ease of use in any studio setting. Every element of the Model 7 reflects a deliberate vision for the evolution of reverb, blending respect for the classics with a drive to push the boundaries of what’s possible.

With a sound palette that spans both familiar textures and bold new atmospheres, the Bricasti M7 redefines what a reverb processor can offer. It invites users to rediscover their work through a lens of clarity, depth, and musicality previously out of reach.

Programs and User Interface Features

  • More than 200 Unique reverb presets
  • Revolutionary new reverb algorithm True Stereo Reverb Process
  • Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
  • 12 Parametric Program Parameters
  • 100 User Registers
  • 4 Front panel “Favorites” for quick saves and compares



Hardware Design Features

  • Dual Dedicated Power Supplies
  • Custom design toroidal transformer linear supply for analog
  • High performance switching supply for digital
  • Separate Digital and Analog modules
  • non corrosive Stainless Steel chassis and top cover
  • Milled anodized aluminum front panel, knobs and button caps
  • Positive feel 2 db stepped analog input level control
  • MIDI I/O
  • Hand Crafted in the USA

Specifications

  • Digital I/O: AES 24-bit
  • Sample Rate Support: AES single wire up to 192kHz
  • Clocking: Self-clocking to incoming sample rates from 44.1kHz to 192kHz
  • DSP Processing: 6 dual-core Analog Devices DSPs
  • Jitter: Less than 20 picoseconds
  • Input Level Adjustment: Adjustable in 2dB steps
  • Analogue I/O: Balanced XLR
  • Conversion: 24-bit with dual D/A
  • Analogue Circuitry: Fully balanced, DC-coupled input and output
  • A/D Dynamic Range: Greater than 116dB, A-weighted
  • A/D THD+N: Less than 0.001%
  • A/D Frequency Response: 10Hz to 20kHz ± less than 0.05dB
  • CMRR: Greater than 100dB at or below 1kHz
  • Maximum Input Level: +24dBu
  • Minimum Input Level for 0dBFS: +4dBu
  • D/A Dynamic Range: Greater than 116dB, A-weighted
  • D/A THD+N: Less than 0.001%
  • D/A Frequency Response: 10Hz to 20kHz ± less than 0.05dB
  • Maximum Output Level: +24dBu

User Manual

Download the User Manual in PDF format.
