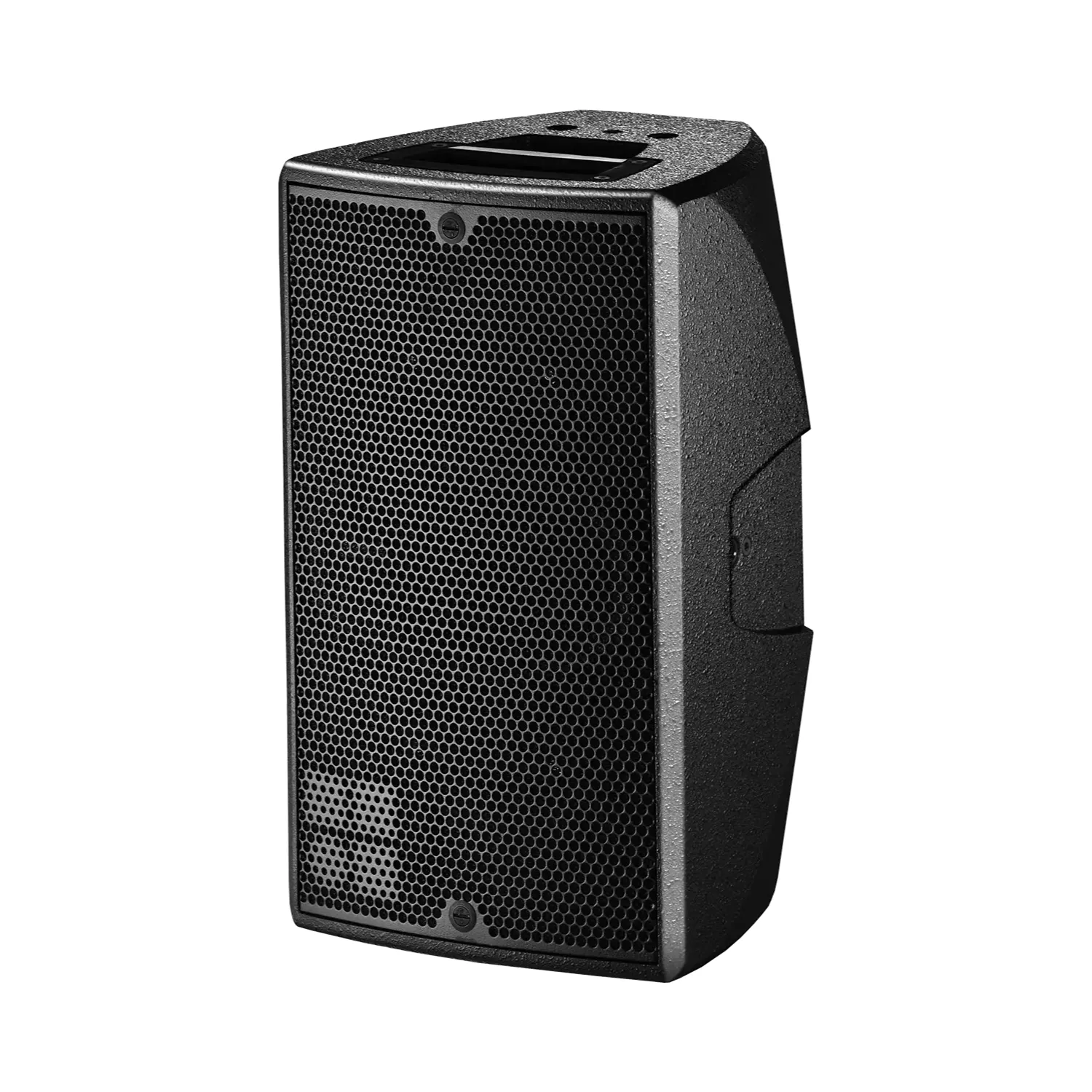

The d&b Audiotechnik E8 Loudspeaker is a high-performance 2-way multipurpose loudspeaker with an integrated coaxial driver.
d&b Audiotechnik E8 Loudspeaker
The d&b Audiotechnik E8 serves as a versatile solution for speech and music applications, whether used as a standalone full-range system or as part of larger distributed sound reinforcement setups. Paired with an d&b Audiotechnik E12X subwoofer (in passive or active mode) or any other E-Series subwoofer, it can handle high-level music reproduction effortlessly.

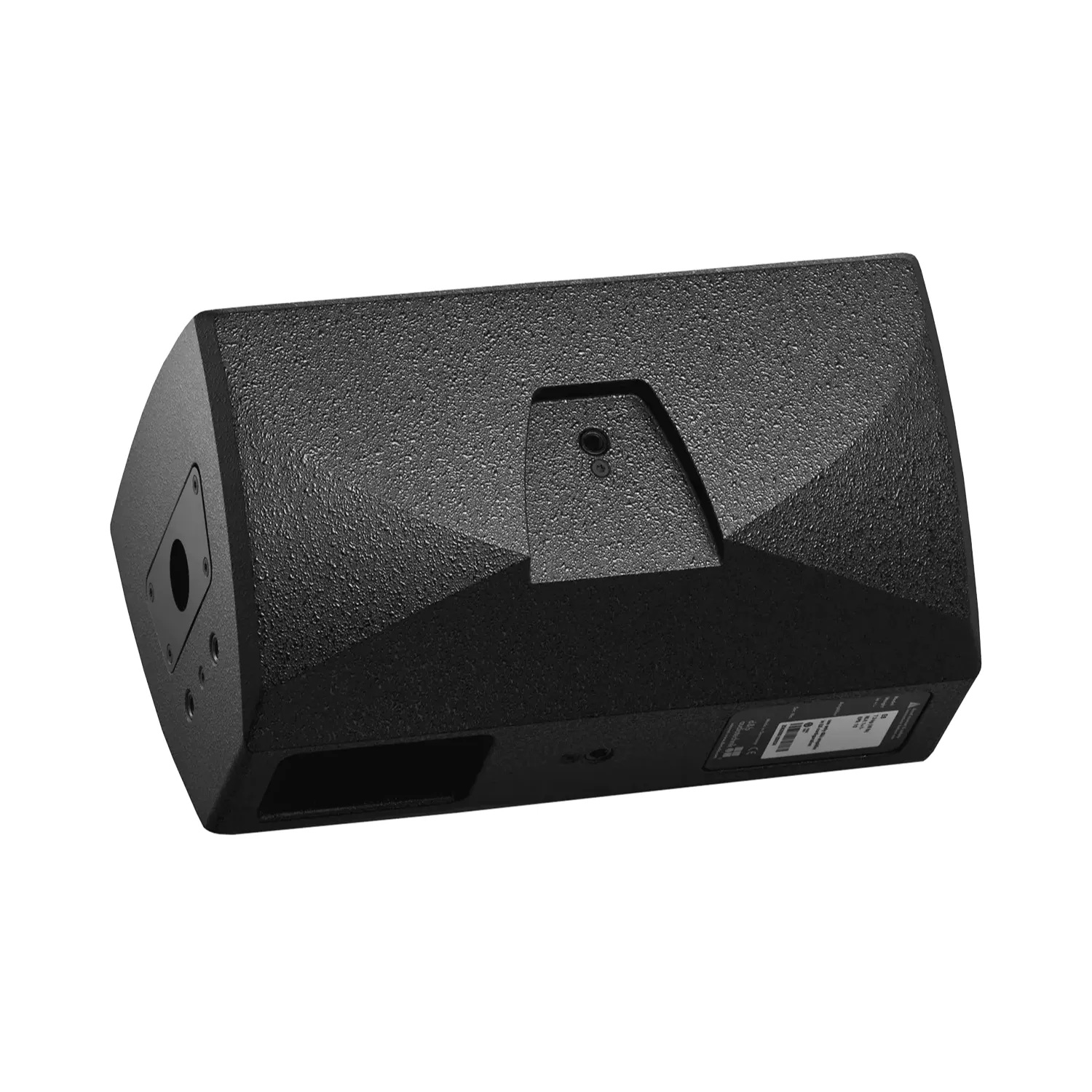

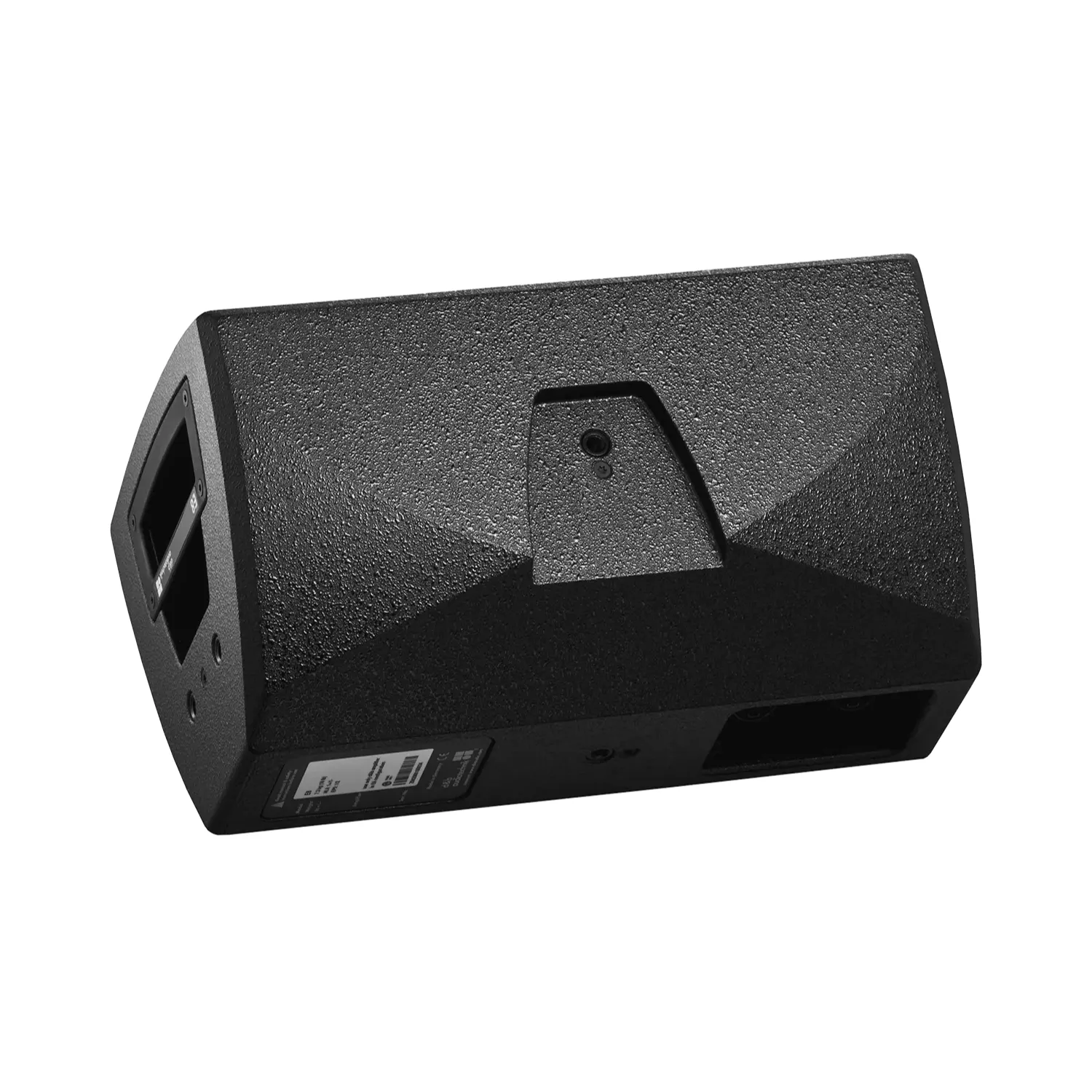

The enclosure’s multifaceted design allows for upright or horizontal use and makes it suitable as a stage monitor. Its 90° x 50° horn dispersion pattern can be easily rotated by 90° to provide a 50° x 90° pattern. The d&b Audiotechnik E8 cabinet is made from durable polyurethane integral hard foam, finished with impact-resistant paint, and includes a handle and a socket for loudspeaker stands.
Available in Special Colour (SC) and Weather Resistant (WR) options, the d&b Audiotechnik E8 is adaptable to different settings. The WR version, rated IP54, is built for outdoor use in varying ambient conditions. Both SC and WR options come with colour-matched metal plates covering the handle recesses and stand socket for a polished look.
Features
Components 8″/1″
Dispersion 90° x 50° rotatable
SPLmax 129 dB
Specifications
Frequency response (-5 dB standard): 62 Hz – 18 kHz
Frequency response (-5 dB CUT mode): 120 Hz – 18 kHz
Max. sound pressure:
With 10D: 126 dB
With D20/5D/30D: 129 dB
With D40/D80/40D: 129 dB
Cabinets per amplifier channel: 3
Loudspeaker data:
Configuration: 2-way compact coaxial loudspeaker
Nominal impedance: 12 Ω
Power handling capacity (RMS/peak 10 ms): 150/800 W
Nominal dispersion angle (h x v): 90° x 50°, rotatable to 50° x 90°
Components:
8″ driver with neodymium magnet
1″ exit compression driver with 1.75″ coil and rotatable CD horn
