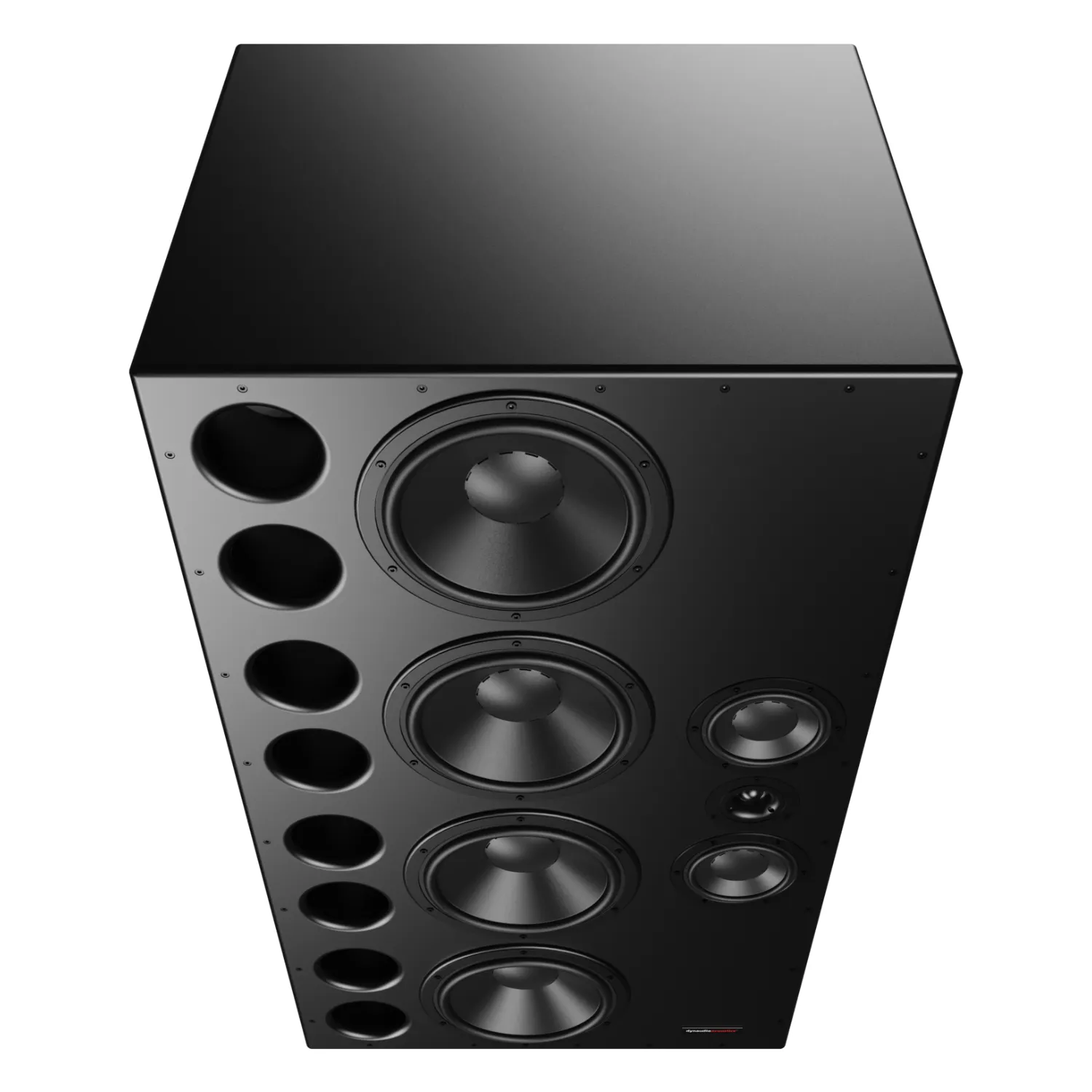

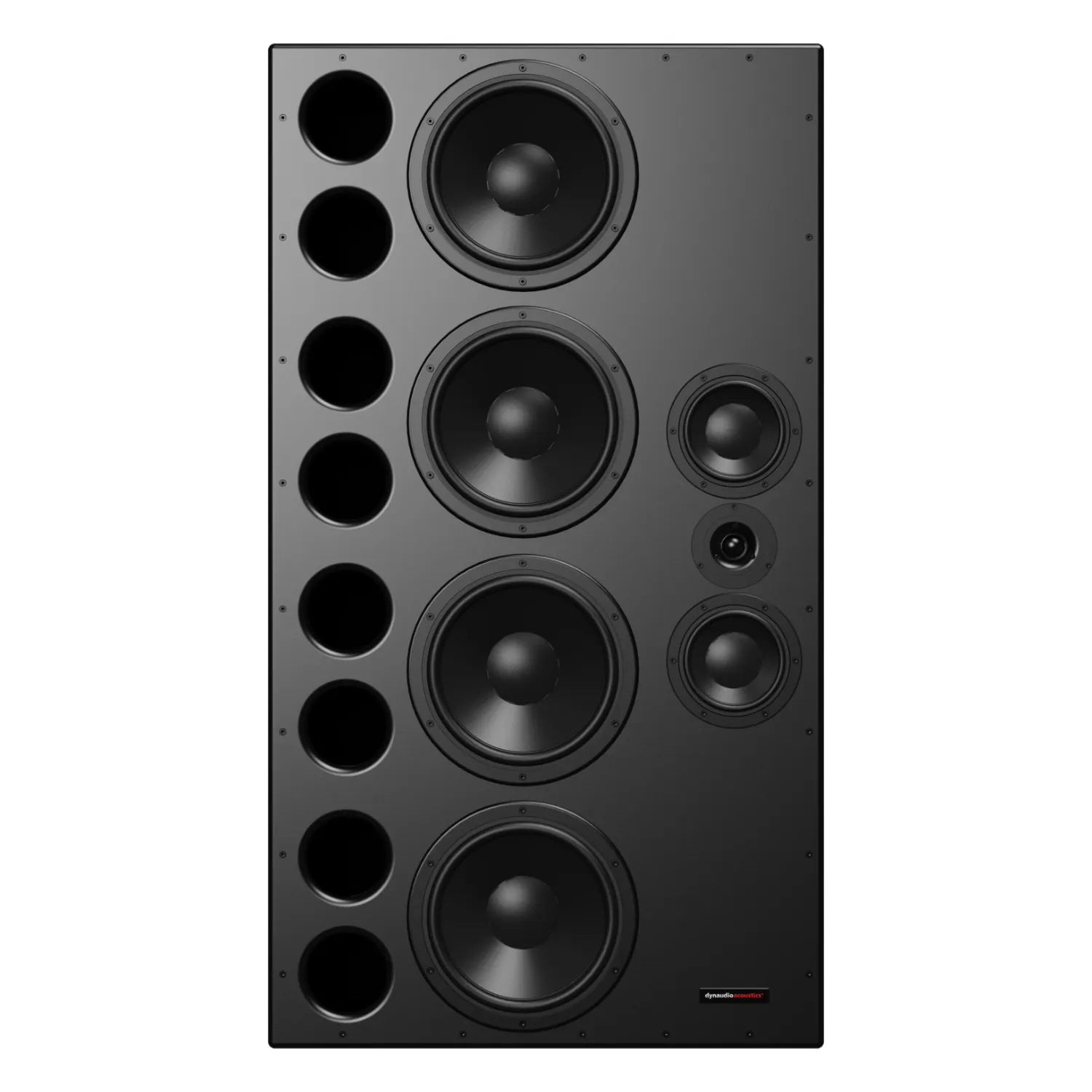

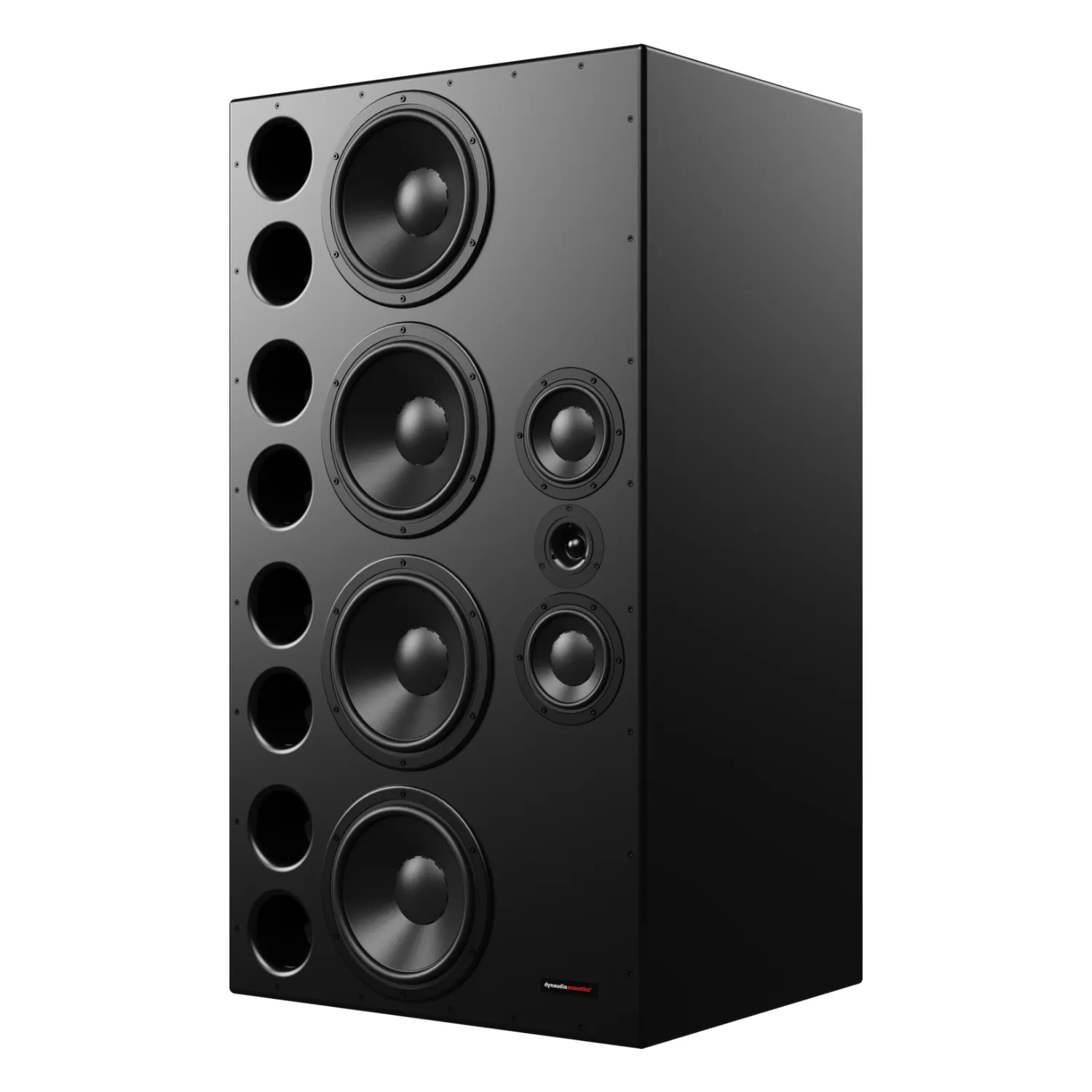

The Dynaudio M3FX is a powerful loudspeaker system for large post-production studios with console distances up to 8 metres. It features four 300mm woofers, dual 170mm midrange drivers, and a D260H tweeter, supporting immersive formats like Dolby Atmos. Designed as a two-way active system, it pairs with DA or DCA series amplifiers.
The Dynaudio M3FX is a high-power loudspeaker system designed for large film and television post-production studios, particularly where the console is positioned up to 8 metres from the screen.
When combined with Dynaudio subwoofers and surround speakers, it creates a complete monitoring solution for immersive formats such as Dolby Atmos HE 7.1.4, 9.1.4, and full Atmos theatrical multi-channel setups.
The bass section features four 300mm MSP drivers with low distortion and 100mm ferrofluid-cooled voice coils. The midrange uses two 170mm drivers with 75mm voice coils and neodymium magnets. High frequencies are handled by the D260H soft-dome tweeter with a short waveguide, all integrated via a high-power passive crossover linking mids and tweeter.
Supplied as a two-way active system, the Dynaudio M3FX is best matched with Dynaudio Acoustics DA-series amplifiers with DSP, or DCA-series models with built-in filter cards.
When you’re in the mix position, every decision reflects your reputation and the artist’s. You both know that what goes in must come out, perfectly. Audio professionals at many of the world’s leading studios trust Dynaudio Acoustics M-series monitors. These passive speakers are built to meet the highest demands in power, accuracy and SPL, making them ideal for stereo, immersive, broadcast, dubbing and film work.
The MkII range features upgraded components throughout, including new crossovers, MSP woofers, precision-coated soft-dome midrange drivers and the renowned Esotar 3 tweeter. This results in even greater clarity and the ability to hear critical details, even in the most complex mixes.
Each model is available in a range of finishes, with custom options also offered. M-series monitors are used by Grammy, Oscar and BAFTA-winning engineers at studios such as Abbey Road, NRG, AIR, Netflix and Disney.
Download the User Manual in PDF format.
