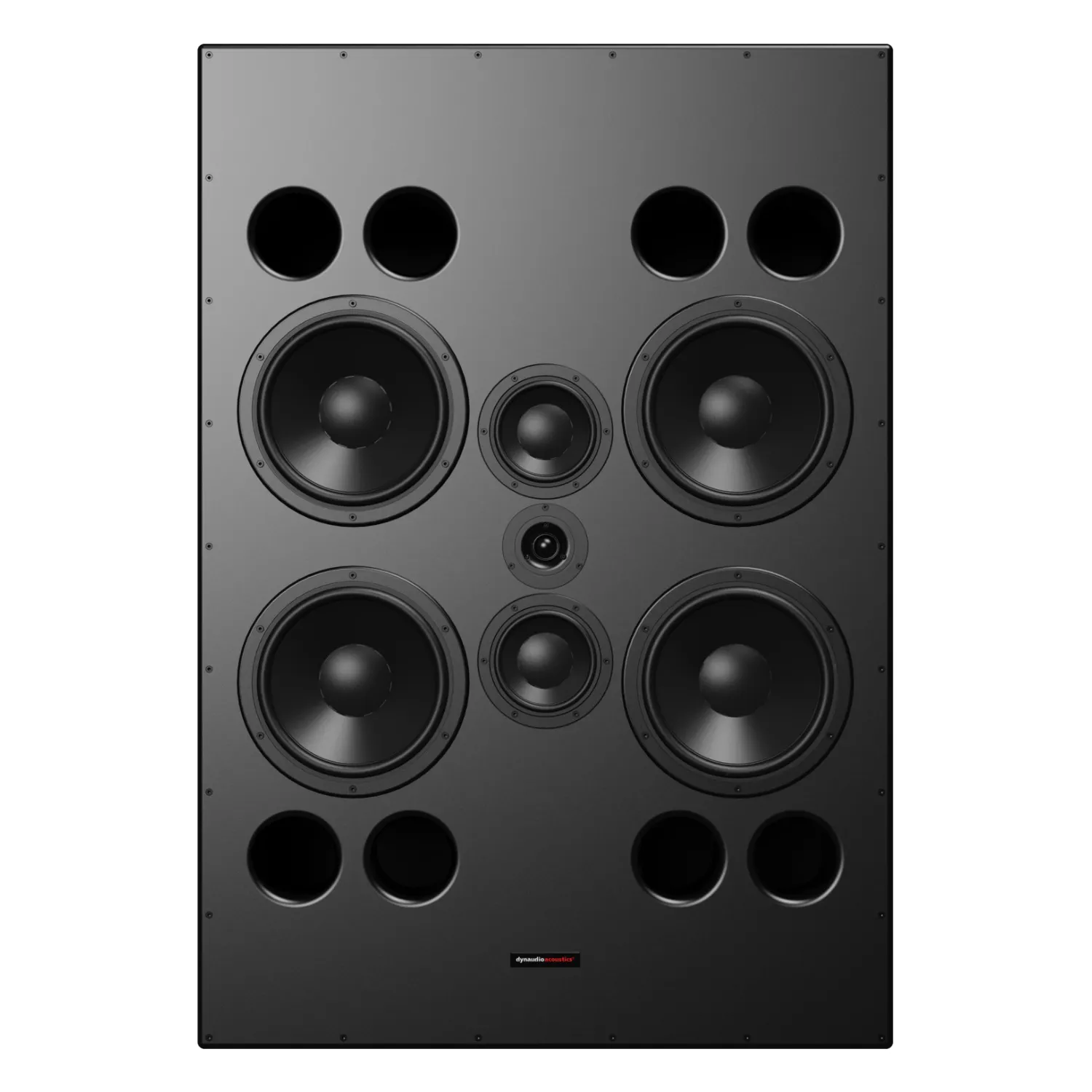

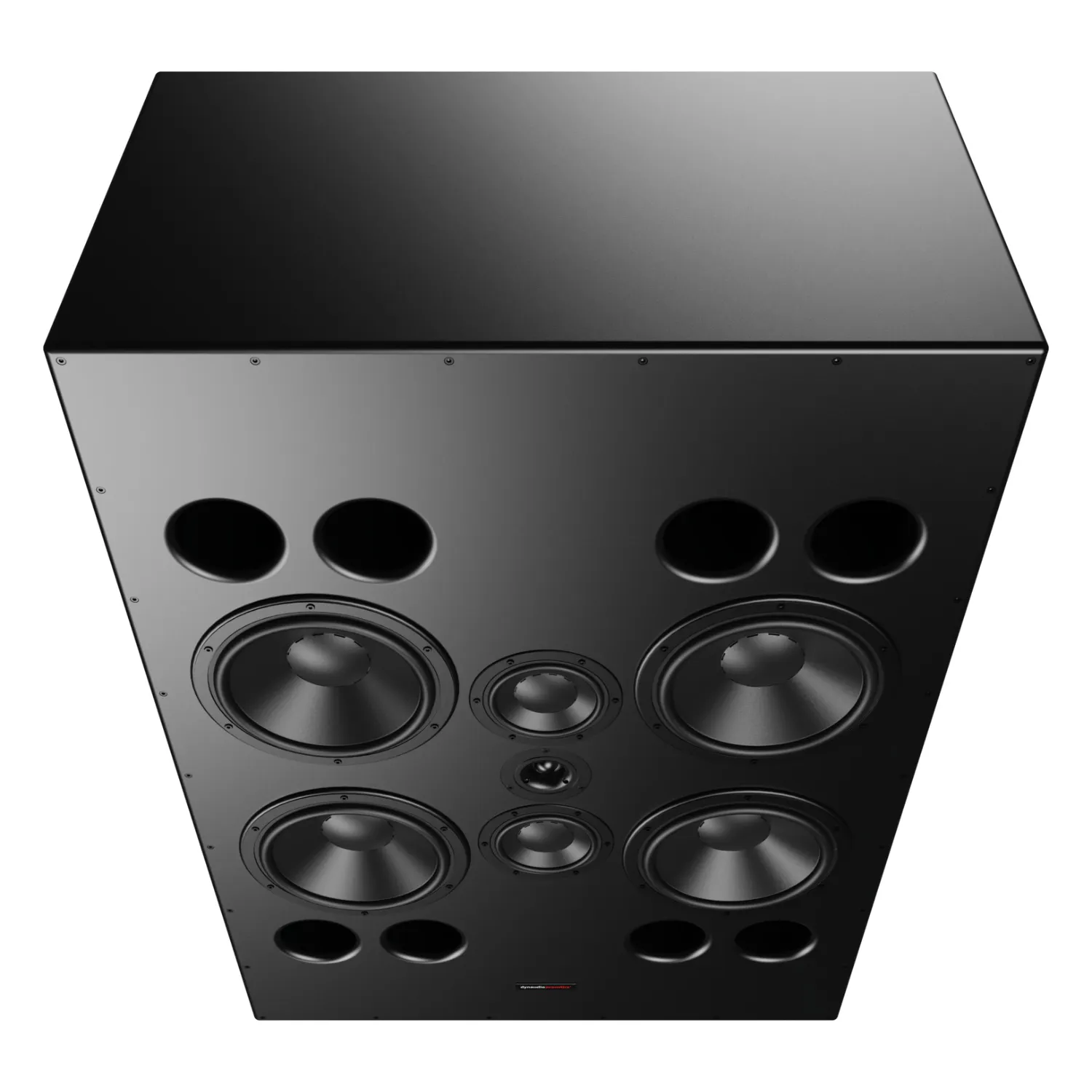

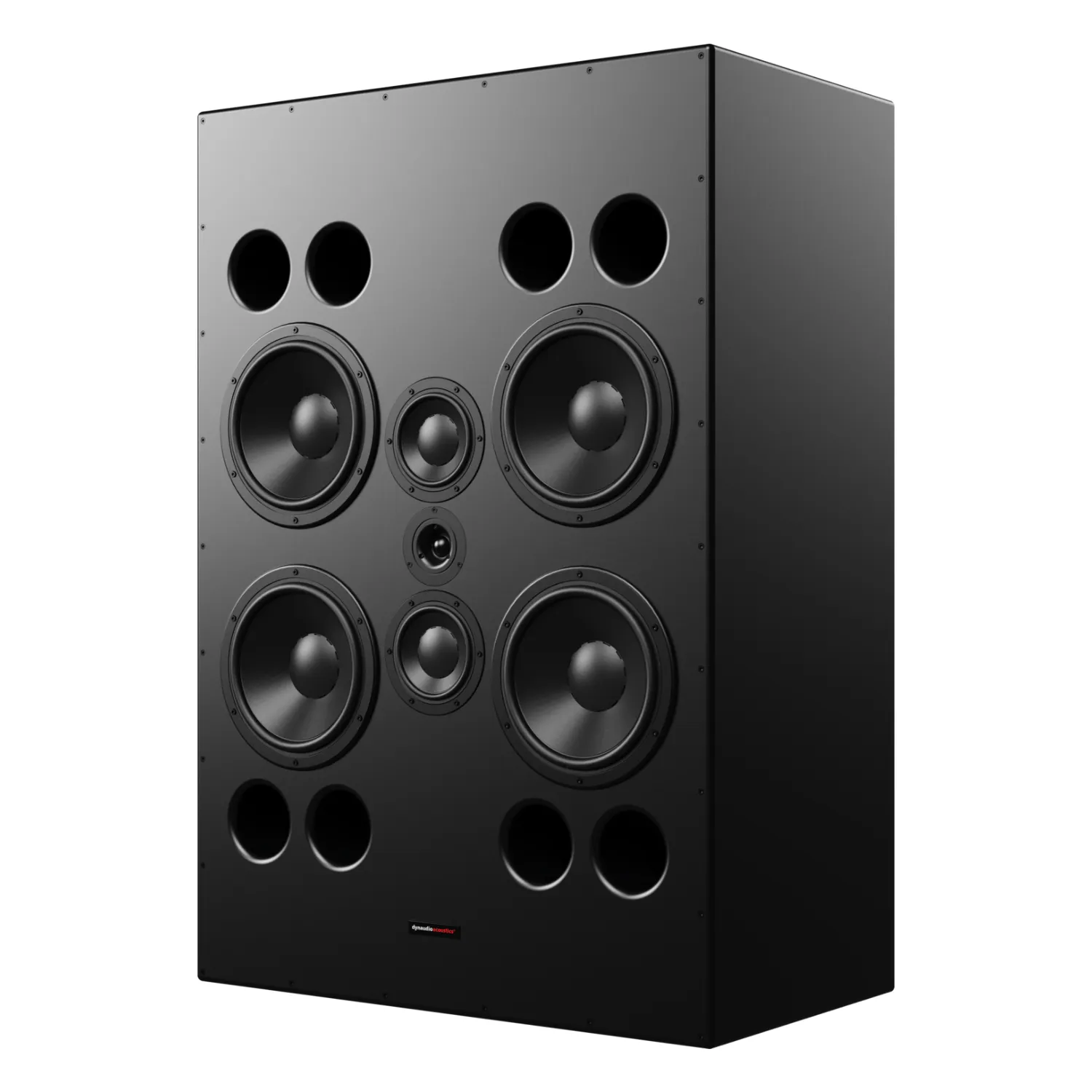

The Dynaudio M3FX Centre is a high-power loudspeaker for large post-production studios, designed for immersive formats like Dolby Atmos. It features a four-driver bass section, dual midrange units, and a soft-dome tweeter, and is supplied as a two-way active system compatible with Dynaudio’s DA and DCA Series amplifiers.
The Dynaudio M3FX Centre is a high-power loudspeaker system designed for large-scale film and television post-production environments, where the mixing console may be positioned up to 8 metres from the screen.
When paired with Dynaudio subwoofers and surround speakers, it delivers a complete immersive monitoring solution, suitable for Dolby Atmos HE configurations such as 7.1.4 and 9.1.4, as well as full Atmos theatrical multi-channel systems. The Dynaudio M3FX is available in dedicated left-right and centre channel versions.
Its bass section features four 300mm Magnesium Silicate Polymer (MSP) drivers, each with 100mm ferrofluid-cooled voice coils for low distortion performance. The midrange is handled by two 170mm drivers with 75mm voice coils and neodymium magnets. High frequencies are reproduced by the D260H soft-dome tweeter with an integrated short waveguide. A high-power passive crossover is used internally to connect the mid and high-frequency drivers.
Supplied as a two-way active system, the Dynaudio M3FX Centre is best powered by Dynaudio Acoustics DA Series amplifiers with onboard DSP, or the DCA Series with integrated filter networks.
When you’re in the mix position, every decision reflects your reputation and the artist’s. You both know that what goes in must come out, perfectly. Audio professionals at many of the world’s leading studios trust Dynaudio Acoustics M-series monitors. These passive speakers are built to meet the highest demands in power, accuracy and SPL, making them ideal for stereo, immersive, broadcast, dubbing and film work.
The MkII range features upgraded components throughout, including new crossovers, MSP woofers, precision-coated soft-dome midrange drivers and the renowned Esotar 3 tweeter. This results in even greater clarity and the ability to hear critical details, even in the most complex mixes.
Each model is available in a range of finishes, with custom options also offered. M-series monitors are used by Grammy, Oscar and BAFTA-winning engineers at studios such as Abbey Road, NRG, AIR, Netflix and Disney.
Download the User Manual in PDF format.
