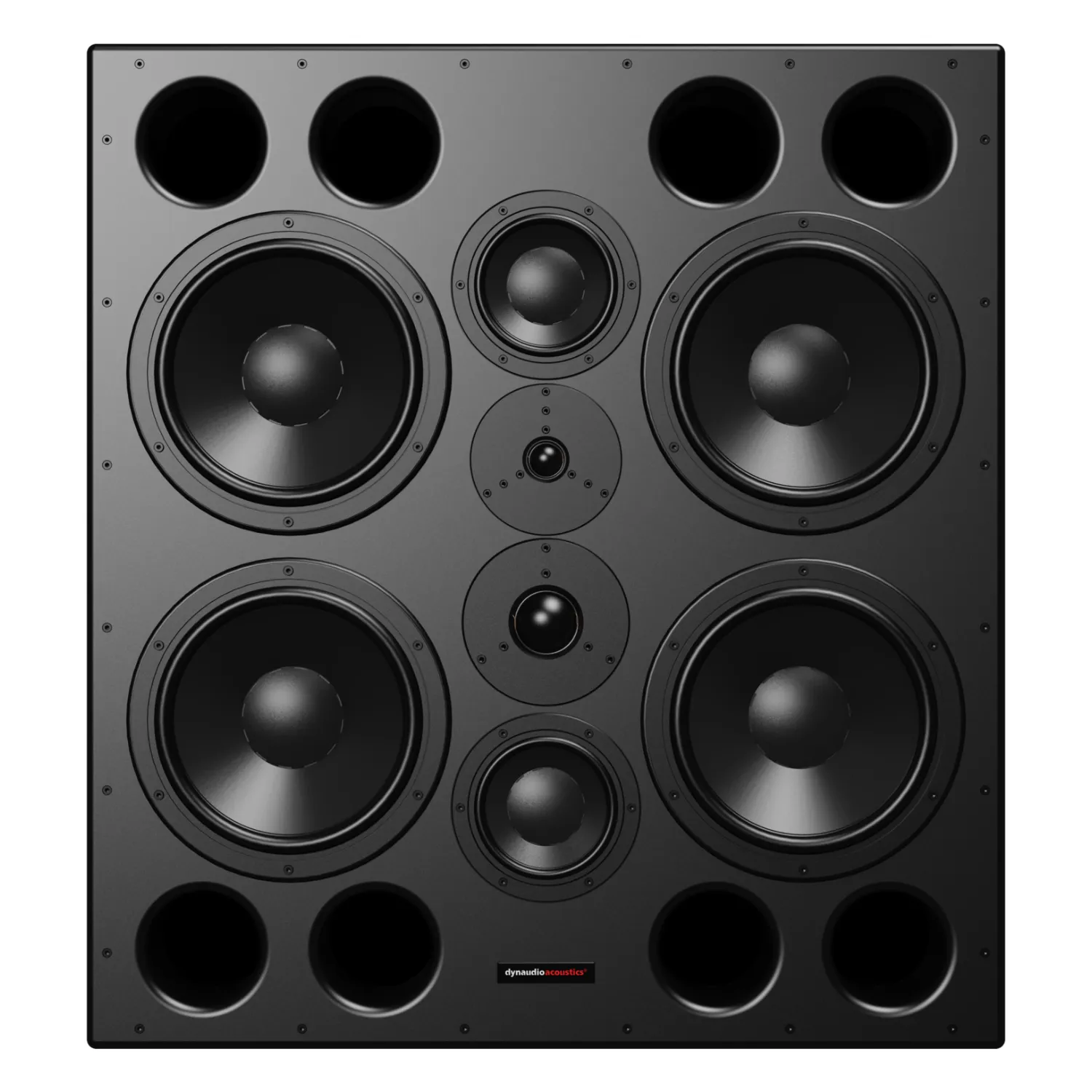

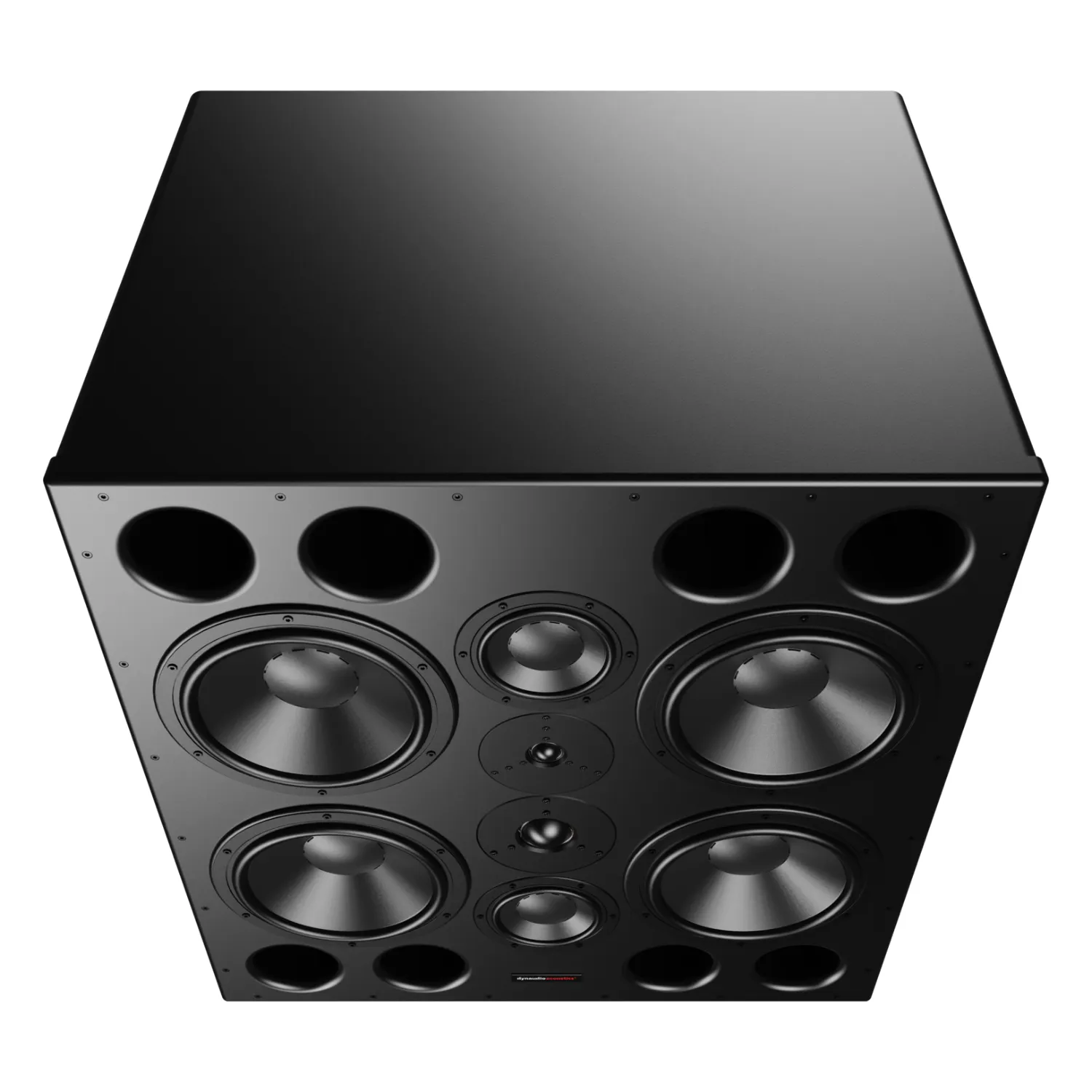

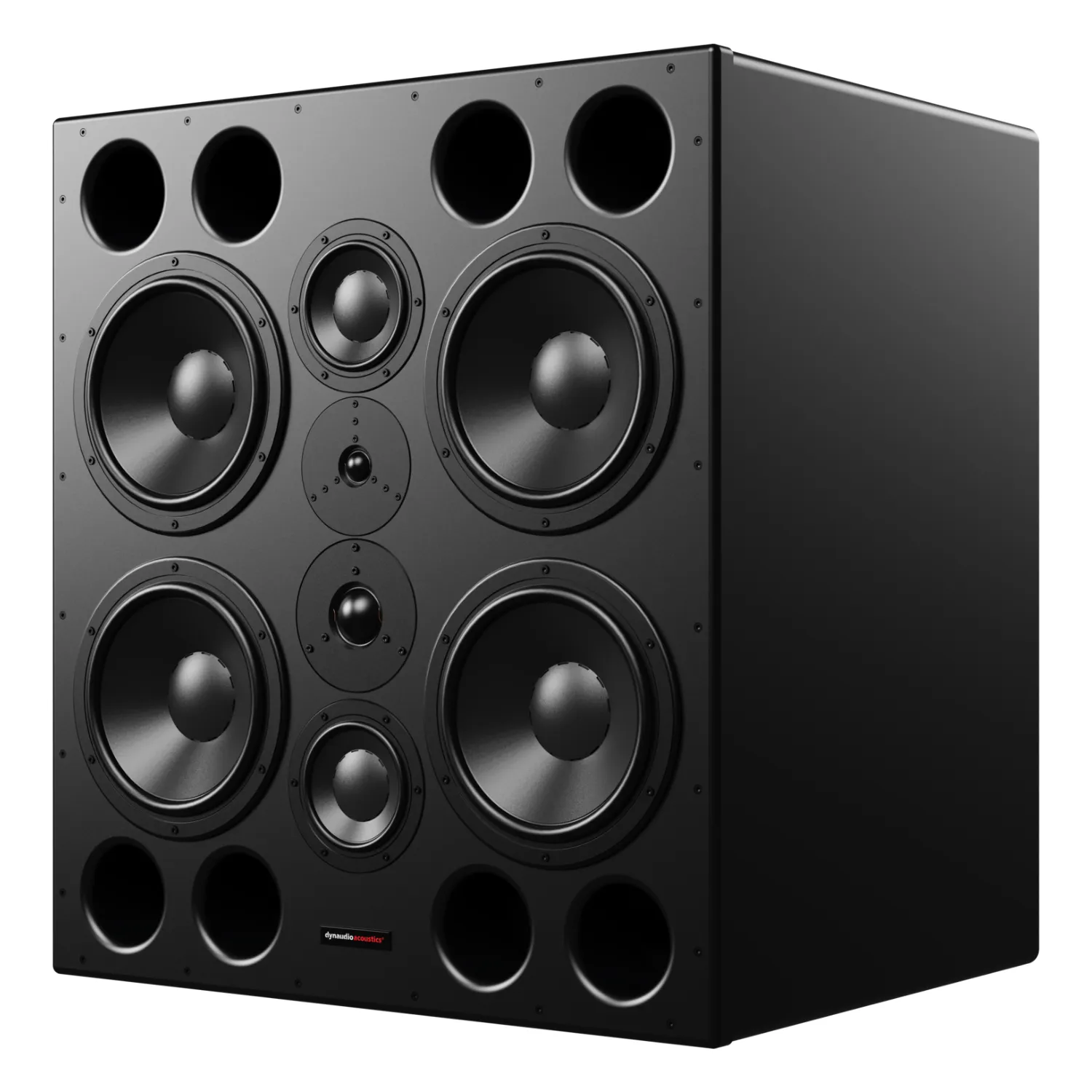

Dynaudio M4 MkII High-Power Reference Monitor

The Dynaudio M4 MkII is a high-power monitor for large studios, delivering accurate, distortion-free sound at high volumes. It features four 300mm woofers, dual 170mm low-mids, a 54mm Esotar midrange driver and the Esotar3 tweeter. A compact version with two woofers is available for smaller rooms.

Dynaudio M4 MkII High-Power Reference Monitor

The Dynaudio M4 MkII is a high-performance, high-power loudspeaker system developed by Dynaudio Acoustics for large-scale music studio monitoring. It delivers accurate, distortion-free sound at high levels, maintaining consistent quality across all drive conditions.

The Dynaudio M4 MkII features four 300mm MSP woofers with 100mm ferrofluid-cooled voice coils for the low end. The low-mid section includes two 170mm MSP drivers with 75mm voice coils and neodymium magnets. A 54mm critically doped fabric-dome Esotar driver handles upper midrange with low distortion and fast transient response.

High frequencies are reproduced by the Esotar3 tweeter, capable of handling transients up to 1000 watts. Both Esotar units use enhanced double-magnet motor systems, and a high-power passive crossover links the high-mid and tweeter.

When you’re in the mix position, every decision reflects your reputation and the artist’s. You both know that what goes in must come out, perfectly. Audio professionals at many of the world’s leading studios trust Dynaudio Acoustics M-series monitors. These passive speakers are built to meet the highest demands in power, accuracy and SPL, making them ideal for stereo, immersive, broadcast, dubbing and film work.

The MkII range features upgraded components throughout, including new crossovers, MSP woofers, precision-coated soft-dome midrange drivers and the renowned Esotar 3 tweeter. This results in even greater clarity and the ability to hear critical details, even in the most complex mixes.

Each model is available in a range of finishes, with custom options also offered. M-series monitors are used by Grammy, Oscar and BAFTA-winning engineers at studios such as Abbey Road, NRG, AIR, Netflix and Disney.

Specifications

  • Application: Music recording and mixing
  • Type: 4-way hybrid
  • Frequency response: 35Hz – 20kHz
  • Maximum SPL at 2 metre: 130dB stereo
  • Crossover frequencies: 250Hz, 2kHz, 5kHz
  • Total harmonic distortion: 1% at 90dB
  • Recommended amplifier power: Four channels, 500–1000W per channel per speaker
  • Cabinet dimensions: 900mm x 850mm x 680mm
  • Weight: 97kg
  • Finish: Black textured paint
  • High frequency driver: Esotar 3
  • High mid driver: 56mm soft dome
  • Low mid drivers: 2 x 17cm MSP
  • Low frequency drivers: 4 x 30cm MSP
  • Amplifier recommendation: Dynaudio Acoustics DA40/80 DSP, DCA800/1400
  • Options: Hardwood cabinet, custom cabinet sizes on request (available in oak, cherry, walnut, maple)

User Manual

Download the User Manual in PDF format.
