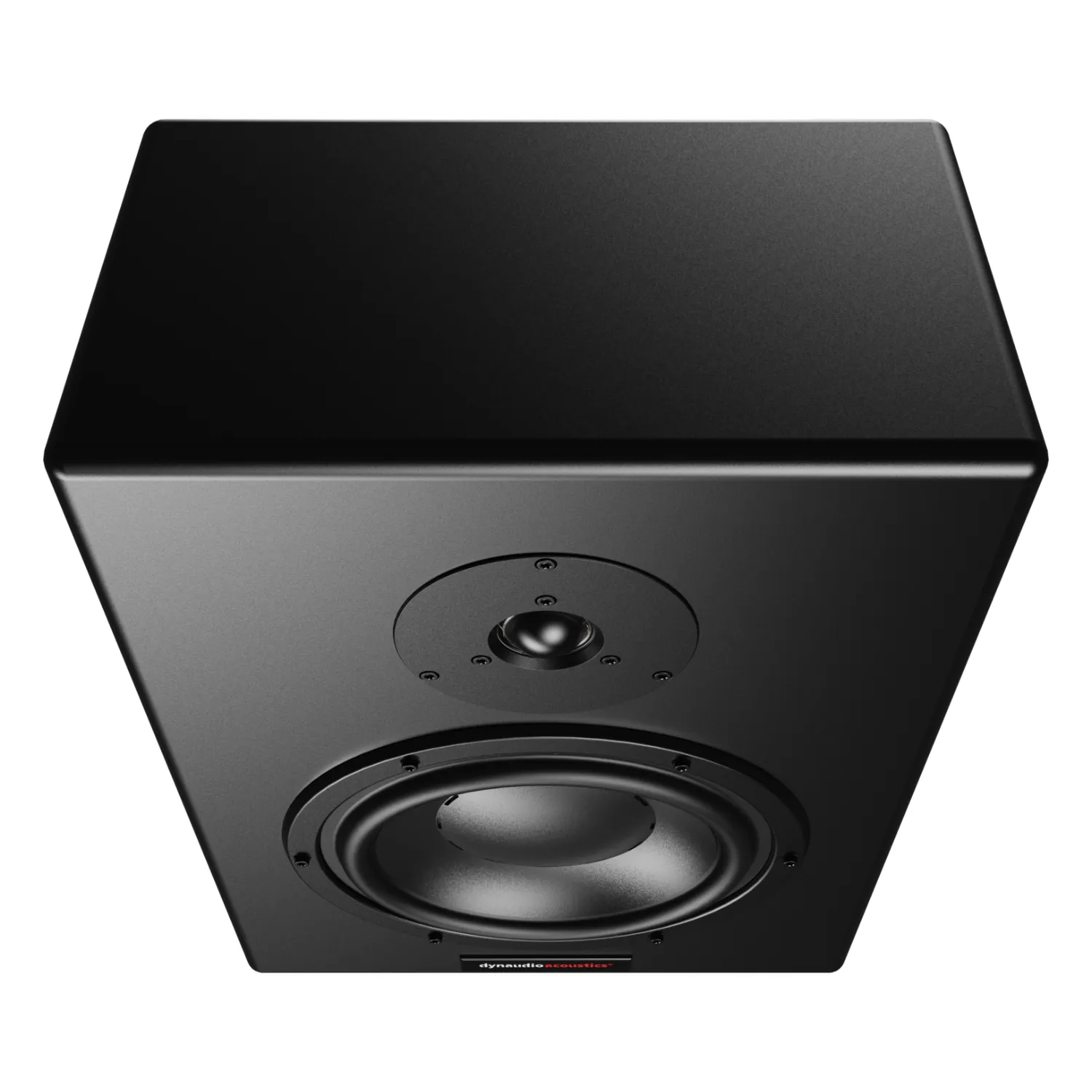

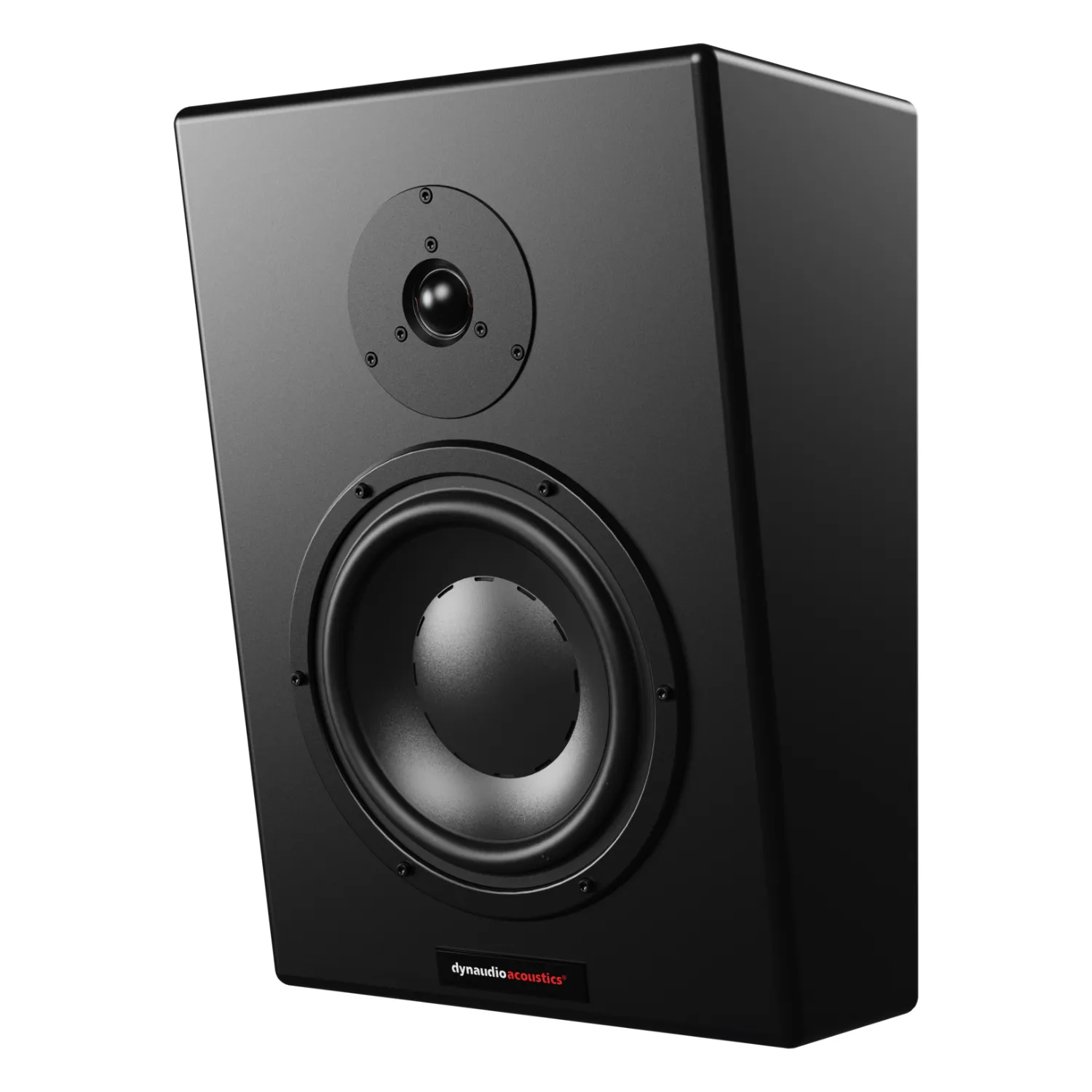

Dynaudio MF15 Compact Surround Monitor

The Dynaudio MF15 is a compact passive surround speaker for immersive audio, ideal for Dolby Atmos HE setups. Its shallow design suits low-ceiling rooms, and it integrates seamlessly with M-series speakers and MS subwoofers. Available in vertical, horizontal, or custom formats.

Dynaudio MF15 Compact Surround Monitor

The Dynaudio MF15 is a compact passive surround speaker designed for immersive audio setups in music and post-production, making it ideal for Dolby Atmos HE 7.1.4 and 9.1.4 configurations.

Its shallow enclosure allows easy installation, particularly in smaller rooms with low ceilings. The Dynaudio MF15 integrates seamlessly with all M-series speakers and MS subwoofers, ensuring consistent sound movement across the entire theatre space.

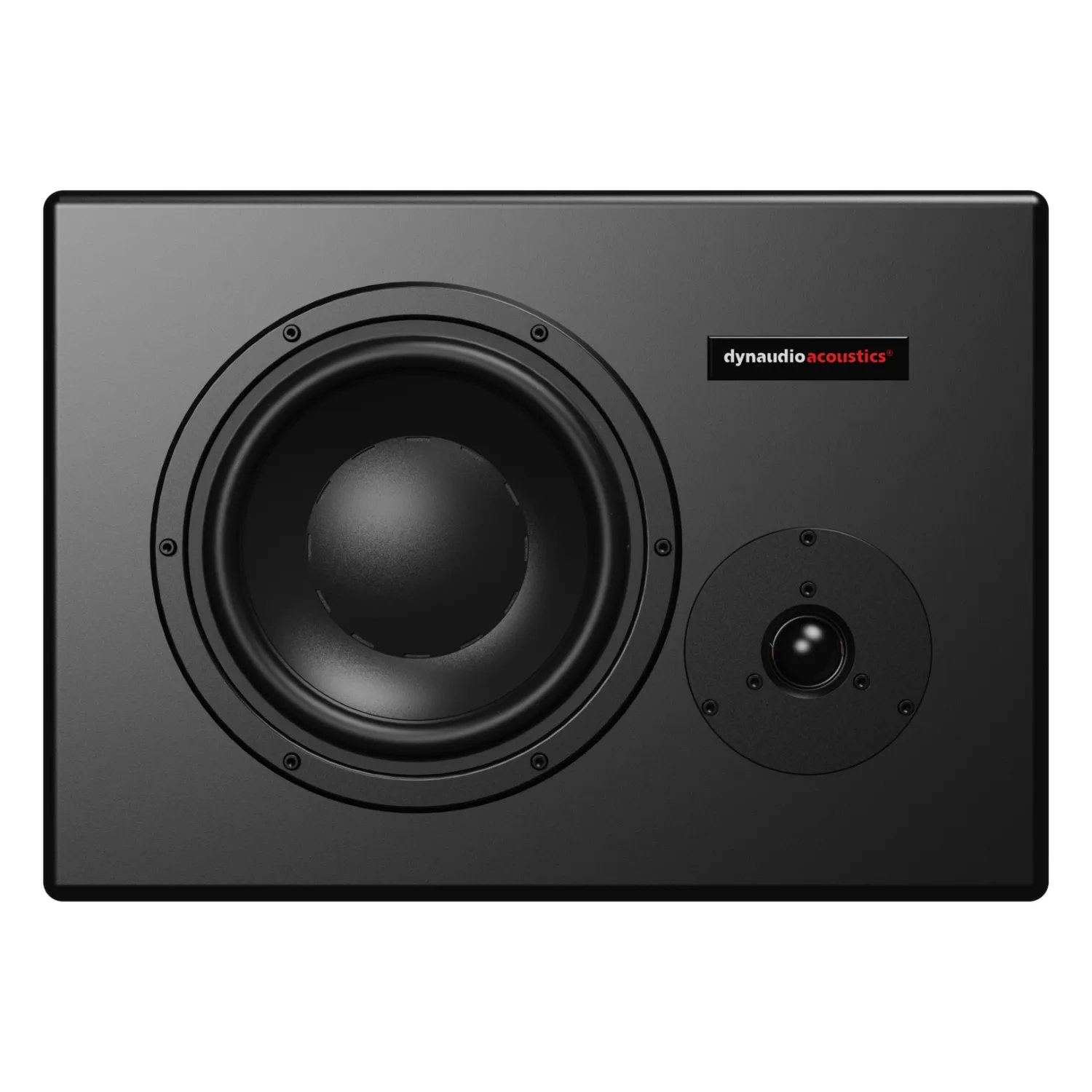

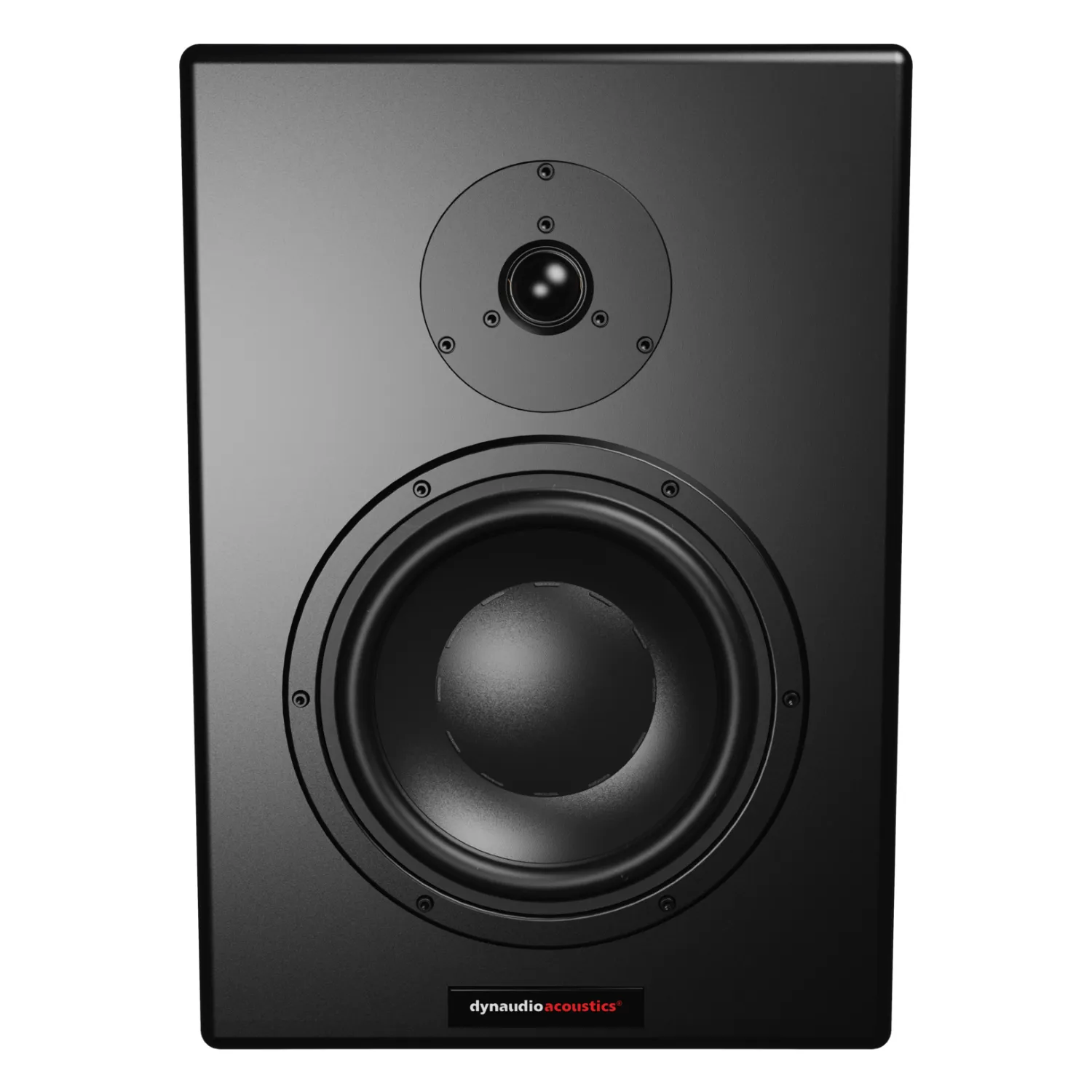

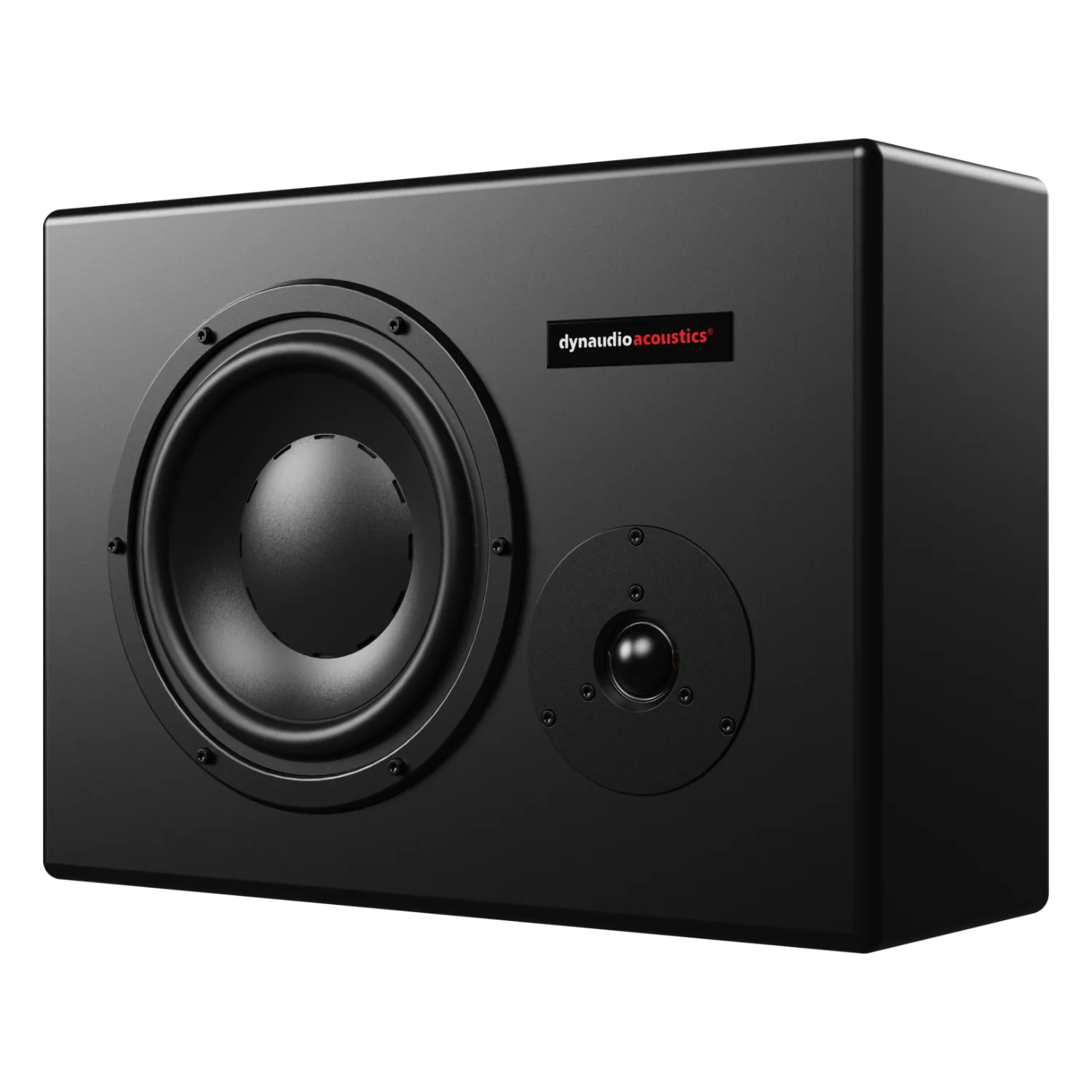

Available in both horizontal and vertical formats, the Dynaudio MF15 can also be custom-configured to suit a wide range of installation needs.

When you’re in the mix position, every decision reflects your reputation and the artist’s. You both know that what goes in must come out, perfectly. Audio professionals at many of the world’s leading studios trust Dynaudio Acoustics M-series monitors. These passive speakers are built to meet the highest demands in power, accuracy and SPL, making them ideal for stereo, immersive, broadcast, dubbing and film work.

The MkII range features upgraded components throughout, including new crossovers, MSP woofers, precision-coated soft-dome midrange drivers and the renowned Esotar 3 tweeter. This results in even greater clarity and the ability to hear critical details, even in the most complex mixes.

Each model is available in a range of finishes, with custom options also offered. M-series monitors are used by Grammy, Oscar and BAFTA-winning engineers at studios such as Abbey Road, NRG, AIR, Netflix and Disney.

Specifications

  • Application: Music and post-production
  • Type: 2-way passive surround
  • Frequency response: 60Hz – 20kHz
  • Maximum SPL at 1 metre: 114dB
  • Crossover frequency: 2000Hz
  • Total harmonic distortion: 1% at 90dB
  • Sensitivity: 90dB / 2.83V / 1m
  • Impedance: 4 Ohms
  • Recommended amplifier power: 100–500W
  • Cabinet dimensions:
    • Centre: 320mm x 452mm x 178mm
    • Vertical: 452mm x 320mm x 204mm
  • Weight: 10kg
  • Finish: Textured black paint
  • Fixing: 4 x M8 threaded inserts on rear panel for bracket mounting
  • High frequency driver: 28mm soft-dome
  • Low frequency driver: 24cm MSP
  • Amplifier recommendation: Dynaudio Acoustics DA20 4-channel
  • Options: Hardwood cabinet, custom cabinet sizes on request (available in oak, cherry, walnut, maple)

User Manual

Download the User Manual in PDF format.
