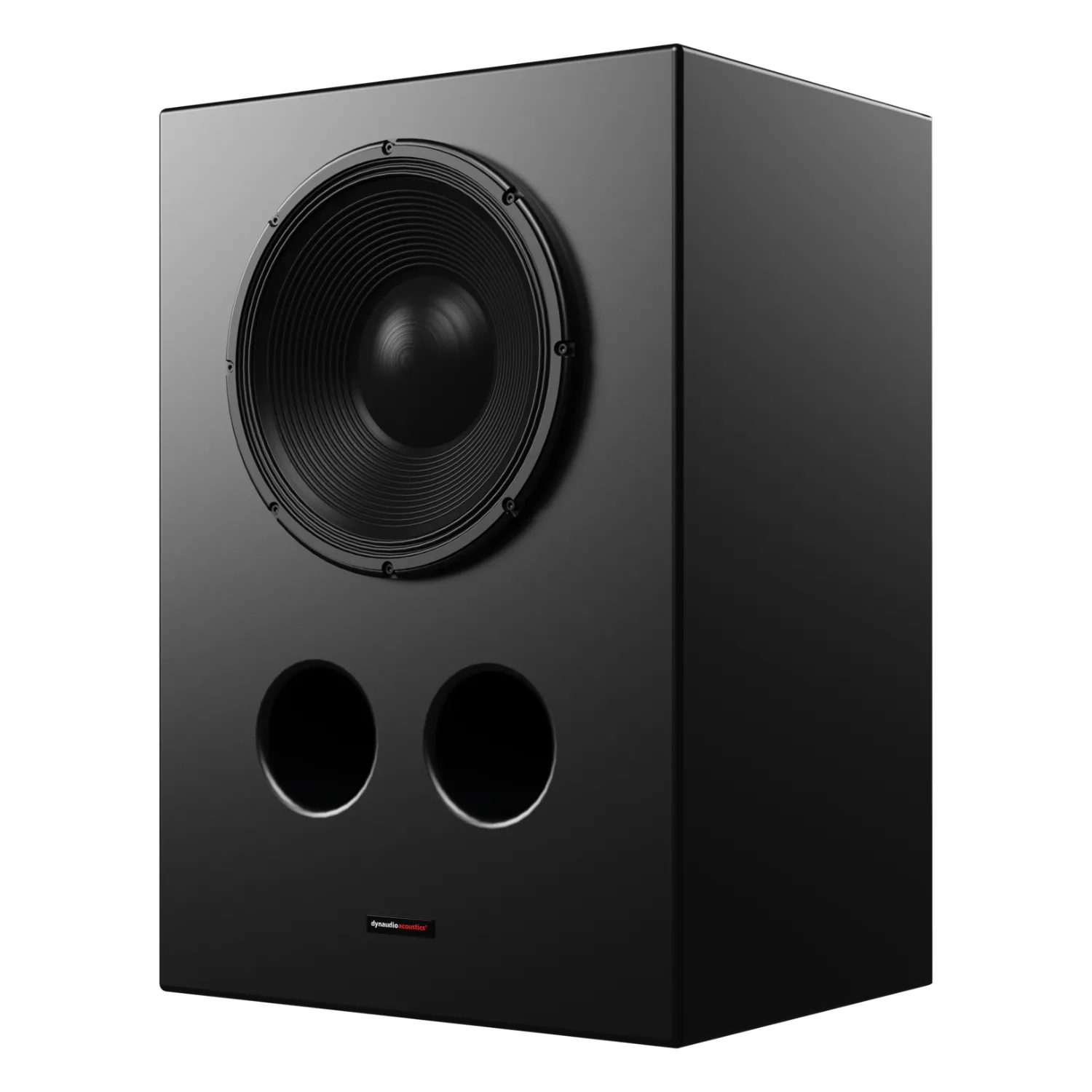

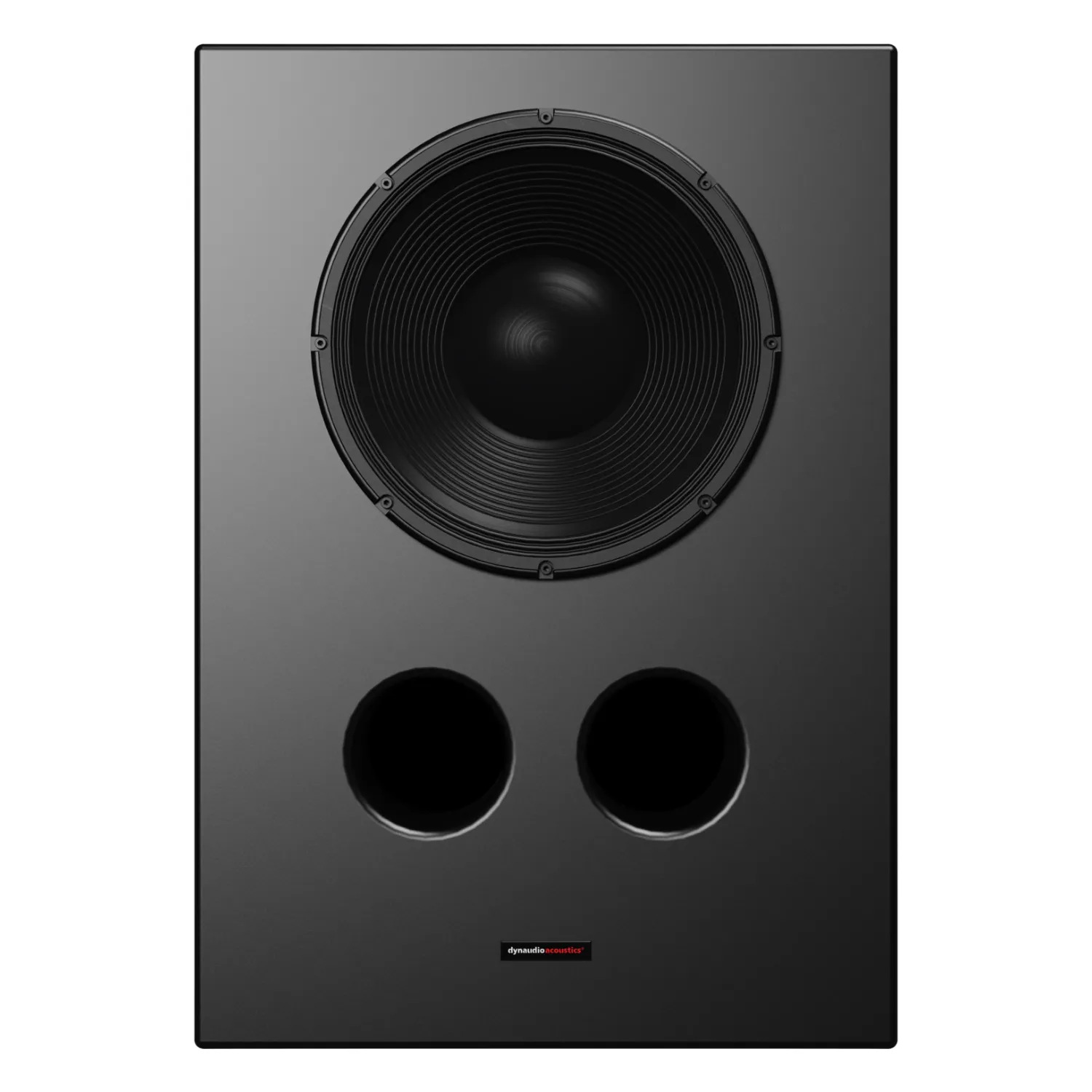

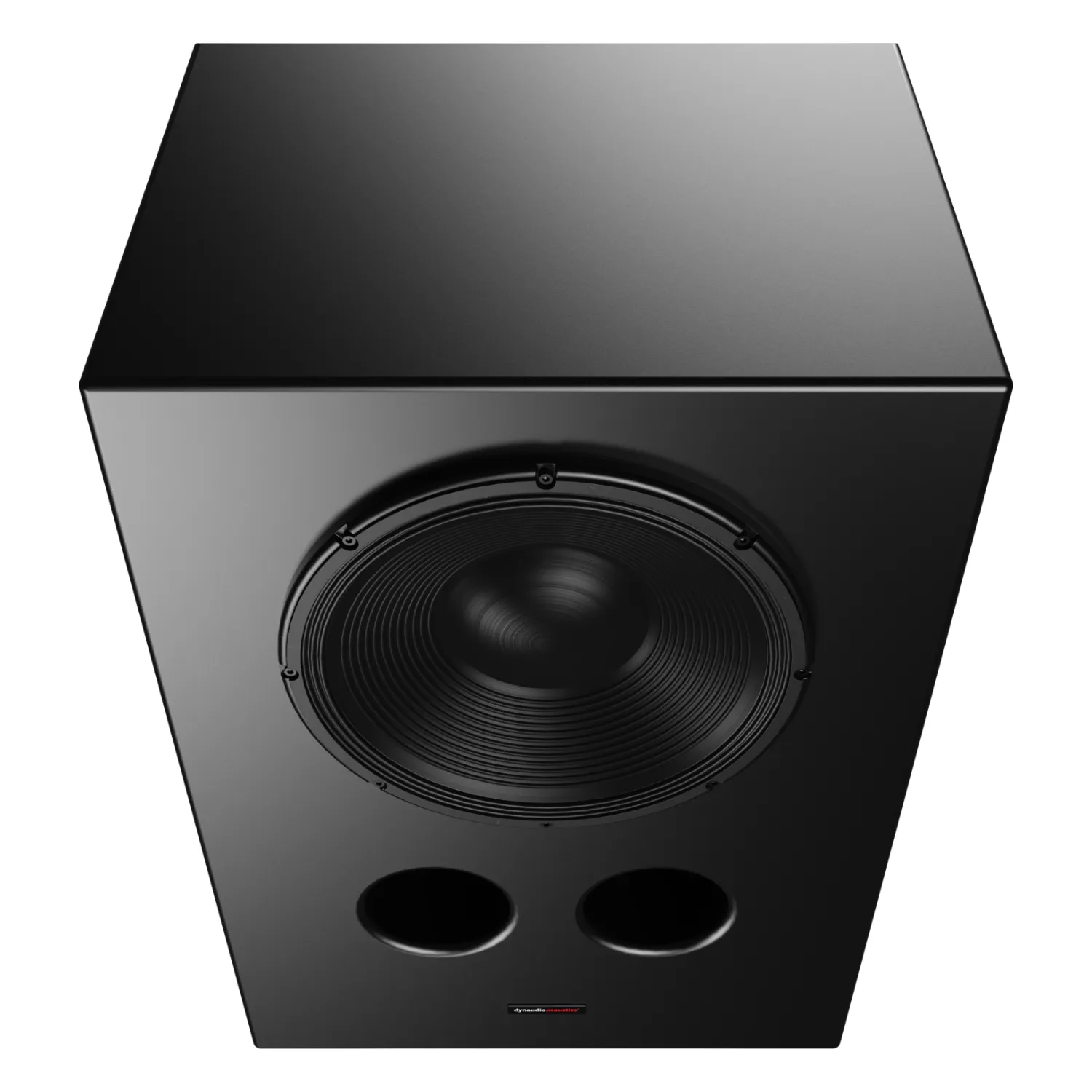

Dynaudio MS18 Passive Subwoofer

The Dynaudio MS18 is a powerful subwoofer for film and TV post-production, supporting Dolby Atmos HE and full theatrical formats. Its flexible enclosure allows for ceiling mounting or low-profile installation in tight spaces.

Dynaudio MS18 Passive Subwoofer

The Dynaudio MS18 is a high-powered subwoofer designed for film and television post-production studios. It supports immersive monitoring formats including Dolby Atmos HE 7.1.4, 9.1.4, and full Atmos theatrical multi-channel systems.

The Dynaudio MS18 enclosure, which houses a single 18-inch driver, can be configured for a range of installation scenarios, including ceiling mounting for low-frequency reinforcement in Atmos arrays or low-profile placement in space-limited environments.

When you’re in the mix position, every decision reflects your reputation and the artist’s. You both know that what goes in must come out, perfectly. Audio professionals at many of the world’s leading studios trust Dynaudio Acoustics M-series monitors. These passive speakers are built to meet the highest demands in power, accuracy and SPL, making them ideal for stereo, immersive, broadcast, dubbing and film work.

The MkII range features upgraded components throughout, including new crossovers, MSP woofers, precision-coated soft-dome midrange drivers and the renowned Esotar 3 tweeter. This results in even greater clarity and the ability to hear critical details, even in the most complex mixes.

Each model is available in a range of finishes, with custom options also offered. M-series monitors are used by Grammy, Oscar and BAFTA-winning engineers at studios such as Abbey Road, NRG, AIR, Netflix and Disney.

Specifications

  • Application: Film and television post-production
  • Type: Subwoofer
  • Frequency response: 25Hz – >500Hz
  • Maximum SPL at 1 metre: 130dB
  • Sensitivity: 97dB / 2.83V / 1m
  • Impedance: 8 Ohms
  • Driver: 460mm fibre-loaded cone
  • Recommended amplifier power: 500–3000 watts
  • Cabinet dimensions: 1000mm x 700mm x 550mm
  • Weight: 75kg
  • Finish: Black textured paint
  • Amplifier recommendation: Dynaudio Acoustics DA80 or DCA1400

User Manual

Download the User Manual in PDF format.
