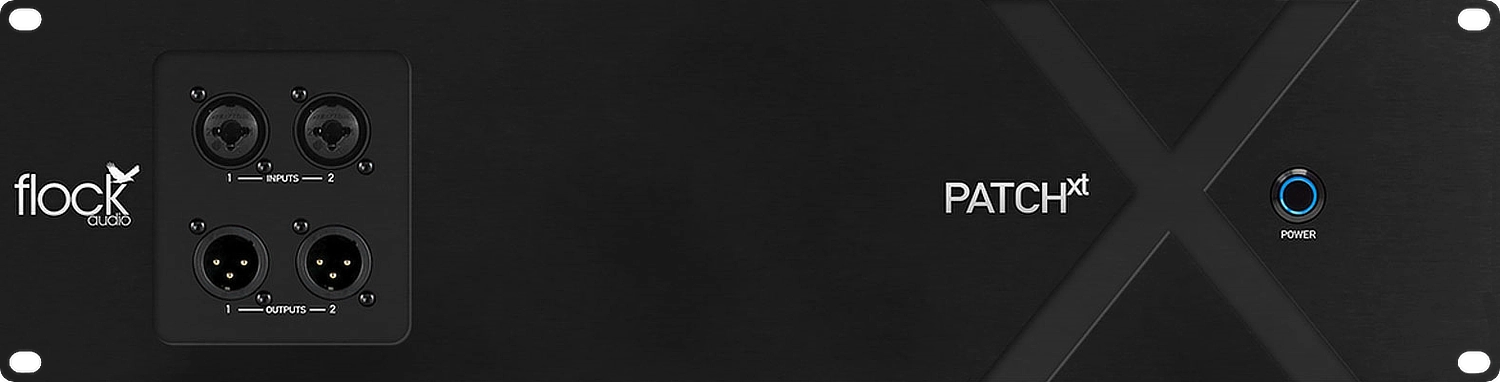

Flock Audio Patch XT

The highly anticipated and long-awaited Flock Audio Patch XT System harnesses the advanced analog routing technology of the PATCH Series of products in a mammoth I/O configuration of 192 Points (96 Inputs / 96 Outputs).

Flock Audio Patch XT

Meticulously designed, the Flock Audio Patch XT System was created for power users who need to get the most out of their analog hardware routing capabilities.

Equipped with the same Patented Matrix Technology as our flagship model PATCH, the XT System boasts some sought-after upgrades including Locking USB Host Connector, CAT5 Ethernet Network Host Connector option, and beautifully machined anodized panel – among many other upgrades.

Features

  • Computer Connectivity: USB 2.0
  • Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
  • Software: PATCH APP v2.0 (Online Download) – *iOS iPad Coming Soon*
  • Chassis: 3U Rackmount (13″ Deep)
  • Patch Point Connections: 192 Total – 96 Inputs / 96 Outputs (Expandable with all PATCH Models)
  • 48v Phantom Power: 32 Channels Independently Controllable
  • Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
  • D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
  • Routing System: Patended Flock Audio Matrix Technology
  • Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
  • Warranty: 1 Year Total System + Included Cables Manufacturers Warranty

Flock Audio Patch XT Reviews

Flock Audio’s PATCH Series is a true modern-day replacement for the traditional analogue patchbay, offering digitally controlled, fully analogue routing with silent, instantaneous switching and flawless signal integrity. After hands-on use with both the PATCH and PATCH VT models, it’s clear these systems bring a remarkable level of flexibility and convenience to studio workflows. Setup is straightforward, the PATCH APP is intuitive and powerful, and the ability to save and recall complex routings transforms mix session efficiency. While the DB25 connectivity demands careful planning and investment in cabling, the trade-off is a clean, scalable, and future-ready system. Most impressively, the PATCH performs all routing changes without a single click, pop, or audible artefact, something few, if any, analogue systems can claim. For professionals seeking uncompromised signal routing with digital ease, the PATCH Series is in a class of its own.

Specifications

  • Dimensions: 3U – 5.25”(H) x 19” (L) x 13” (D)
  • Weight: 35 lbs

User Manual

Download the User Manual in PDF format.
