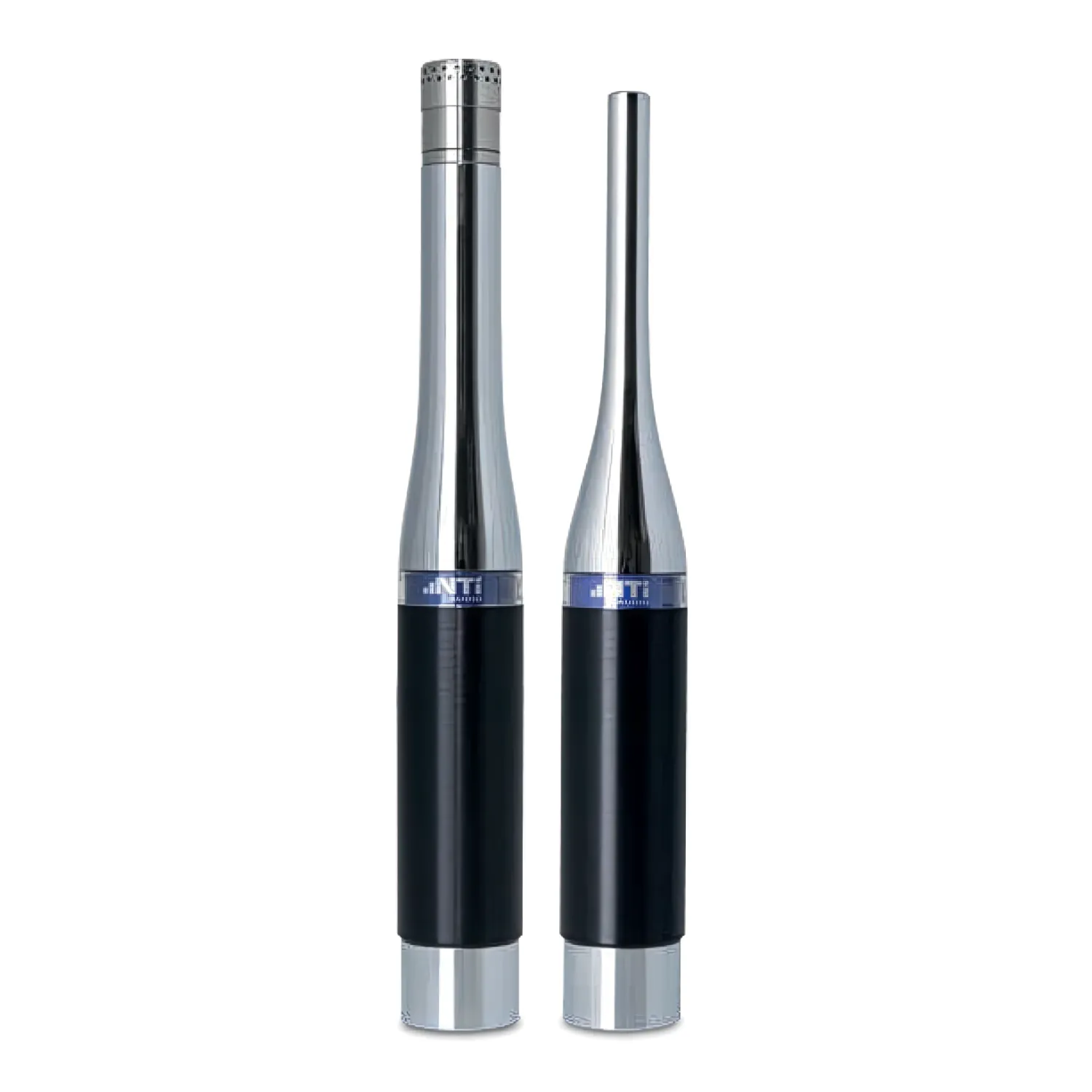

NTI Audio M2230 Measurement Microphone

The NTI Audio M2230 is a Class 1 measurement microphone designed for high-precision acoustic analysis in combination with the XL2 or XL3 Sound Level Analyzers. Built to comply with the IEC 61672 standard, the NTI Audio M2230 features a robust metal diaphragm and is suitable for type-approved measurements when used with the XL2-TA system. Its omni-directional, free-field response ensures reliable performance across a wide frequency range from 5 Hz to 20 kHz.

The NTI Audio M2230 includes an integrated electronic data sheet containing model identification, sensitivity, and calibration information. When connected to a compatible analyzer, this data is automatically recognised via NTi Audio’s Automated Sensor Detection (ASD) system, guaranteeing accurate and consistent measurement results every time. Powered via standard 48 V phantom power, the NTI Audio M2230 offers dependable operation for noise assessments, building acoustics, environmental monitoring, and other professional measurement tasks.

Features

• Class 1 measurement microphone compliant with IEC 61672
• Type-approved when used with the XL2-TA
• Omni-directional, free-field response for consistent acoustic measurement
• Wide frequency range from 5 Hz to 20 kHz
• Robust metal diaphragm for durability in professional use
• 48 V phantom powered
• Automated Sensor Detection (ASD) for instant recognition of model, sensitivity, and calibration data when connected to XL2 or XL3 analyzers

Outdoor Measurement Microphones
The Outdoor Measurement Microphones offer a weather-protected measurement solution for the Sound Level Meter allowing acquisition of environmental noise data in outdoor applications. The corrosion-free polymer housing, wind screen, waterrepellent membrane and bird spike provide excellent protection from rain, wind, dust and perching birds.

The Outdoor Measurement Microphones M2230-WP and M2340-WP fulfill the Class 1 requirements according to IEC 61672 and ANSI S1.4 for horizontal and vertical sound incidence. For compliance with horizontal sound incidence a spectral correction is employed in the associated Sound Level Meter. The Outdoor Measurement Microphone M4262-WP fulfills the Class 2 requirements accordingly.

The outdoor microphones consist of a measurement microphone and the applicable weather protection:

• M2230-WP: M2230 + WP40-90 Weather Protection
• M2340-WP: M2340 + WP40-90 Weather Protection
• M4262-WP: M4262 + WP62 Weather Protection

Outdoor Measurement Microphones Features

• Class 1 and Class 2 Outdoor Measurement Microphones for horizontal and vertical sound incidence according IEC 61672 and ANSI S1.4
• Excellent protection from rain and dust (IP54), wind and perching birds
• Built from corrosion-free materials
• Removable top section for easy microphone calibration
• Standard tripod mount, optional pole mount
• Effective outdoor protection

The 90 mm wind screen protects the measurement microphone from rain and dust while reducing wind-induced noise. The seamless design of the water-repellent membrane under the wind screen ensures perfect protection from rain and dust.
