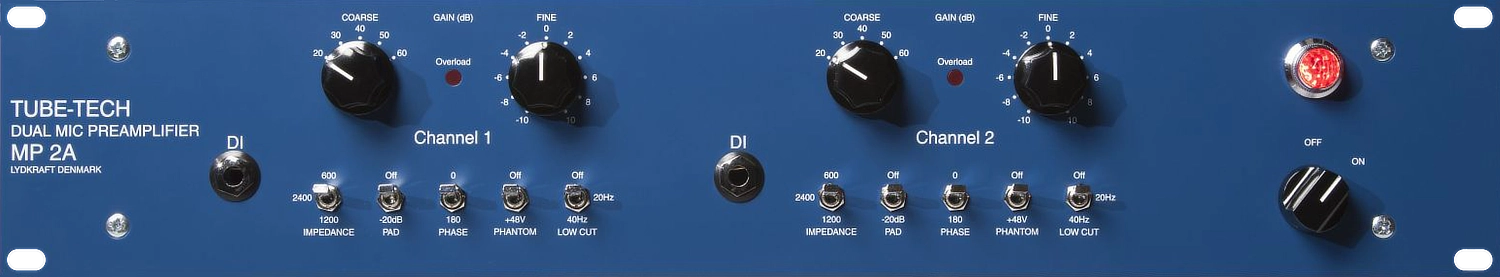

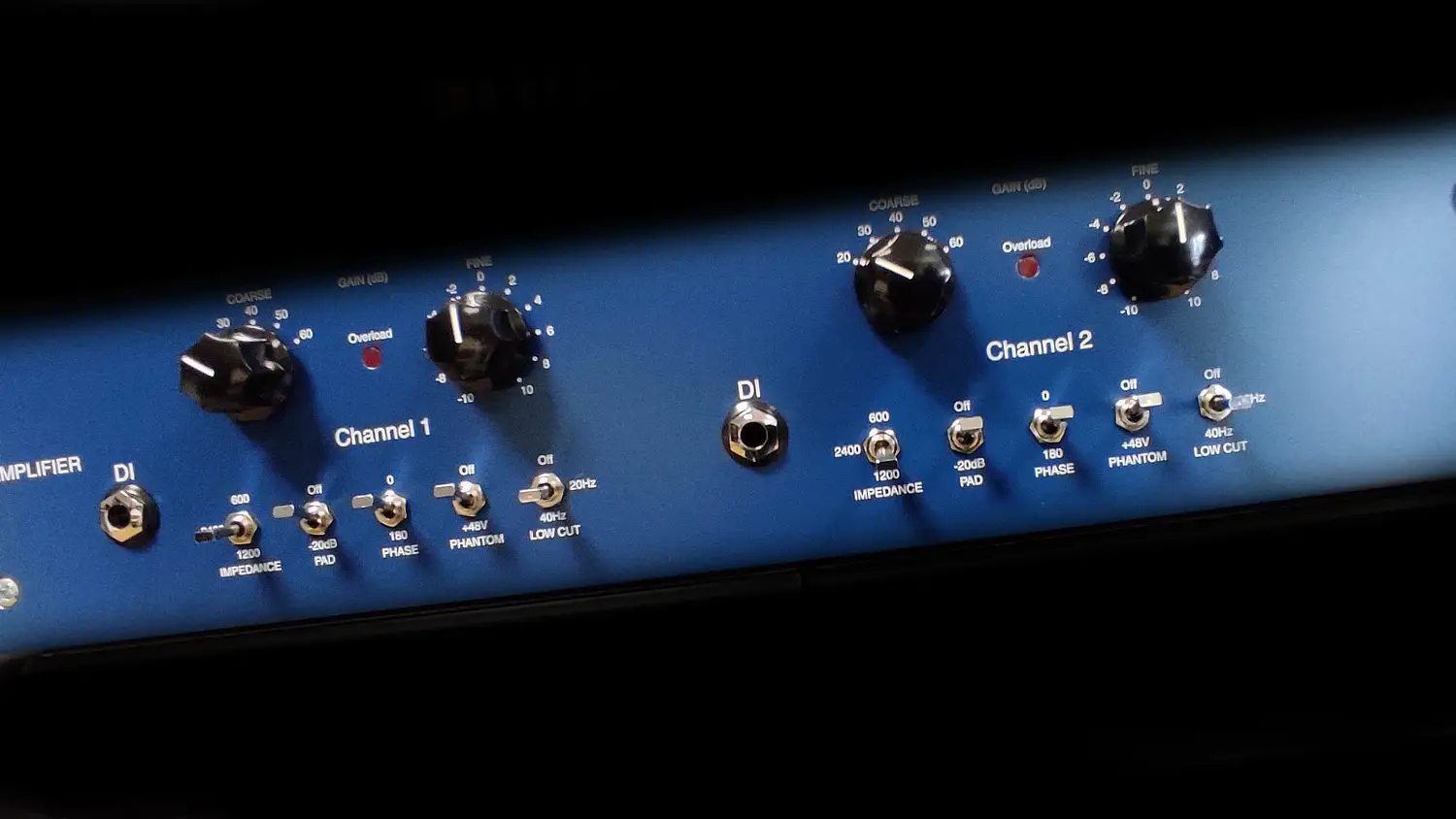

Tube-Tech MP 2A Dual Mic Preamplifier & DI

The Tube-Tech MP 2A Dual Mic Preamplifier & DI is a versatile mic preamp and DI, rooted in a classic TUBE-TECH design but with enhanced fidelity and added features. It includes an impedance switch for optimal input matching with various microphones, an overload indicator, and precise 2 dB gain steps for fine control.

Tube-Tech MP 2A

Tube-Tech MP 2A Dual Mic Preamplifier & DI

The Tube-Tech MP2A is the second release in TUBE-TECH’s upgraded range of mic preamp/DIs, following the modular PM1A. These new preamps offer greater headroom and fidelity compared to previous models, with extensive listening tests placing the MP2A among the top preamp designs in the world.

Continuing Tube-Tech’s legacy of exceptional DI quality, the Tube-Tech MP2A provides world-class sound for bass and guitar recordings, making it a standout choice for direct instrument capture.

Tube-Tech MP 2A Dual Mic Preamplifier & DI Features:

  • Combined Microphone Preamplifier and Direct Instrument amplifier
  • Switchable +48 V phantom power
  • Selectable mic impedance: 600/1200/2400 Ohm
  • Phase reverse switch
  • Low-cut filter: 20 Hz, 40 Hz, off
  • Switchable -20 dB pad
  • Adjustable gain: +10 dB to +70 dB (10 dB coarse steps, +2 dB fine steps)
  • Direct Instrument Input (unbalanced): gain from +10 dB to +60 dB
  • All-tube amplifier
  • Input transformer enclosed in MU-metal can for shielding
  • Balanced and fully floating input and output transformers with static screen
  • All-tube design with push-pull output amplifier

Specifications

  • Frequency response @ -3 dB: 5 Hz to 60 kHz
  • Typical noise: 5 dB @ 200Ω
  • CMRR: > 60 dB @ 10 kHz
  • Gain: +10 dB to +70 dB in 2 dB steps – DI gain: 0-60 dB
  • Selectable mic input impedance: 600 Ω/1.2 kΩ/2.4 kΩ
  • Selectable pad in front of input transformer (-20 dB)
  • Selectable +48 V phantom power
  • Low cut filter (20 Hz/40 Hz/Off)
  • Phase reverse
  • Overload indicator
  • Gold plated switches
  • DI jack input for a variety of instruments
  • DI input impedance > 1 MΩ
  • MU-metal shielded input transformer
  • In- and outputs are transformer balanced and fully floating

User Manual

Download the User Manual in PDF format.

Ordering

SKU TTMP2A Categories , Tag

Original price was: $7,355.Current price is: $7,134. Inc GST
