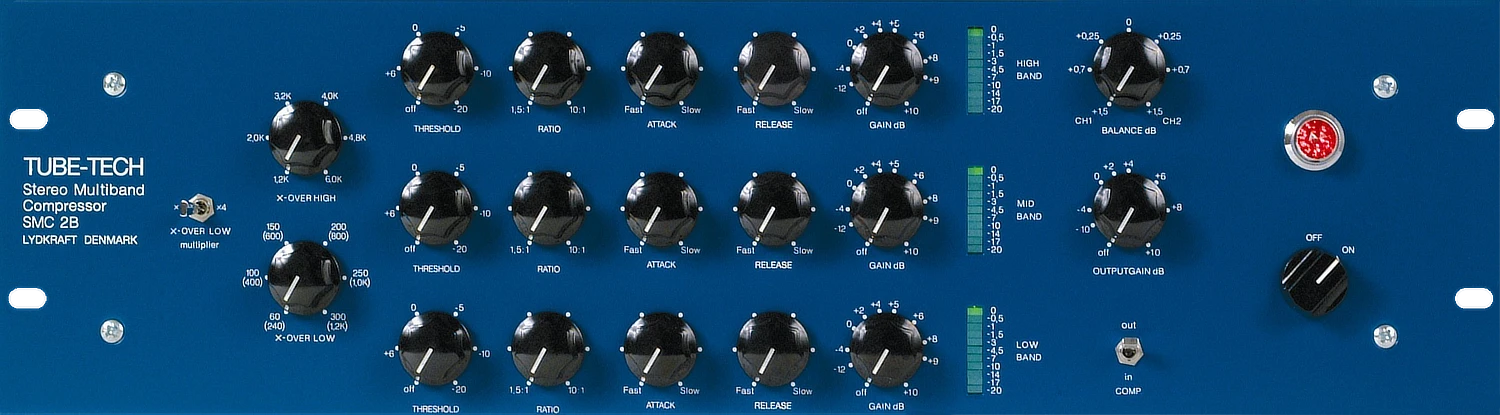

Tube-Tech SMC 2B Compressor

The Tube-Tech SMC 2B Stereo Multiband Compressor houses three independent optical stereo compressors. This unique design combines broad 3-band level control with individual compression for each band, creating a distinct sound that’s perfect for the main mix bus, submixes like drum busses, instrument groups, and individual tracks.

The Tube-Tech SMC 2B is an audio processor that’s hard to remove once you’ve tried it—it brings colour and dynamics to your source material, often becoming a permanent insert in the chain. Whether for mixing or live sound, the Tube-Tech SMC 2B delivers a richness and musicality that’s unmatched, making it a favourite for top touring acts.

As a bonus, the Tube-Tech SMC 2B also excels at handling troublesome frequencies in bass, vocals, and more. It can be set up as a de-esser and is particularly effective for managing dynamic vocalists without spending hours on post-recording adjustments.

The Tube-Tech SMC 2B stands out as one of the most creative and musical tools available, loved by sound engineers worldwide.

The Tube-Tech SMC 2B Stereo Multiband Compressor offers precise control with variable crossover points for each of its three opto-compression bands. Each band has independent Threshold, Ratio, Attack, Release, and Gain controls, making the SMC 2B both versatile and accurate.

The Tube-Tech SMC 2B divides the audio signal into three bands—Low, Mid, and High—using 6 dB/octave crossover networks with adjustable frequencies: 60-1200 Hz for the Low/Mid band and 1.2-6 kHz for the Mid/High band.

This crossover design ensures optimal summing of the three bands, achieving a flat frequency response (within +/-0.25 dB) when each band’s gain controls are set equally.

Each compressor band is equipped with Threshold, Ratio, Attack, Release, and Gain parameters, along with a display showing gain reduction. The master levels are adjusted using Output Gain and Balance controls.

Both input and output are balanced, with fully floating transformers that include a static screen. The power supply and sidechain circuit are based on a solid-state design, with stabilised DC voltages for all stages except the output stage.

Mastering Version
The Tube-Tech SMC 2BM is the mastering edition of the renowned Tube-Tech SMC 2B Stereo Multiband Compressor. In the SMC2BM, all audio controls are equipped with high-quality switches and precision resistors, guaranteeing exceptional accuracy and easy recall of settings.

The SMC2BM has become a top choice for many leading mastering engineers worldwide, delivering the same iconic sound as the Tube-Tech SMC 2B.
