d&b Audiotechnik 44S Loudspeaker

Name: d&b Audiotechnik 44S Loudspeaker
Brand: Production Audio
SKU: DBA44S
Price: 3649 AUD
Availability: InStock

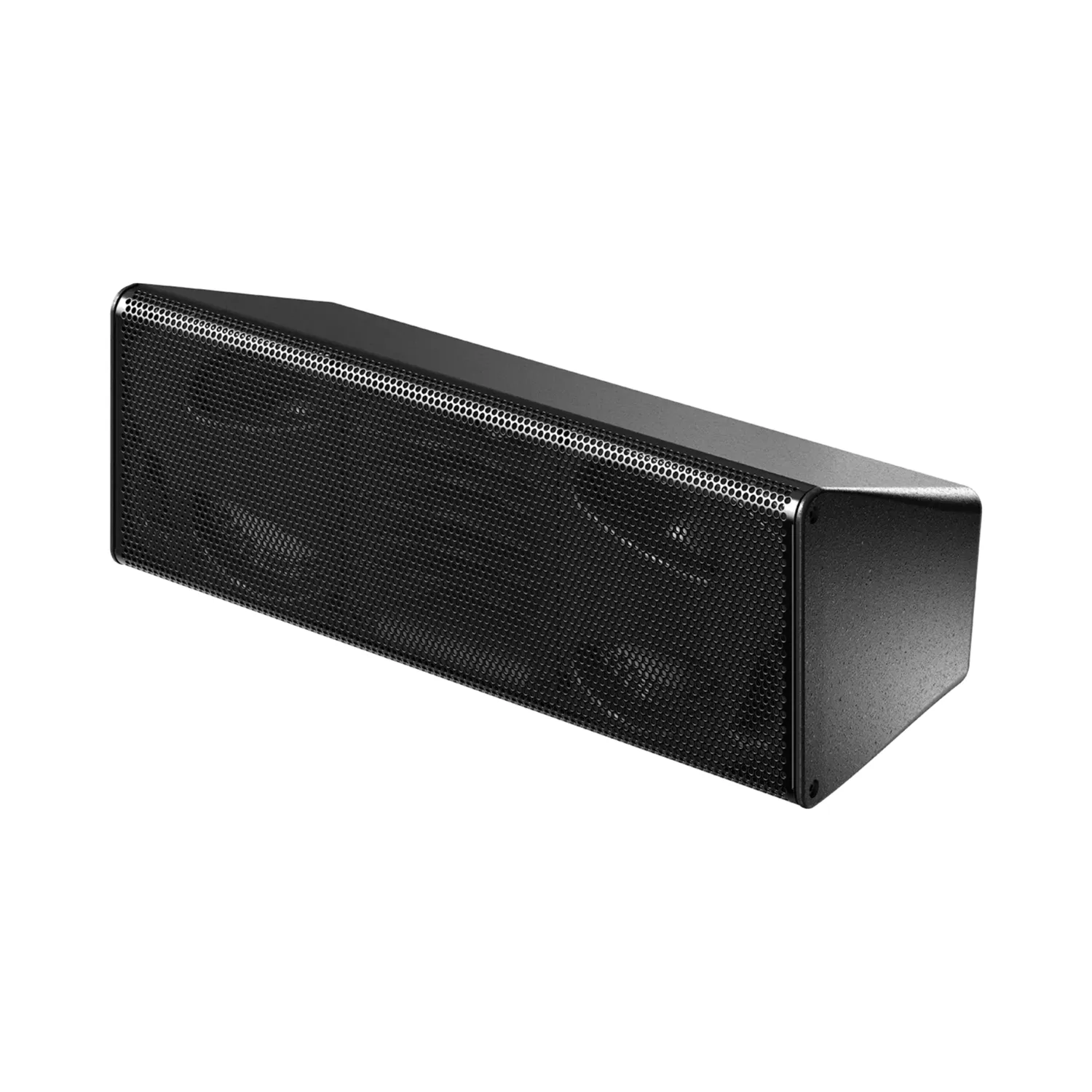

The d&b Audiotechnik 44S Loudspeaker is a passive 2-way loudspeaker featuring two 4.5” neodymium LF drivers and two 1.25″ HF dome tweeters mounted on a rotatable CD horn, offering a rotatable dispersion pattern of 90° x 30°.

d&b Audiotechnik 44S Loudspeaker

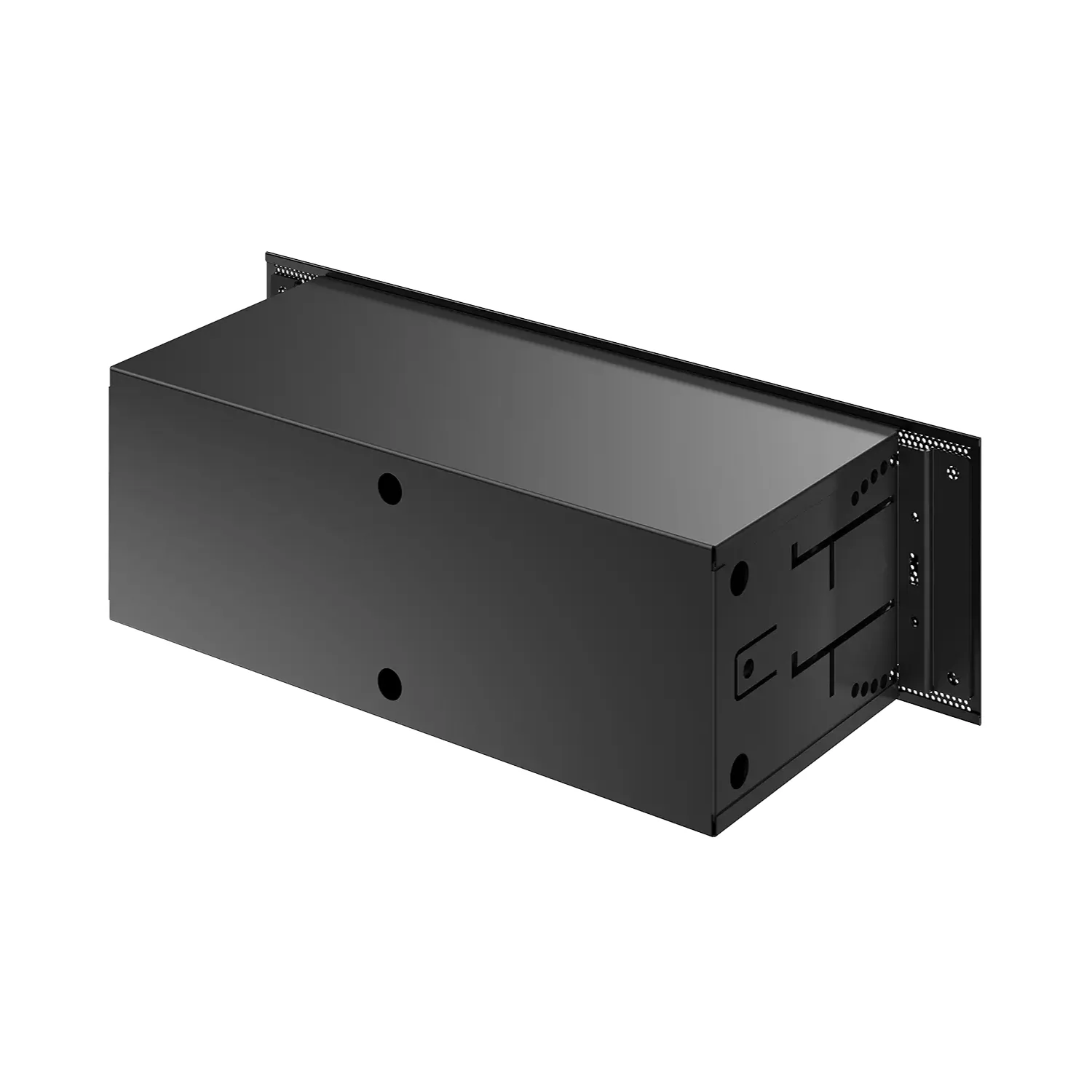

For flush mounting, the optional d&b Z5427.000 44S back box enables installation into ceilings or walls in either a horizontal or vertical position. The d&b Audiotechnik 44S Loudspeaker’s asymmetric cabinet shape allows for dispersion adjustment of +/- 20° in five-degree steps within the back box.

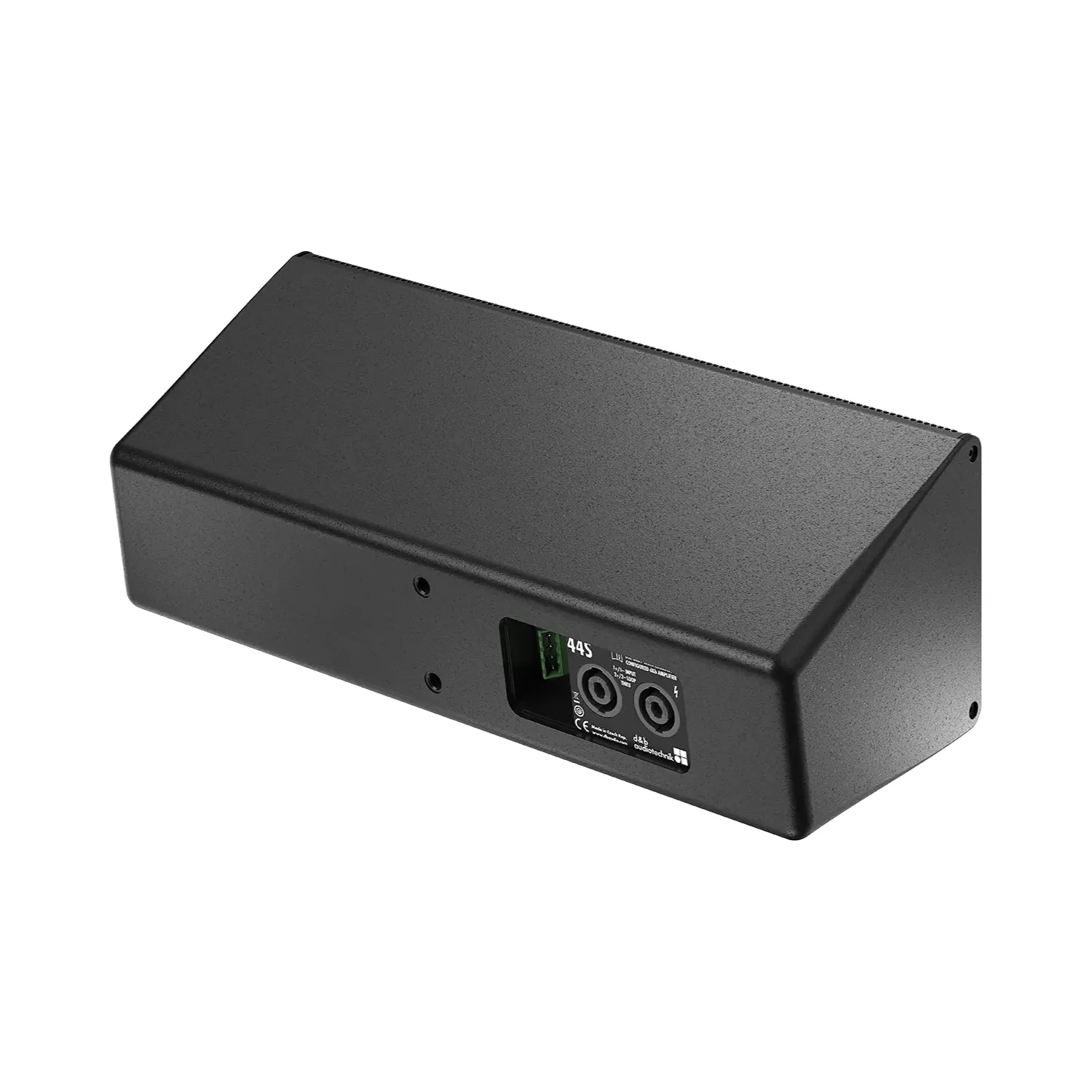

The loudspeaker functions as a standalone system or can be paired with actively driven d&b subwoofers. Constructed with an injection-moulded, impact-resistant paint finish, the cabinet’s front is protected by a sturdy metal grille. The back panel includes two M8 threaded inserts for various rigging accessories. The cabinet and most accessories are also available in the Special Colour (SC) option, customisable in any RAL colour.

Features

Components 2 x 4.5″, 2 x 1.25″
Dispersion 90° x 30° rotatable
SPLmax 123 dB

Specifications

Frequency response (-5 dB standard): 90 Hz – 17 kHz
Frequency response (-5 dB CUT mode): 150 Hz – 17 kHz
Max. sound pressure:
- with 10D: 121 dB
- with D20/5D/30D: 123 dB
- with D40/D80/40D: 123 dB
Cabinets per amplifier channel: 4
Loudspeaker data
- Configuration: Compact universal high-performance 2-way loudspeaker with an asymmetric cabinet shape
- Nominal impedance: 16 ohms
- Power handling capacity (RMS/peak 10 ms): 150/500 W
- Nominal dispersion angle (h x v): 90° x 30°
- Components:
  - 2 x 4.5″ drivers with neodymium magnets
  - 2 x 1.25″ dome tweeters mounted on CD horn
- Connections: 4-pin Phoenix Euroblock and 2 x NL4 M
Dimensions:
- Standard: 390 x 128 x 150 mm
- With Backbox: 480 x 140 x 180 mm
Weight: 3.6 kg (6.2 kg with Backbox)
