Harrison D510mx 500 Series Mixer Module

The Harrison D510mx is a two-slot mixer module for the D510r 500 Series rack, adding 10×2 analogue summing with pan and level controls, dual headphone outputs, and integration with optional Dante or USB cards for a flexible, portable Harrison mixing system.

Harrison D510mx

Harrison D510mx 500 Series Mixer Module

The Harrison D510mx is a mixer interface designed for the Harrison D510r 500 Series rack system, transforming it into a powerful 10×2 analogue summing mixer. Occupying two slots in the D510r chassis, the D510mx enables stereo mixdowns from the remaining eight 500 Series module slots along with two additional analogue inputs on slots 9 and 10. Each channel provides dedicated level and pan controls, delivering the classic weight, depth, and dimensionality of Harrison’s renowned analogue summing.

Beyond mixdown, the Harrison D510mx enhances monitoring with dual independent headphone outputs, each featuring a ‘blend’ control for balancing between the main mix and external sources. When paired with the D510dante card, these headphone mixes can also incorporate DAW returns or any connected Dante-enabled device.

Harrison D510mx

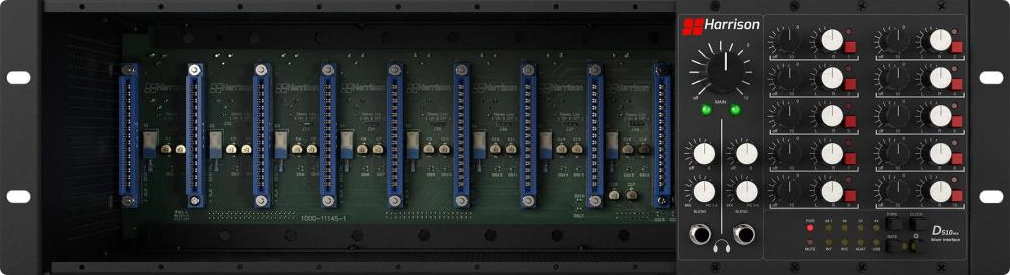

Compact and versatile, the Harrison D510mx combines with the D510r rack to create a portable yet professional-grade analogue mixing solution. Its modular design allows engineers to build a custom Harrison console, perfectly tailored to tracking, mixing, and hybrid workflows in the studio or on the road.

Features

  • Transforms the Harrison D510r into a 10×2 analogue summing mixer
  • Pan and level controls for each of the eight 500 Series module channels
  • Two additional analogue inputs (slots 9 and 10) included in mixdown
  • Dual independent headphone outputs with blend control
  • Dedicated main mix output control
  • Compatible with D510dante and D510usb interface cards for expanded connectivity
  • Compact 3U configuration when paired with the D510r chassis

Specifications

  • General:
    • Product type: Mixer module upgrade for Harrison D510r
    • Mounting: Attaches to the front of the D510r and provides a mixing interface
    • Headphone outputs: 2
  • D510mx inputs:
    • Minimum gain: ≤ −81 dB
    • Noise A-weighted at minimum gain: < −87 dBu
    • Unity gain: 0 dB
    • THD+N, 1 kHz 10 dBu at mid gain: < 0.003%
    • Noise A-weighted at mid gain: < −87 dBu
    • Maximum gain: 11.5 dB
    • THD+N, 1 kHz 0 dBu at maximum gain: < 0.003%
    • Noise A-weighted at maximum gain: < −85 dBu
    • Maximum input level: +24 dBu
    • Frequency response: 20 Hz to 20 kHz ±0.25 dB
    • Pan law: 3 dB
  • D510dante inputs (optional interface installed):
    • Maximum input level: +24 dBu
    • Frequency response: 20 Hz to 20 kHz ±0.25 dB
  • Main outputs:
    • Maximum output level: +24 dBu
    • Minimum gain: ≤ −85 dB
    • Noise A-weighted at minimum gain: < −97 dBu
    • Unity gain: 0 dB
    • THD+N, 1 kHz 10 dBu at mid gain: < 0.003%
    • Noise A-weighted at mid gain: < −87 dBu
    • Maximum gain: 9.5 dB
    • THD+N, 1 kHz 10 dBu at maximum gain: < 0.003%
    • Noise A-weighted at maximum gain: < −78 dBu
  • Headphone outputs:
    • Maximum output level: +21 dBu
    • Minimum gain: ≤ −78 dB
    • Noise A-weighted at minimum gain: < −87 dBu
    • Maximum gain: 0 dB
    • THD+N, 1 kHz 20 dBu at maximum gain: < 0.004%
    • Noise A-weighted at maximum gain: < −82 dBu
  • Signal metering:
    • LED signal presence: 3× tri-colour
    • Green threshold: ≥ −14 dBu and < 4 dBu
    • Orange threshold: ≥ 4 dBu and < 18 dBu
    • Red threshold: ≥ 18 dBu
  • Connectors:
    • TRS stereo headphone outputs: 2

User Manual

Download the User Manual in PDF format.

Ordering

SKU HD510MX500 Categories , ,

$1,249 Inc GST

Seen a better price? Click Here!
We will beat any advertised price on in stock items
